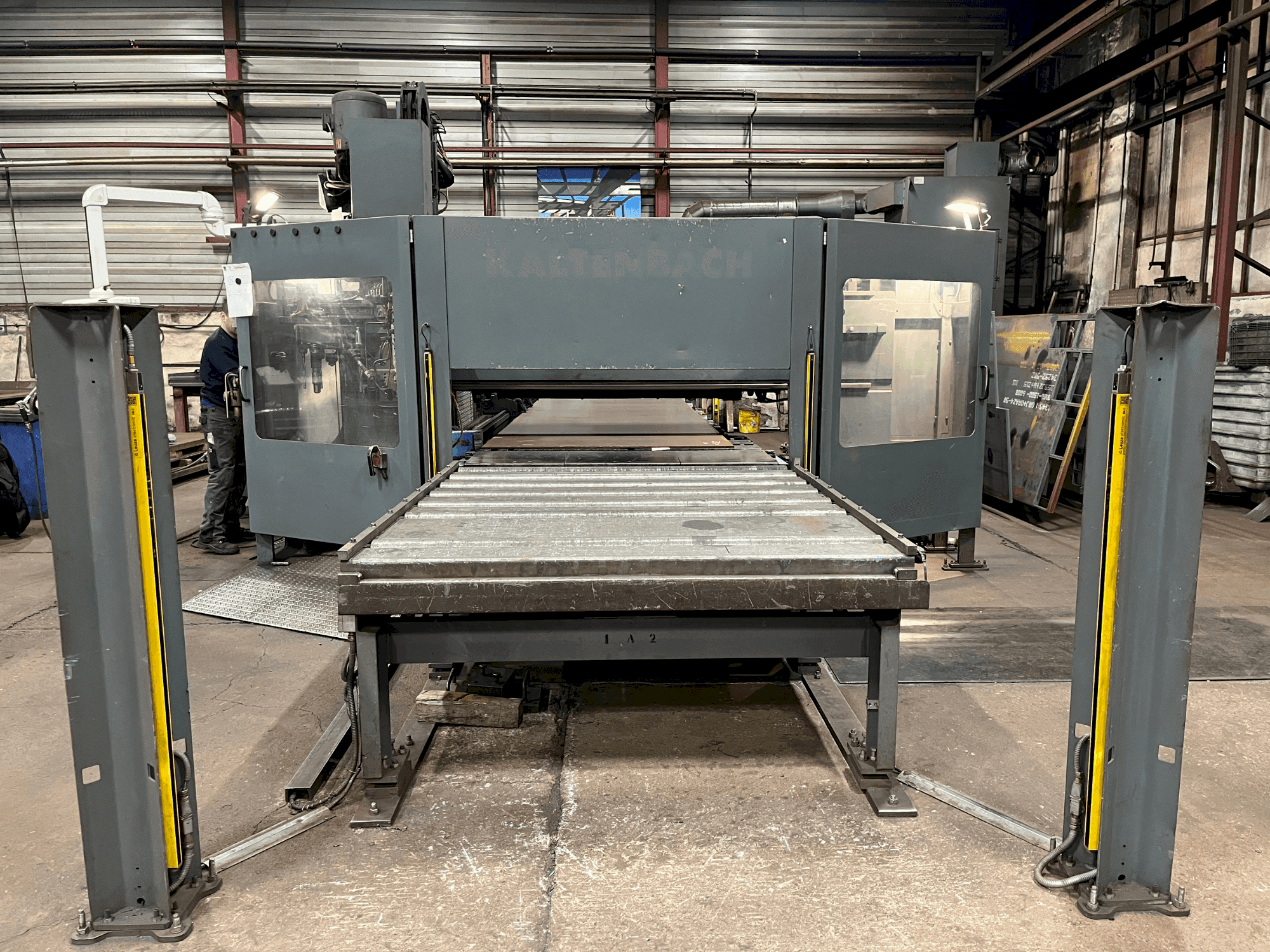

Front view of KALTENBACH KF 1606 machine

Gracias por su visita

Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.

Ver todas las máquinas similares

Ver máquinas similares

KALTENBACH KF 1606

Galería de fotos

KALTENBACH - KF 1606DE-DRI-KAL-2008-00001

Vendida

¿Tiene más preguntas? ¡Contáctenos!

José María García

+34 601 158 008

j.garcia@gindumac.com

Contacta por Whatsapp

GINDUMAC
Productos
Máquinas herramienta
Kaltenbach KF 1606 Flat and Plate Processing System

Mostrar en idioma original

This Kaltenbach KF 1606 Flat and Plate Processing System, for drilling and flame cutting of flat steel and sheet metal, was manfactured in the year 2008 in Germany. It comes with a bore diameter of 6 - 40 mm, a floor-plate width of 1.600 mm and a floor-plate length of 6.000 mm. The max. workpiece weight is 5000 kg and sheet metal can be processed from 6 to 60 mm thickness. The boring spindle runs with 150 - 2000 rpm and has 26 kW drive. In addition the machine has an automated tool changer with 6 magazin slots. With the transport system featuring feed and outfeed roller conveyors sheet metal lenght up to 6000 mm can be fed and up to 2000 mm can be outfed. Next to the standard equipment the machine comes with several extra options: Contour Marking, Tear plate processing, Plasma cutting system Kjellberg Hi Focus 280i and a Dedusting system for the plasma cutting system See original equipment list as PDF (German) attached.

Resumen

marca: KALTENBACH
año: 2008
MODELO: KF 1606
tipo de aplicación: Otras máquinas herramienta
Ubicación: Alemania
tipo de máquina: Taladradora (Metal)

Información técnica - KALTENBACH KF 1606

Dimensiones

Profundidad de la máquina: 5900 mm
Altura de la máquina: 2900 mm
Peso de la máquina: 10000 kg

Información adicional

Additional equipment

Automatic tool change Magazine 6 places
Material transport and length measurement with hydraulic collet: Clamping force 14000 N
Compressed air connection 8 bar
Drive power drilling drive 26 kW
Hydraulic unit 4 kW
Feed roller conveyor for sheet lengths up to max. 6000 mm
Outfeed roller conveyors for sheet lengths up to max. 2000 mm

Machine Benefits

Qualitative Machine Benefits

Working height above floor 800 mm

Technical Machine Benefits

Sheet width 220 - 160 mm
Sheet length 500 - 6000 mm
Sheet thickness 6-60 mm
Unit weight max. 5000 kg
Prefabricated sheet metal parts: min. 130 x 130 mm / max. 1600 x 2000 mm
Vertical drilling unit (y-axis)
Drilling diameter 6-40 mm
Spindle speeds 150 - 2000 rpm
Rapid feed/rapid return 0-2000 mm/min // drilling spindle feed 0-2000 mm/min // drill spindle positioning rapid traverse 24000 mm/min
Automatic tool change magazine 6 places

Extra Information

Availability from August

*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.

Documentos

Kaltenbach KF 1606 (2008) - Tech Specs (GERMAN).pdf
