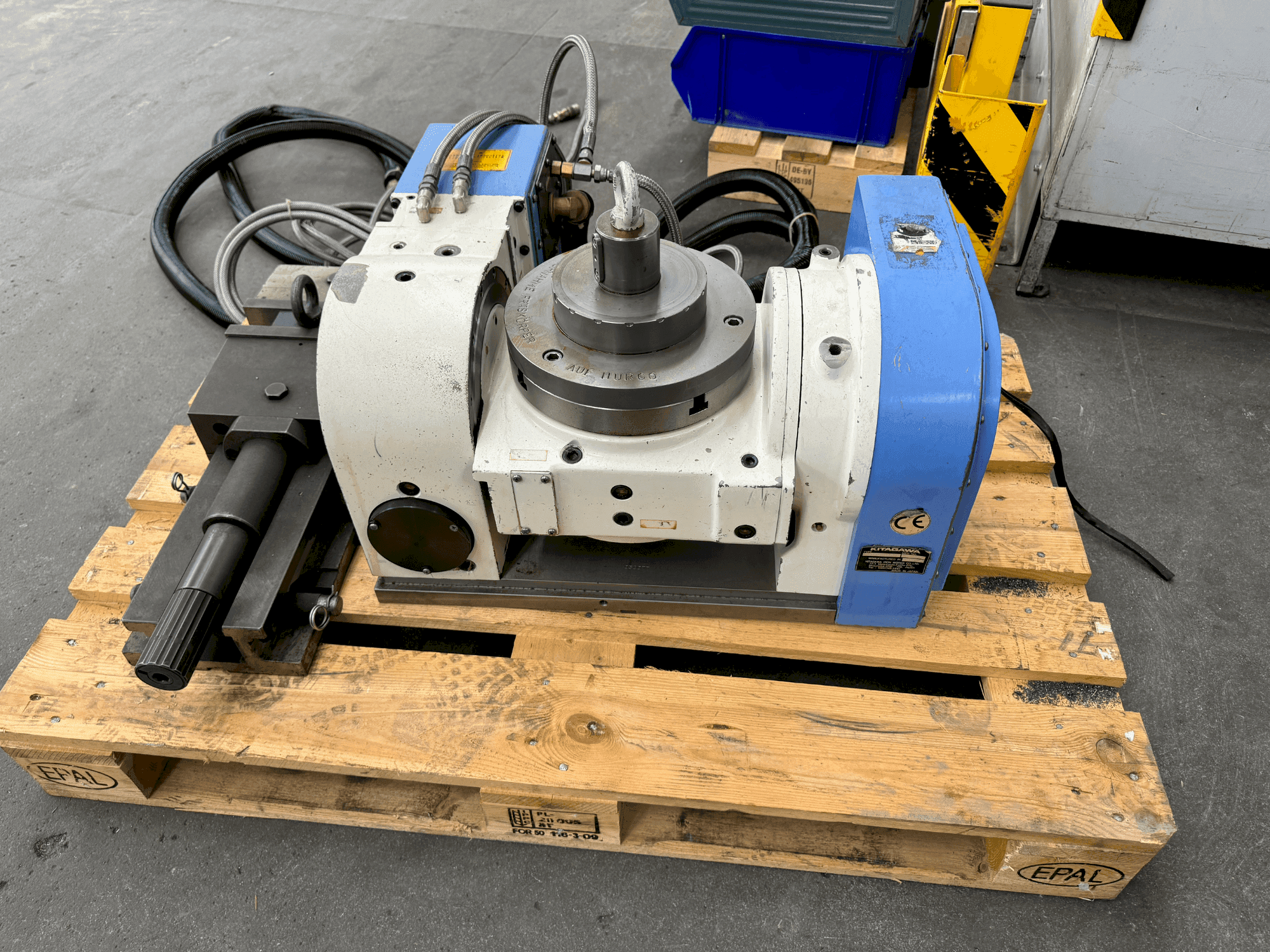

Front view of KITAGAWA TT251 HYY01 - NC ROTARY TABLE (2005) machine

Gracias por su visita

Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.

Ver todas las máquinas similares

Ver máquinas similares

KITAGAWA TT251 HYY01 - NC ROTARY TABLE

Galería de fotos

KITAGAWA - TT251 HYY01 - NC ROTARY TABLEDE-MIL-KIT-2005-00001

Vendida

¿Tiene más preguntas? ¡Contáctenos!

José María García

+34 601 158 008

j.garcia@gindumac.com

Contacta por Whatsapp

GINDUMAC
Productos
Máquinas herramienta
Used NC Rotary Table KITAGAWA TT251 HYY01 (2005) for sale | GINDUMAC.COM

Mostrar en idioma original

This KITAGAWA TT251 HYY01 - NC ROTARY TABLE was manufactured in 2005 in Japan. It is a high rigidity tilting table to suit 5 axis machining centres on large work pieces with heavy cutting. This NC rotary table stands out for high accuracy and the minimum size in its class. As twin axis table with rotating and tilting axis it is the perfect extension to convert a 3-Axis Machining Centre into a 5-axis machining solution to provide a 4th axis NC rotation axis and a 5th axis tilting of the positioning axis in conjunction with the plain text software. Thus, 5-axis simultaneous can be enabled in conjunction with the ISO code software and corresponding programming station of the machine. This KITAGAWA can be purchased with a HURCO VMX 50/40T Vertical Machining Centre (YOM: 2005, Location: Germany) to extend it from 3 to 5 axes. Contact us anytime for further details!

Resumen

marca: KITAGAWA
año: 2005
MODELO: TT251 HYY01 - NC ROTARY TABLE
tipo de aplicación: Otras máquinas herramienta
Ubicación: Alemania
tipo de máquina: Máquina herramienta

Información adicional

Machine Benefits

Qualitative Machine Benefits

High rigidity tilting table to suit 5 axis machining centres on large work pieces with heavy cutting
High accuracy
This kitagawa can be purchased with a hurco vmx 50/40t vertical machining centre (yom: 2005, location: germany) to extend it from 3 to 5 axes
Minimum size in its class
Twin axis table with rotating and tilting axis
Perfect extension to convert a 3-axis machining centre into a 5-axis machining solution

Technical Machine Benefits

4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
5-axis simultaneous in conjunction with the iso code software and corresponding programming station
Table diameter: ø250
Center height 225 mm
Spindle passage 70 mm
Tilting angle range: -35°～+110°
Clamping torque (n･m) (at pneumatic 0. 45mpa /hydraulic 3. 5mpa) // rotating axis: 900 // tilting axis: 1200
Centre hole dia (mm): φ100h7

*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
