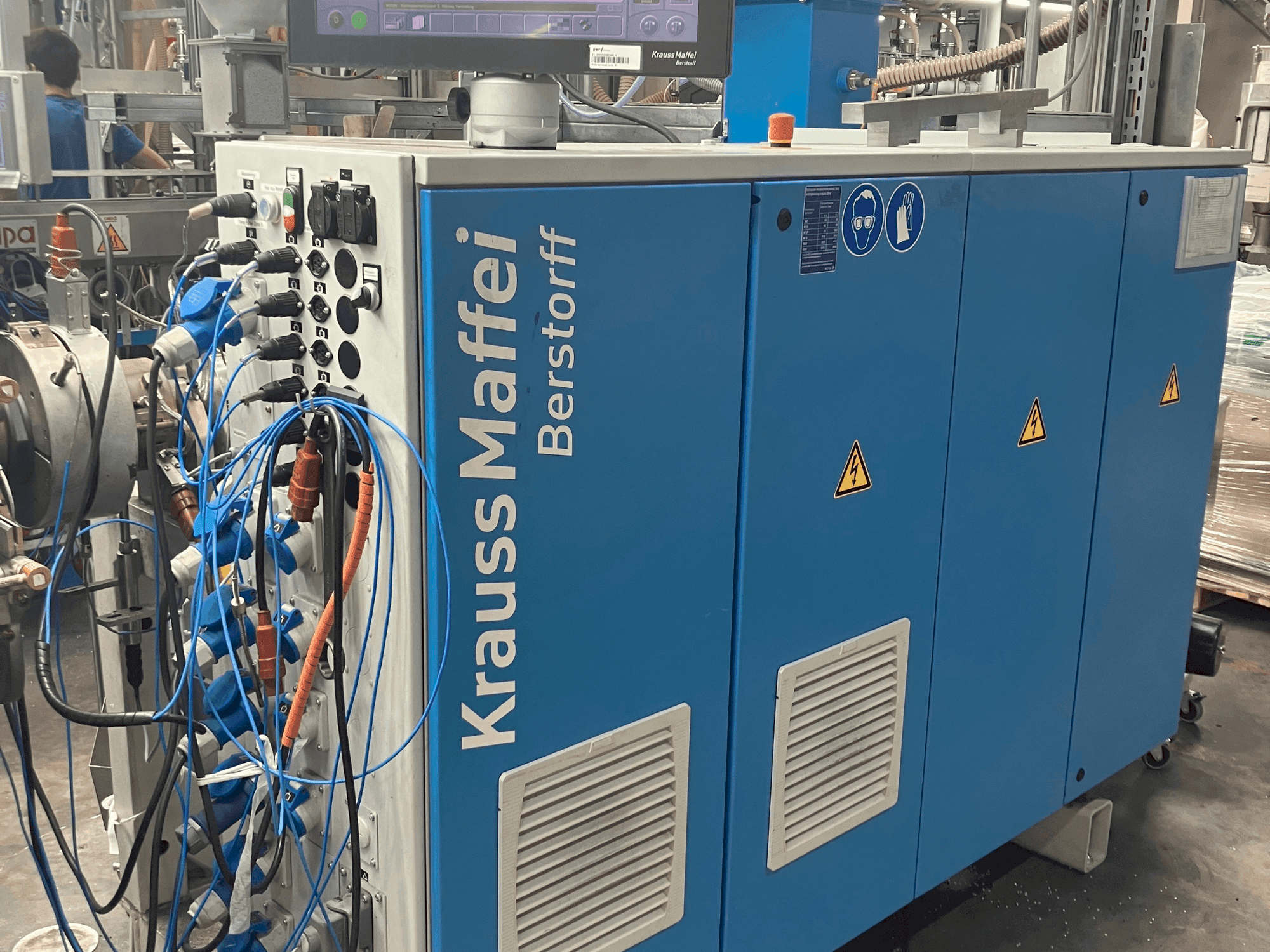

Krauss Maffei - KME 45 XSDE-EXT-KRA-2025-00001

Main drive:

• Rated power: 23 kW

• Gear ratio: 1:12.4

Screw:

• Diameter: 45 mm

• Length: 1350 mm

• Speed range: 20–200 rpm

Cylinder:

• Heating/cooling zones: 5

• Max. air flow with fan cooling: 5 × 630 m³/h

• Max. installed cylinder heating capacity: 10 kW

Dimensions and weight:

• Extrusion height: 1000 mm

• Length including adapter: 2120 mm

• Width including control panel: 1125 mm

• Height including dosing unit and hopper: 1960 mm

• Net weight including control cabinet: approx. 1100 kg

Connection data:

• Cooling water requirement: approx. 0.6 m³/h

• Tool heating zones (number/power):

  • Pipe extrusion: 4 × 10 kW

  • Profile extrusion: 5 × 3.6 kW

• Max. total connected load:

  • Pipe extrusion: 90 kW

  • Profile extrusion: 76 kW

Material feed:

• Hopper volume: 0.1 m³
