Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
KUKA - Palletizing SystemDE-ROB-KUK-2007-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Equipamiento de automatización
- KUKA Palettieranlage 600260060 Robot

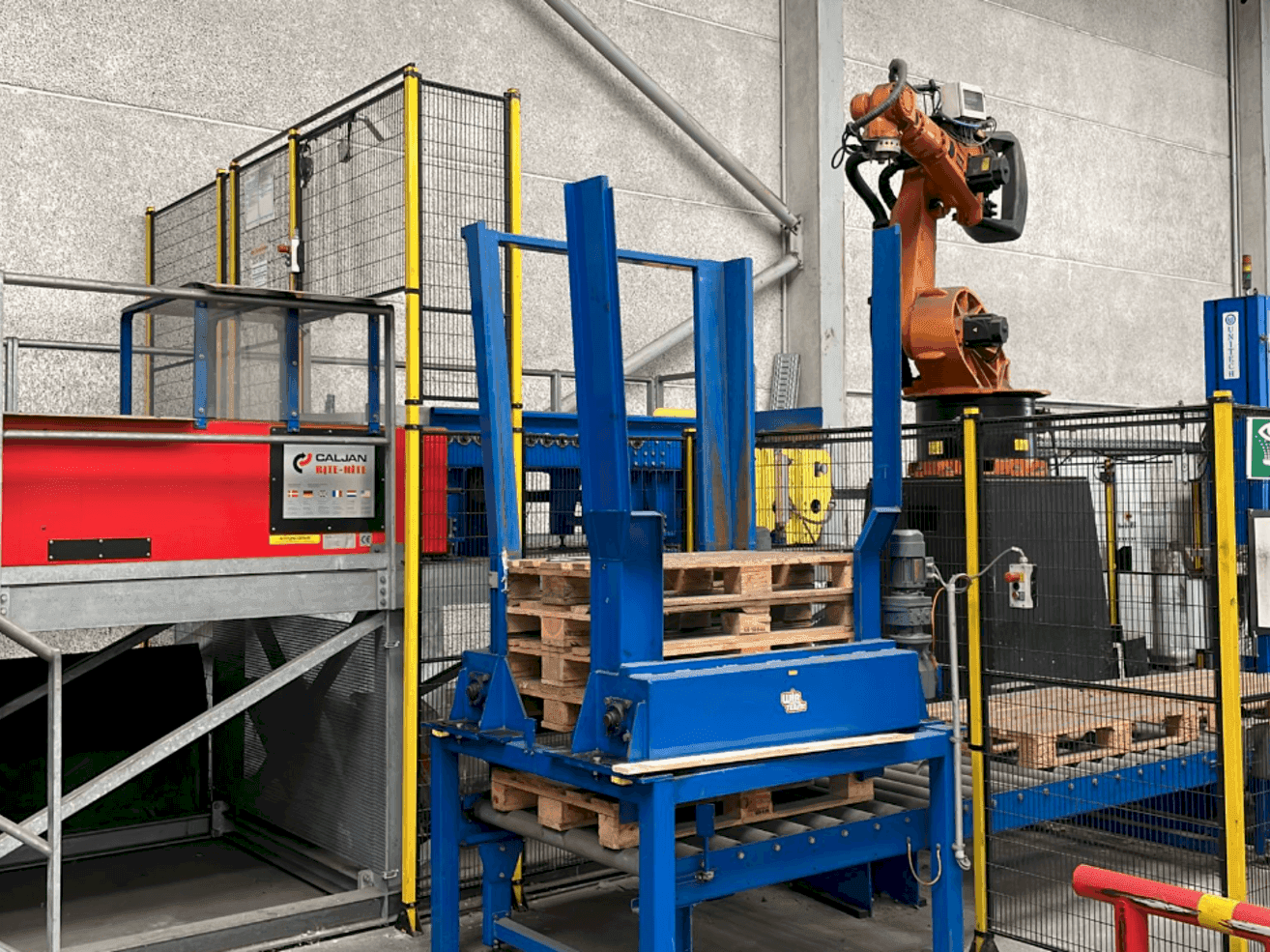

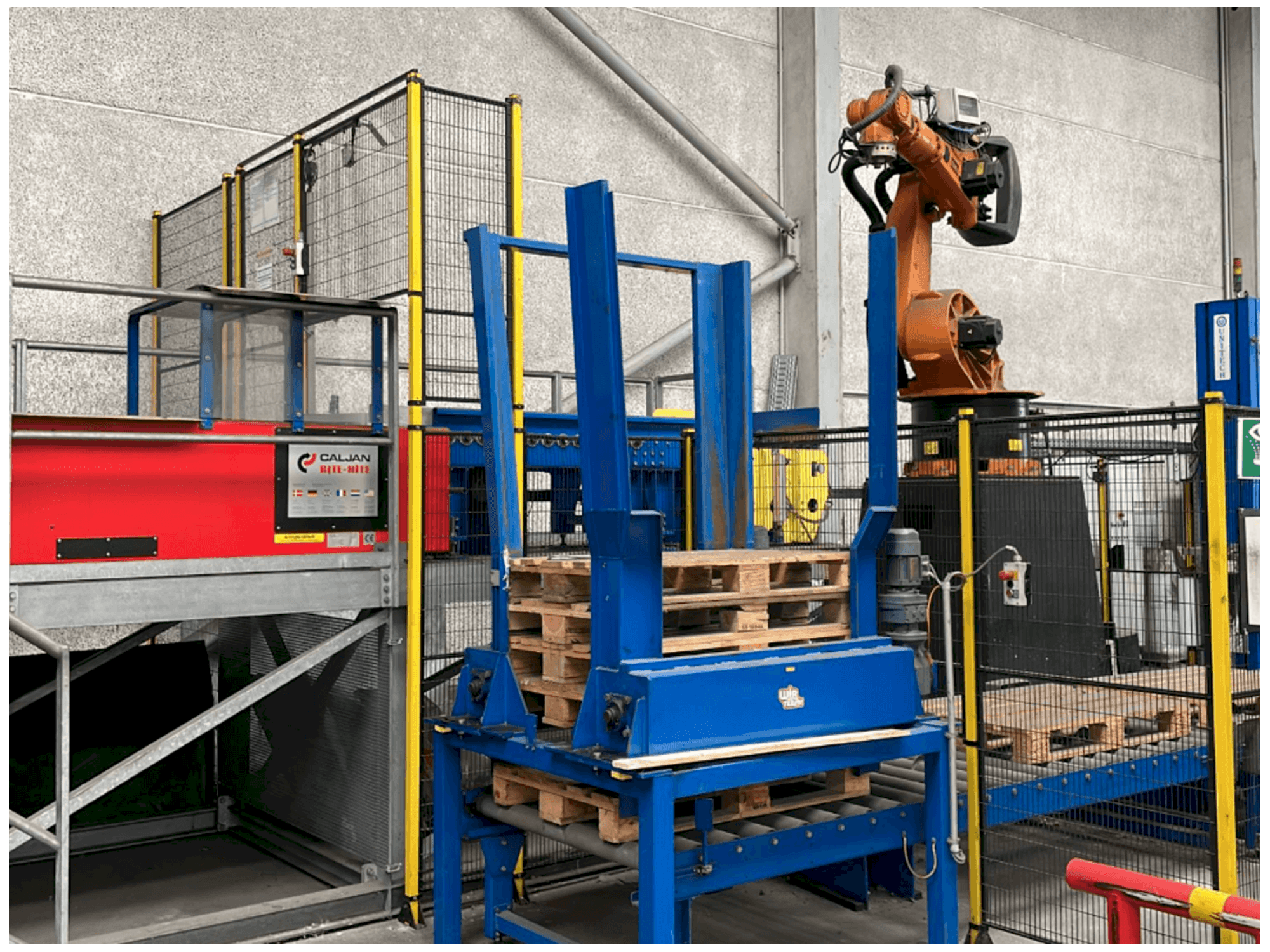

This KUKA Palletizing System was manufactured in the year 2007 by emt automation. The system is designed for the automatic palletizing of carton and bagged goods. Handling is performed by a KUKA robot equipped with a tool changing system so that the products can be gripped with a fork gripper (bag) and a lifting gripper (carton). Depending on the product selection at the operator terminal, the corresponding robot tool is automatically coupled. The products are placed manually on the telescopic conveyor belt and and provided to the robot on the removal conveyor. The pallets, provided in an empty pallet magazine, are fed into the system. Optionally, the filled pallets are wrapped with a film and automatically transported out of the system. See original project description as PDF (German) attached below.
Resumen
- marca: KUKA
- año: 2007
- MODELO: Palletizing System
- tipo de aplicación: Otros equipos de automatización
- Ubicación: Alemania
- tipo de máquina: Sistema de manipulación de palés
Información adicional
Machine Benefits
Qualitative Machine Benefits
- The system is designed for the automatic palletizing of carton and bagged goods.
- The handling is carried out by a kuka robot equipped with a tool change system so that the products can be gripped with a fork gripper (bag) and a lifting gripper (carton).
- Once the product has been selected on the operating terminal, the corresponding robot tool is automatically coupled.
- The products are manually deposited on the telescopic conveyor and placed on the removal conveyor for the robot.
- The pallets provided in an empty pallet magazine are fed into the system.
- Optionally, the filled pallets are wrapped with a film wrapper and automatically conveyed out of the system.
Technical Machine Benefits
- System components - platform with telescopic conveyor - levelling section - removal conveyor - empty pallet magazine - pallet order technology - safety light barriers - robot
- Kuka kr150l1 50 robot with krc 2 controller performs the handling
- The system is operated via the siematic op170b and the kuka control panel (kcp)
- All preconfigured palletizing patterns can be palletized
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
