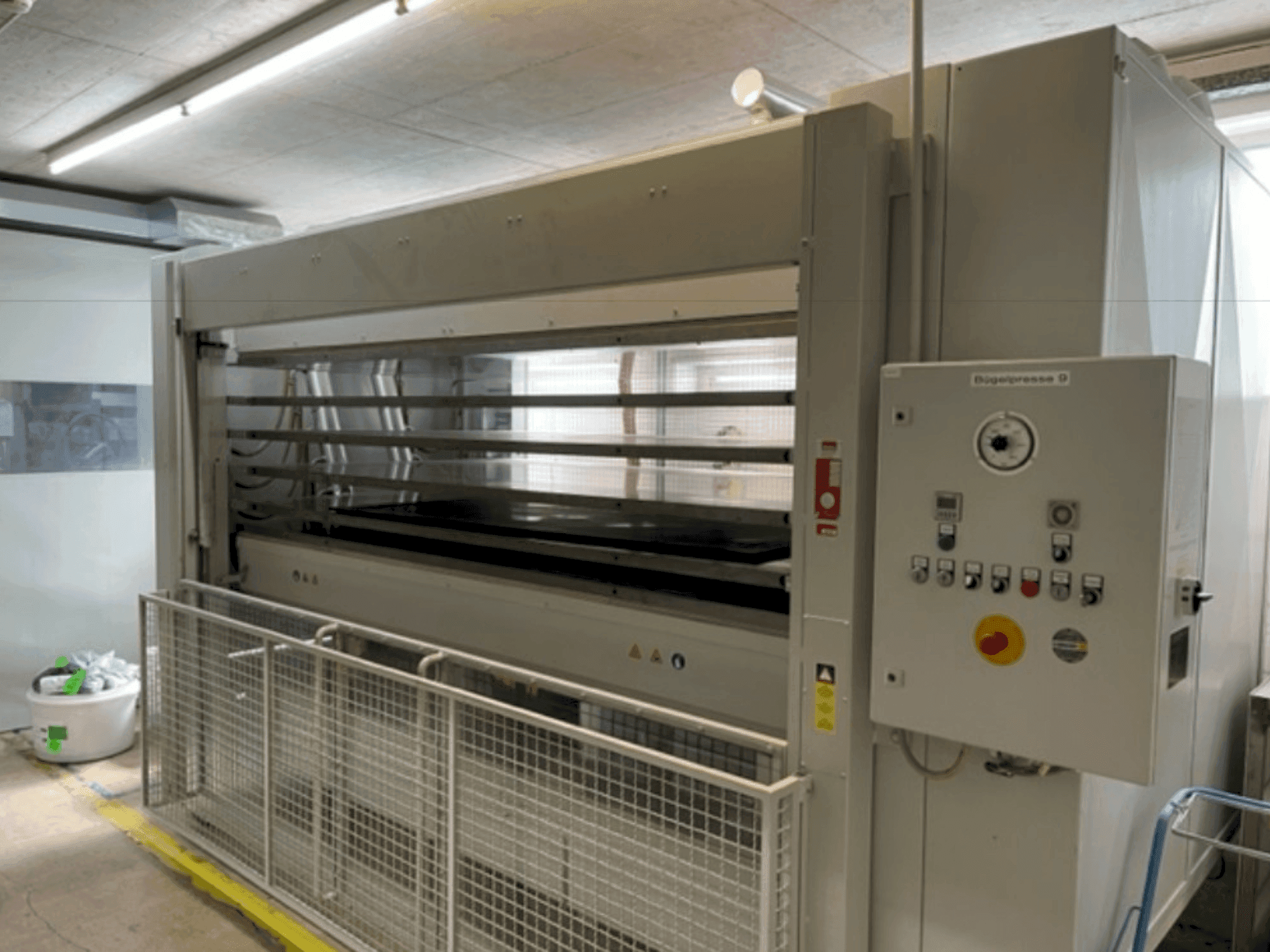

LANGZAUNER - LZT 80 /5-SODE-OTH-LAN-2013-00001

Additional equipment

• Control Cabinet Key: 1
• Operating Instructions in German: 1

Extra Information

Press Press Power: 800 kN Press Area: 3100 x 1600 mm Specific Pressure: Approximately 16 N/cm² Working Height: Approximately 1310 mm Hydraulics Maximum System Pressure: Approximately 200 bar Number of Press Cylinders: 8 (switchable to 4) Press Cylinder Diameter: EW 80 mm Stroke of Press Cylinders: 600 mm Tank Capacity: Approximately 90 liters Hydraulic Oil: Hyspin AWS 32 Opening Speed: Approximately 40 mm/s Closing Speed: Approximately 20 – 30 mm/s Heating / Cooling Maximum Operating Temperature: 200 °C Number of Heating/Cooling Circuits per Heating Plate: Connections on the end face 3/4 Fluid Quantity for Press (without cooling unit): Approximately 160 liters Electrical Total Power Consumption: Approximately 9.3 kW Pump Drive Power: 7.3 kW Operating Voltage: 3x 400V + N Operating Current: 29A Frequency: 50 Hz Protection Class of Electrical System: IP54 Short Circuit Protection for Installation: 32A Installation Connection Cross Section: 6 mm²
