➤ Used LVD Electra-FL 3015 For Sale | gindumac.com

Mostrar en idioma original

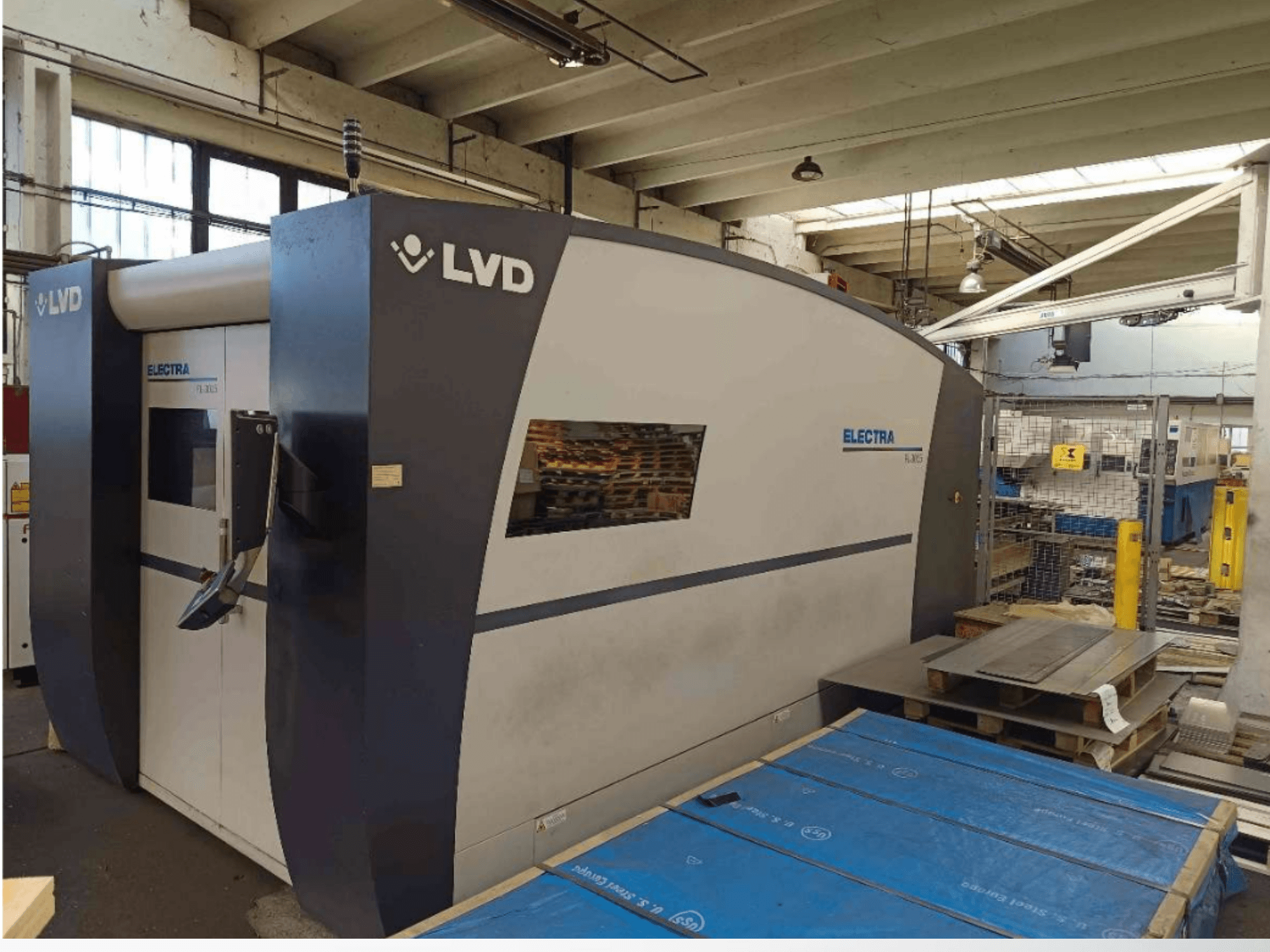

This 3-axis LVD Electra-FL 3015 was manufactured in 2015 and features a 4kW fiber laser by Rofin/Coherent. It includes automatic shuttle tables, a cutting head with lens systems, and automatic functions for nozzle cleaning, height calibration, and gas selection. The machine supports a maximum sheet size of 3050 x 1525 mm and offers high-speed positioning. If you are looking to get high-quality cutting capabilities, consider the LVD Electra-FL 3015 machine we have for sale. Contact us for more information.

Resumen

marca: LVD
año: 2015
MODELO: Electra-FL 3015
horas de producción: 15700
tipo de aplicación: Corte
Ubicación: Hungría
tipo de máquina: Máquina de corte láser de fibra

Información técnica - LVD Electra-FL 3015

Dimensiones

Profundidad de la máquina: 4895 mm
Altura de la máquina: 2250 mm
Longitud de la máquina: 11000 mm
Peso de la máquina: 15000 kg

Recorrido

Recorrido eje X: 3080 mm
Recorrido eje Y: 1555 mm
Recorrido eje Z: 100 mm

Información adicional

Production Hours:
Machine: 15700 hours
Lasersource Laser On Time: 9980 hours
Type: Sinumerik 840Dsl / B&R APC 910
Operating System: Windows® 7 Embedded
Memory Capacity: 4GB RAM / 60GB SSD
Screen: 19” LCD Touch Screen
Network Card: 1Gbit/sec RJ45 Connection
USB Interface: 2 x USB 3.0 on Front Panel
Max. Positioning Speed X-Y: 170 m/min
Max. Positioning Speed Z: 30 m/min
Smallest Programmable Increment: 0.01 mm
Positioning Accuracy: 0.05 mm
Repeatability Accuracy: 0.025 mm
Maximum Sheet Size: 3050 x 1525 mm
Maximum Sheet Weight: 700 kg
Automatic Shuttle Tables
Cutting Head with 5” or 7.5” Lens System
Automatic Nozzle Cleaning and Height Calibration
NC-Focus, Automatic Focal Point Adjustment
Cutting Head with Crash-Protection System
Capacitive Height Sensing
Automatic Cutting-Gas Selection: Oxygen, Nitrogen, Air
Automatic Gas Pressure Control with Servo Valve
Automatic Sheet-Referencing (Laser Eye, Capacitive System)
High Pressure Nitrogen Cutting
TPC Total Power Control, Adapting the Laser Power Relative to the Speed
Chiller & Extraction Filter Included
Light Guards Protecting the Area Around the Shuttle Tables
19” Touch Screen with New User-Friendly Touch®-L Interface
Automatic Start-Up / Shut Down
Tele-Service Available
Built According to the European Safety Regulations Provided with CE-Mark
Automation Ready

*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
