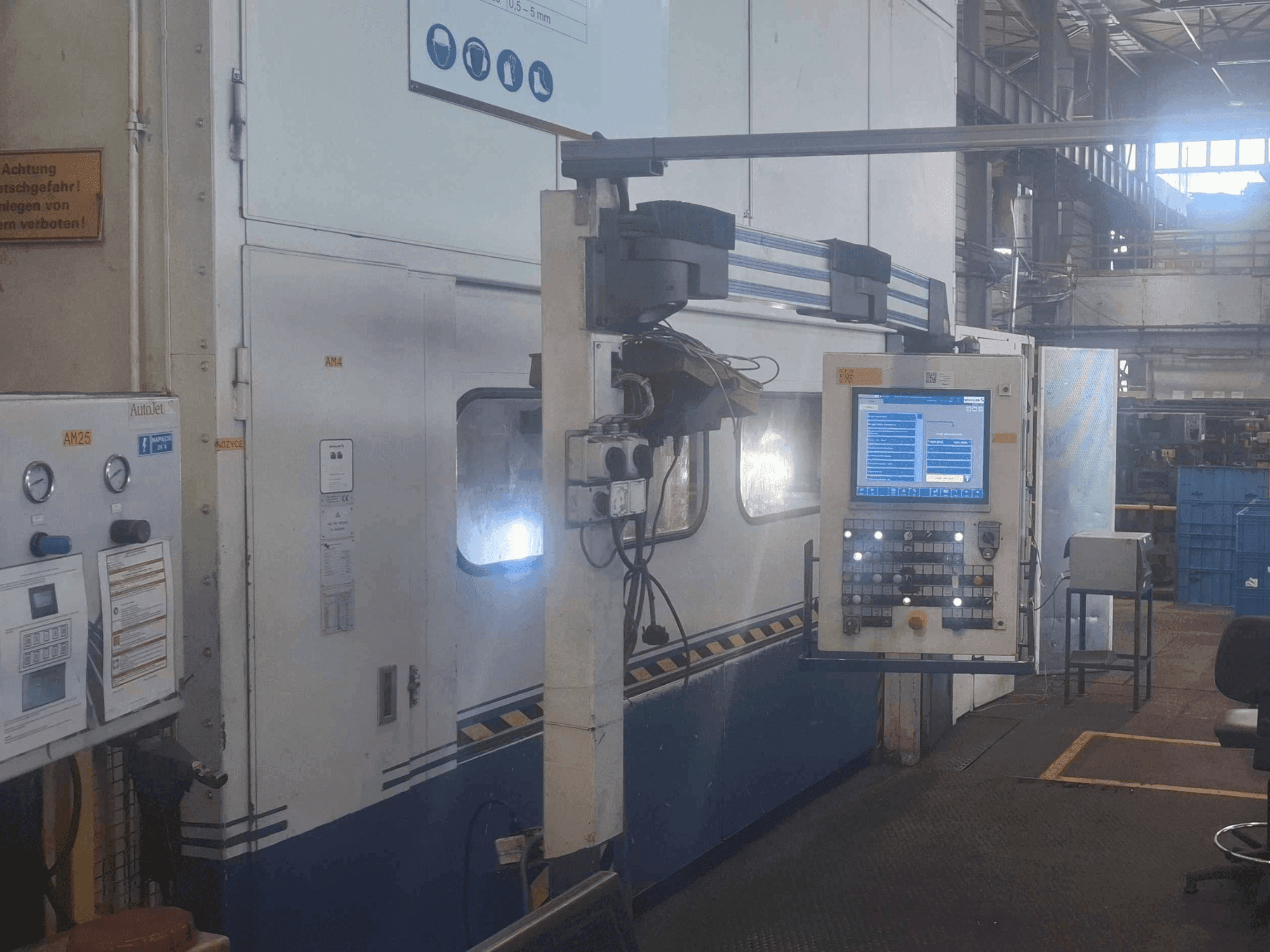

Müller - HUQ 630.30PL-STA-MUL-2001-00001

Additional Equipment

Coil Feeding

• Material: Steel / Aluminium

• Coil feed height: 380 mm (from bolster)

• Coil width (crosswise): 60–600 mm

• Coil thickness: 0.6–4.0 mm

• Coil outer diameter: max. 1800 mm

• Coil inner diameter: 508 mm

• Coil weight: max. 6 t

• Coil length (in flow direction): 0–9999 mm

Extra information

Main Drive

• Type: Eccentric press

• Stroke Rate: 15–60 strokes/min

• Stroke Length: 57–300 mm

Workpiece

• Nominal Force: 6300 kN

• Slide Adjustment: 200 mm

• Shut height: 680 mm

Tools

• Die clamping (lower): Hydraulic

• Die clamping (upper): Manual hydraulic (Quick clamp upper die 60 ± 0.5)

• Side distance between columns: 3000 mm

Machine-Specific Data

• Scrap outlet through bolster: Steel and aluminium (max. 290 mm diagonal)
