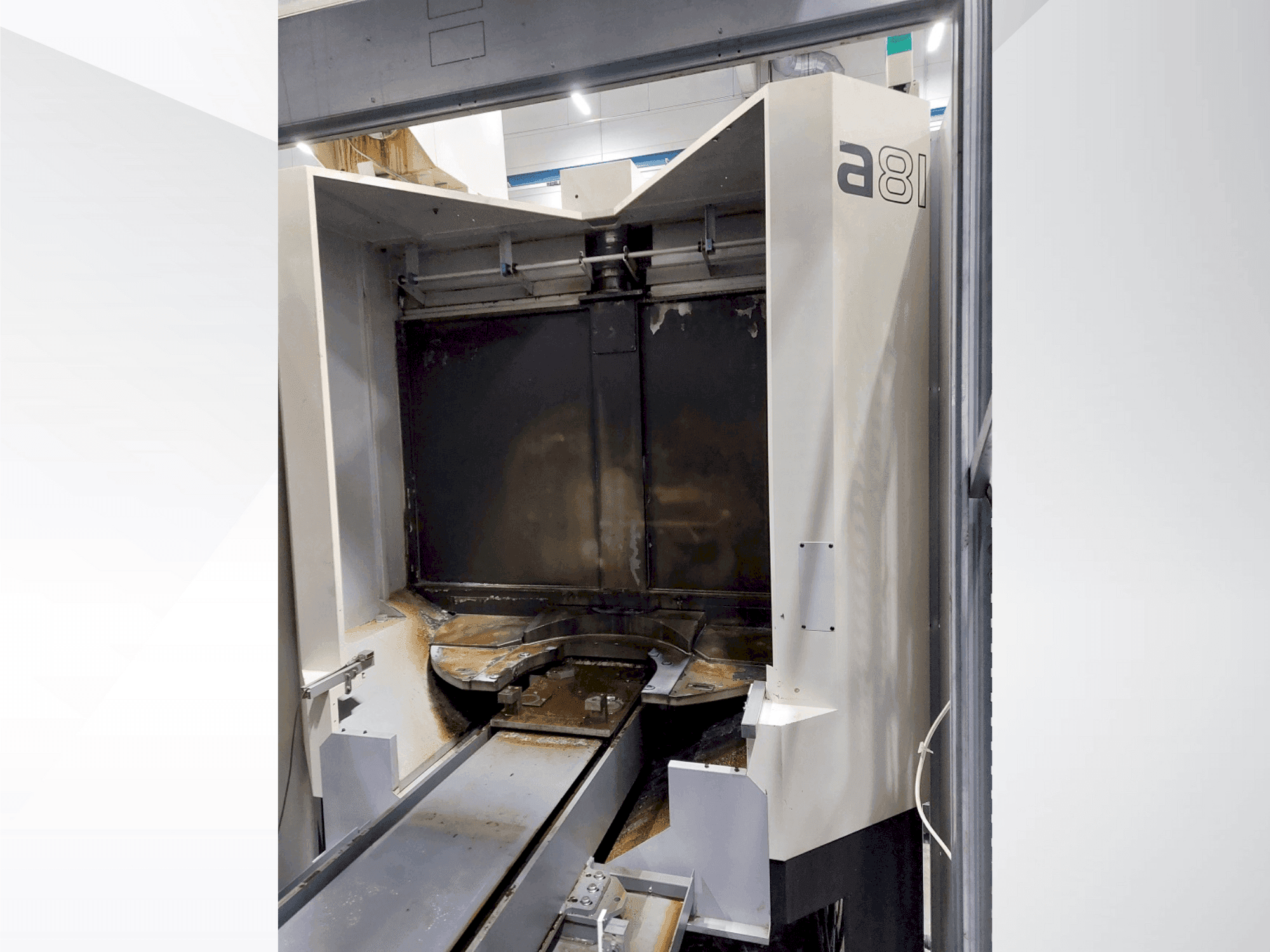

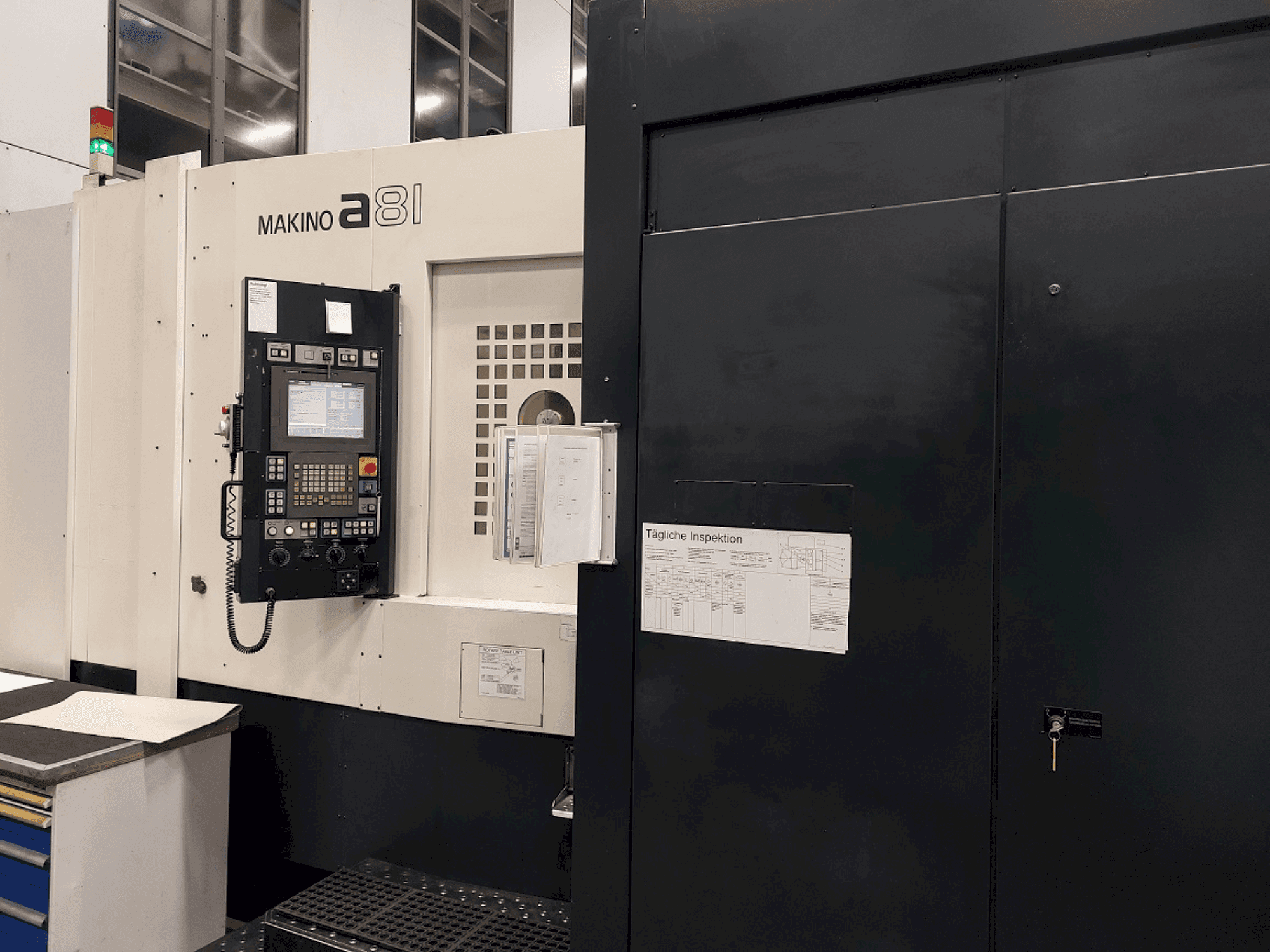

Makino - a81DE-MIL-MAK-2008-00002

Additional equipment

• Spindle cooling
• Tank system with Knoll compact band filter, 3200 liters
• Coolant supply through the spindle
• Oil mist extraction
• Scraper belt conveyor
• Conversion kit for stand-alone operation (currently used as a system machine)

Machine Benefits

Technical Machine Benefits

• Transverse movement (x-axis) of the column: 900 mm
• Height adjustment (y-axis) of the spindle unit: 800 mm
• Longitudinal movement (z-axis) of the table: 1020 mm
• Permissible swivel diameter in the working area: 1000 mm
• Max. Swiveling height from pallet surface: 1300 mm
• Pallet size: 630 x 630 mm
• Pallet – nc – rotary table with 4th nc axis
• Input resolution: 0. 001°
• Positioning accuracy: ± 3 arcseconds
• Tool magazine with 242 storage slots

Extra Information

Power Supply 400 V, 3-phase AC, 50 Hz Power rating: 72 kVA Control System Options for 48 zero points and Custom Macro B Tool life monitoring Tool breakage detection Adaptive feed control Compressed air through the spindle Knoll compact band filter, 3200 liters Magnetic separator Double-switching filter for IKZ Coolant supply through the spindle Compressed air through the spindle Oil mist extraction Scraper belt conveyor Control System: Makino Pro5 Options for 48 zero points and Custom Macro B Tool life monitoring Tool breakage detection (parallel to main operation) Adaptive feed control Conversion Kit for Stand-Alone Operation (Currently used as a system machine (FFS/FMS)) Pallet changer with placement of 2 pallets in alternating cycles onto a station positioned outside the working area Pallet holder rotatable, indexed at 90° intervals, 0-position electronically monitored Coding for automatic program call when inserting the pallet Pallet storage station secured with a protective device and electrical interlock
