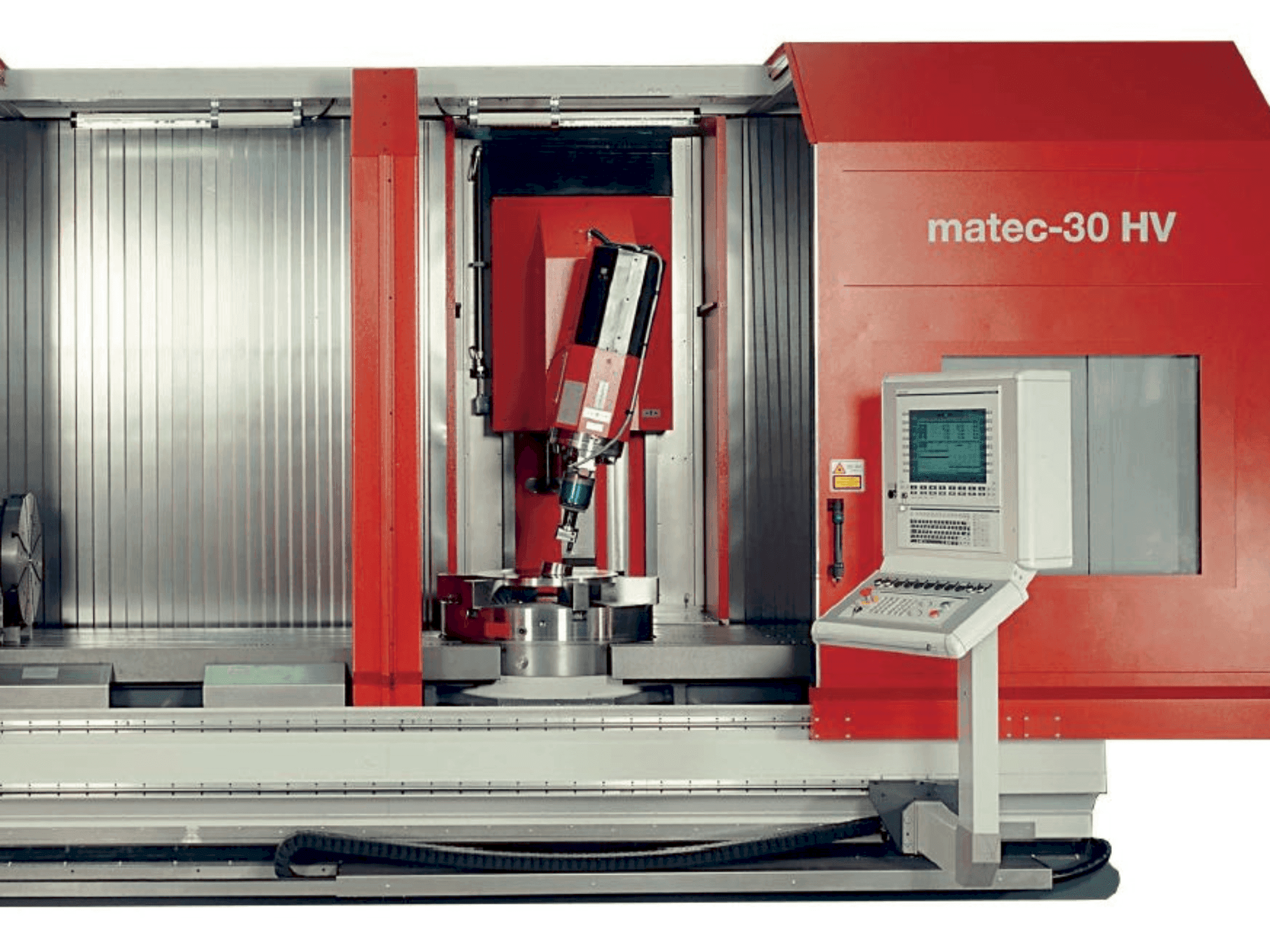

Matec - 30 HVSI-MIL-MAT-2012-00001

Additional equipment

• Full workspace enclosure with top cover
• Harmonic protection with steel lamellas
• Direct path measuring system for X, Y, and Z axes
• Chip conveyor
• Coolant spray gun
• Central oil lubrication system
• Four-point workspace lighting
• Hydraulic clamping system
• Clamping Pressure: Max pressure 240 bar
• Oil Tank: 100 liters, including oil cooler

Machine Benefits

Technical Machine Benefits

• Z-axis horizontal: 1100 mm z-axis vertical: 1000 mm
• Maximum milling load: 1200 kg (central load)
• Special motor spindle: variable bearing preload
• Max drilling and milling speed: 12000 rpm
• Sliding unit mounted on b-axis for main spindle

Extra Information

Partitions for system with two workstations Automatic safety doors Adapter plate 1000 mm, load capacity up to 2.5 tons Compressed air for external nozzles controlled via M-function in program Table 2 CNC rotary tables 630/25 with direct drive Max Rotation Speed: 25 rpm Planar Table Diameter: 630 mm Drive Power: 2.88 kW at 40% ED, 1.57 kW at 100% ED Torque: 1100 Nm at 40% ED, 600 Nm at 100% ED Tangential Torque with Clamp: 3000 Nm Tools Tool Holder: SK40 36 Tool Positions Max Tool Change Time: 10 seconds Tool System: 6-position moving tool magazine Tool Breakage Control: Laser measuring device
