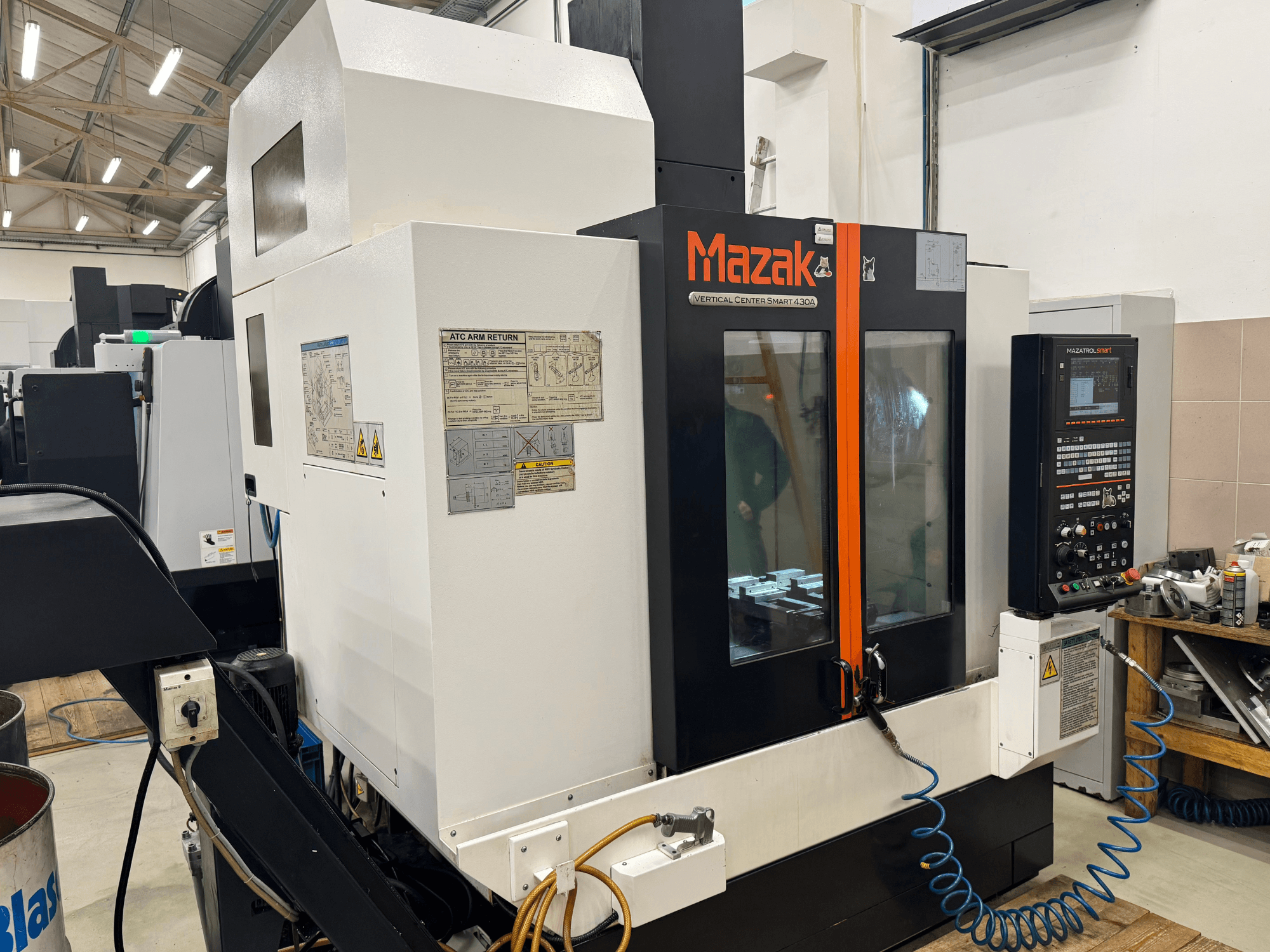

This 3s Mazak VCS 430A vertical machining centre was manufactured in 2011. It features a powerful 18.5 kW spindle with a speed of 12,000 rpm and a table size of 900 x 430 mm. The machine offers rapid traverse of 42 m/min and includes a high-pressure coolant system, synchronized tapping, and tool length measurement. If you are looking to get high-quality machining capabilities, consider the Mazak VCS 430A machine we have for sale. Contact us for further details.
Resumen
- marca: Mazak
- año: 2011
- MODELO: VCS 430A
- tipo de aplicación: Fresado
- Ubicación: Hungría
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: MAZATROL
Información técnica - Mazak VCS 430A
Unidad de Control
- Marca del control: MAZATROL
- Modelo del control: Smart
Recorrido
- Número de ejes: 3
- Recorrido eje X: 900 mm
- Recorrido eje Y: 430 mm
Especificación Técnica
- Potencia del husillo: 18.5 kW
- Velocidad del husillo: 12000 RPM
- Tamaño del cono: ISO 40
Información adicional
Operating hours: 33,000
Spindle hours: 22,000
Rapid traverse: 42 m/min
Installed options/software:
High-pressure coolant (through-spindle), 15 bar
Synchronized tapping
Tool length measurement
Workpiece air blast
Hand-held coolant nozzle
Automatic peck drilling cycle with load detection
G00 slope constant function
High surface smoothing on contours (High Smoothing Control)
Mazatrol-to-ISO program conversion
Program memory expansion
Preparation for workpiece probe (OMP60)
Preparation for chip conveyor (left side)
MAZACC-3D high-speed software package
CNC functions and connectivity:
NC user macros
Mazak drilling/tapping cycles (Mazatrol & EIA)
EIA/ISO code input
Constant tool tip speed function
Programmable block stop (M01)
Background tool path verification (MAZACC-2D)
Up to 300 workpiece coordinate systems
Thread cutting functions
EIA canned cycles (chamfering, arc machining)
USB interface (2 ports)
LAN port
Additional equipment
Chip conveyor, left-hand, hinge type (Mayfran)
4th-axis simultaneous kit: Kitagawa NC rotary table (MR200)
