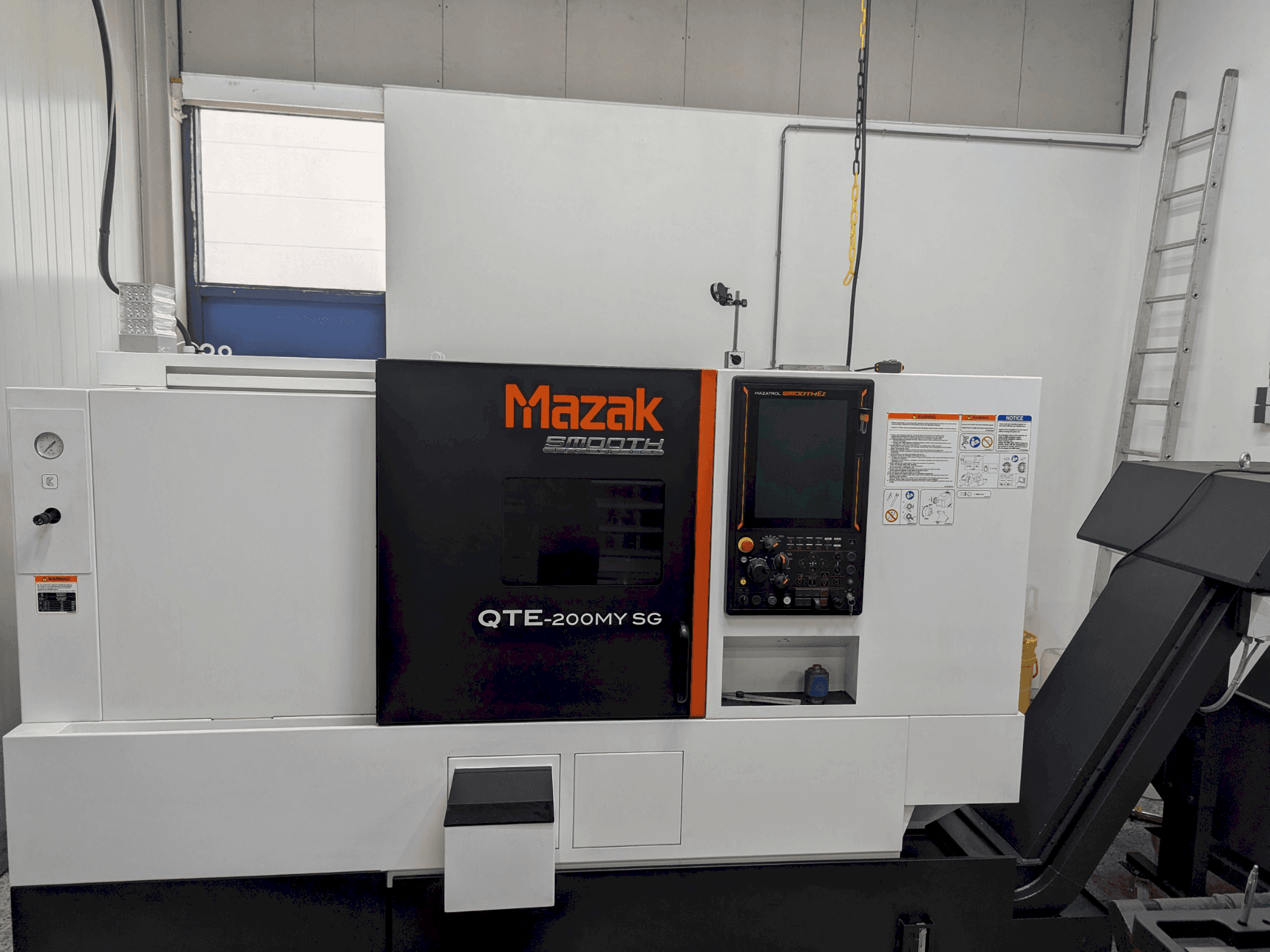

Mazak - QTE-200MY SGNL-TUR-MAZ-2023-00001

Additional equipment

• Transformer for Europe (CE)
• Roller guide with spherical roller bearings
• SD memory card I/F + USB memory I/F
• 1 Set of control keys
• Foundation kit (steel plates)
• CE Marking (With noise filter)
• C-axis Positioning 0.0001° Increment
• 12-Position Turret
• Y-Axis Control
• Interface bar feeder

Extra Information

Automatic part trapper High pressure cooling Preparation for chip conveyor 8" Open chuck Measuring arm Signal tower Rotary center Chain chip conveyor with side discharge Cylindrical and polar coordinate engraving function Automatic pecking cycle with load detection Quick-change cutter holder system Bar diameter Workpiece Maximum swing diameter: 695 mm Standard cutting diameter: 235 mm Maximum cutting length: 535 mm Maximum turning diameter: 340 mm Maximum bar diameter: 65 mm Maximum chuck weight: 200 kg Maximum workpiece weight: 500 kg Distance between spindle nose and end of workpiece: 81 to 686 mm Turret Number of tool positions: 12 Tool size (External turning): 25 mm Tool size (Internal turning): 40 mm Tool size (Driven drill): 20 mm Tool size (Driven end mill): 20 mm Tool size (Driven tap): M20 Indexing time 1 step: 0.23 s Indexing time full revolution: 0.63 s Tail Stock Center bore (morse taper): MK No. 5 Tailstock travel (body movement): 565 mm Maximum thrust: 5000 N Tools Milling spindle power (continuous power): 3.7 kW Milling spindle power (40% ED): 5.5 kW Maximum milling spindle speed: 4500 min-1 Minimum milling spindle speed: 20 min-1 Media Tank capacity: 225 L Coolant pump: MTA70H-250 Power: 0.25 kW Compressed air flow rate: 75 to 370 L/min (ANR)
