MIKROMAT - 8VDE-MIL-MIK-2000-00003

Additional equipment

• Scraper belt conveyor with discharge height 1200 mm
• Temperature stabilization switch cabinet with high-performance cooling unit

Machine Benefits

Technical Machine Benefits

• Automatic tool change type: atc-16p
• Hsk 100 spindle mount
• Blum laser system for tool monitoring and measurement
• Andronic 2000 control system
• High-speed spindle with a maximum speed of 25000 rpm

Extra Information

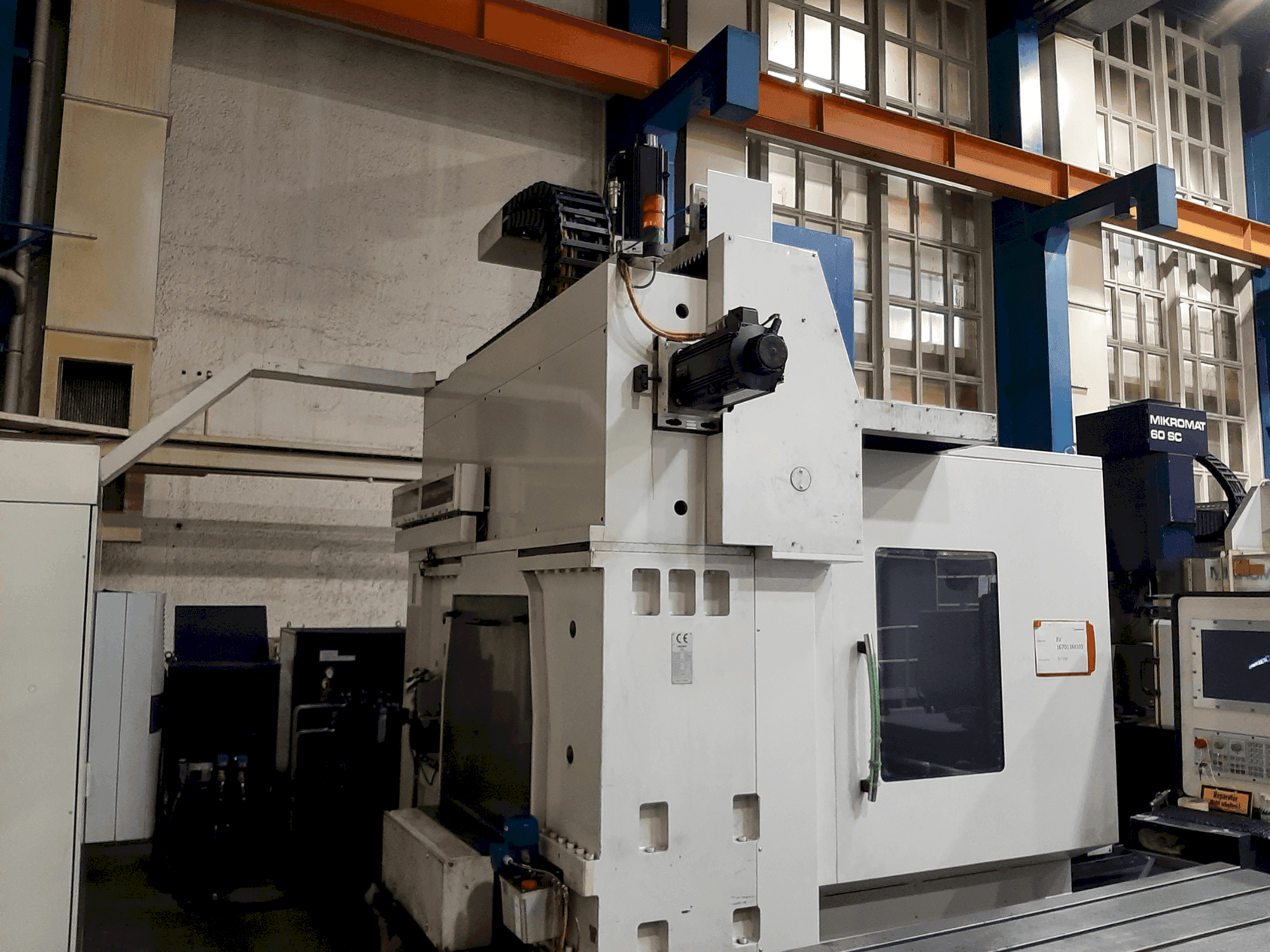

Logging of measurement results via print screen Andronic 2000 control system with automatic tool change type: ATC-16P with work area protection With: 1 piece High-speed spindle Complete with torque support For automatic tool change Speed Dry running nmax Continuous operation 25,000 rpm At 10% duty cycle 30,000 rpm Reference time 1 hour Transmission ratio 1:7.5 Machine spindle mount DIN 69 893 HSK 100 1 piece Scraper belt conveyor for short-chip materials Discharge height 1,200 mm Make: Knoll 1 Logging of measurement results via print screen 1 piece BLUM laser system Tool monitoring and measurement 1 Temperature stabilization Switch cabinet with high-performance cooling unit The rotary table visible in the picture (working spindle) has been decommissioned and is not available as a rotary table.
