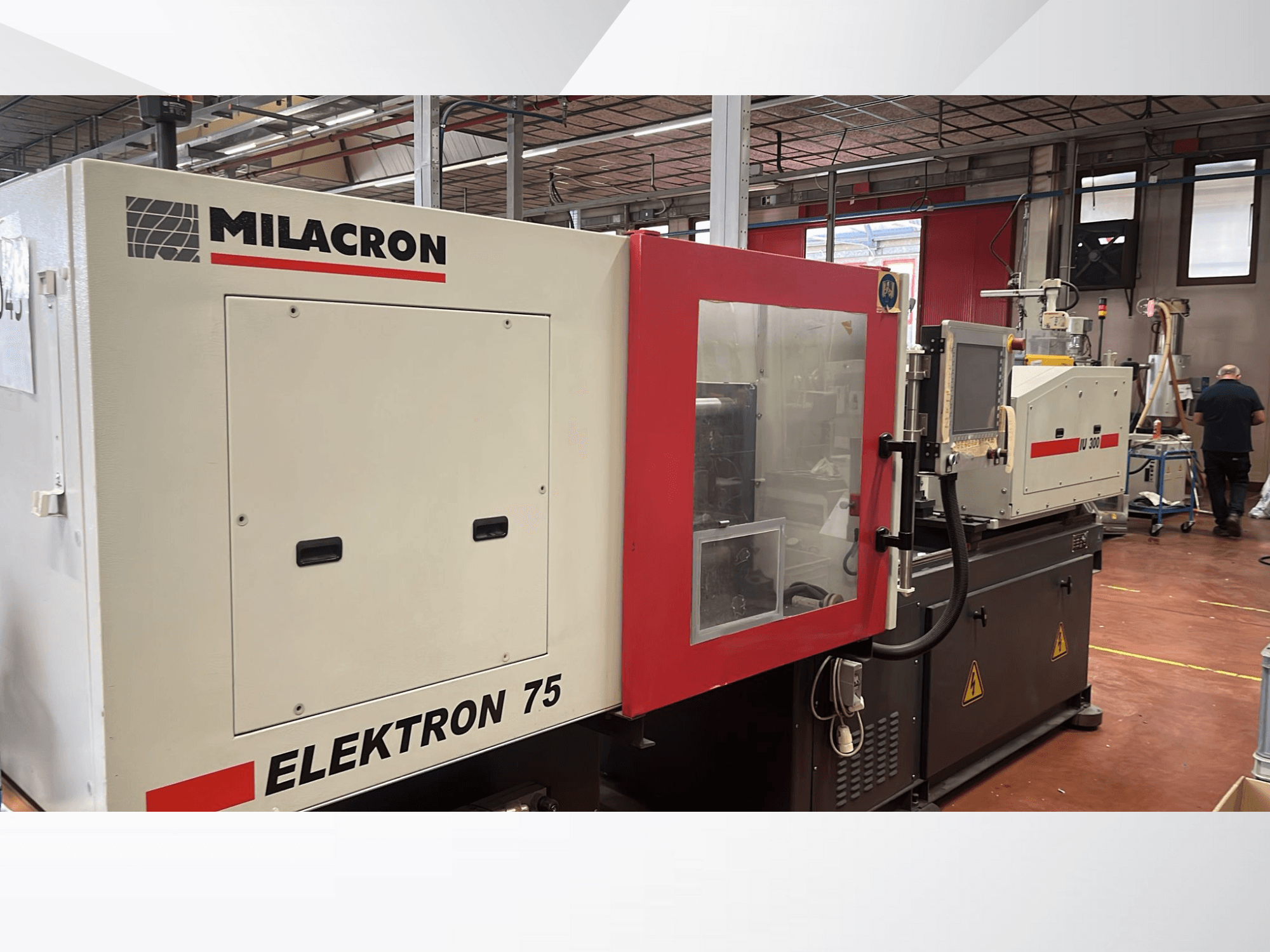

Milacron - ELEKTRON 75 IT-INJ-MIL-2011-00001

Additional information

• Clamp Force: 750 kN

• Injection Unit: 300

• Screw Diameter (mm): A 18 / B 25 / C 32

• Injection Pressure (bar): A 2500 / B 1943 / C 1488

• Shot Volume (cm³): A 103 / B 140 / C 183

• Shot Weight (PS g): A 113 / B 154 / C 201

• Injection Rate (cm³/s): A 117 / B 159 / C 208

• Screw Stroke (mm): 165

• Screw L/D Ratio: 25

• Plasticizing Capacity (g/s): A 9.2 / B 11.2 / C 11.2

• Screw Speed (rpm): 125

• Tie Bar Distance: 575 × 570 mm

• Platen Size: 750 × 765 mm

• Min Mould Height: 250 mm

• Max Mould Height: 480 mm

• Opening Stroke: 320 mm

• Max Daylight: 800 mm

• Ejector Stroke: 150 mm

• Ejector Force (kN): 25

• Mould Platen Hole Spacing: 405 × 380 mm

• Mould Weight Max (kg): 400

• Number of Core Pullers: 4 + 1

• Nozzle Radius: R = 300 mm

• Nozzle Orifice: Ø 48 mm

• Hydraulic Oil Capacity: 97 / 130 L

• Thread Size for Mounting: M10
