- ➤ Used NILES DLZ 630 V x 2000 For Sale | gindumac.com

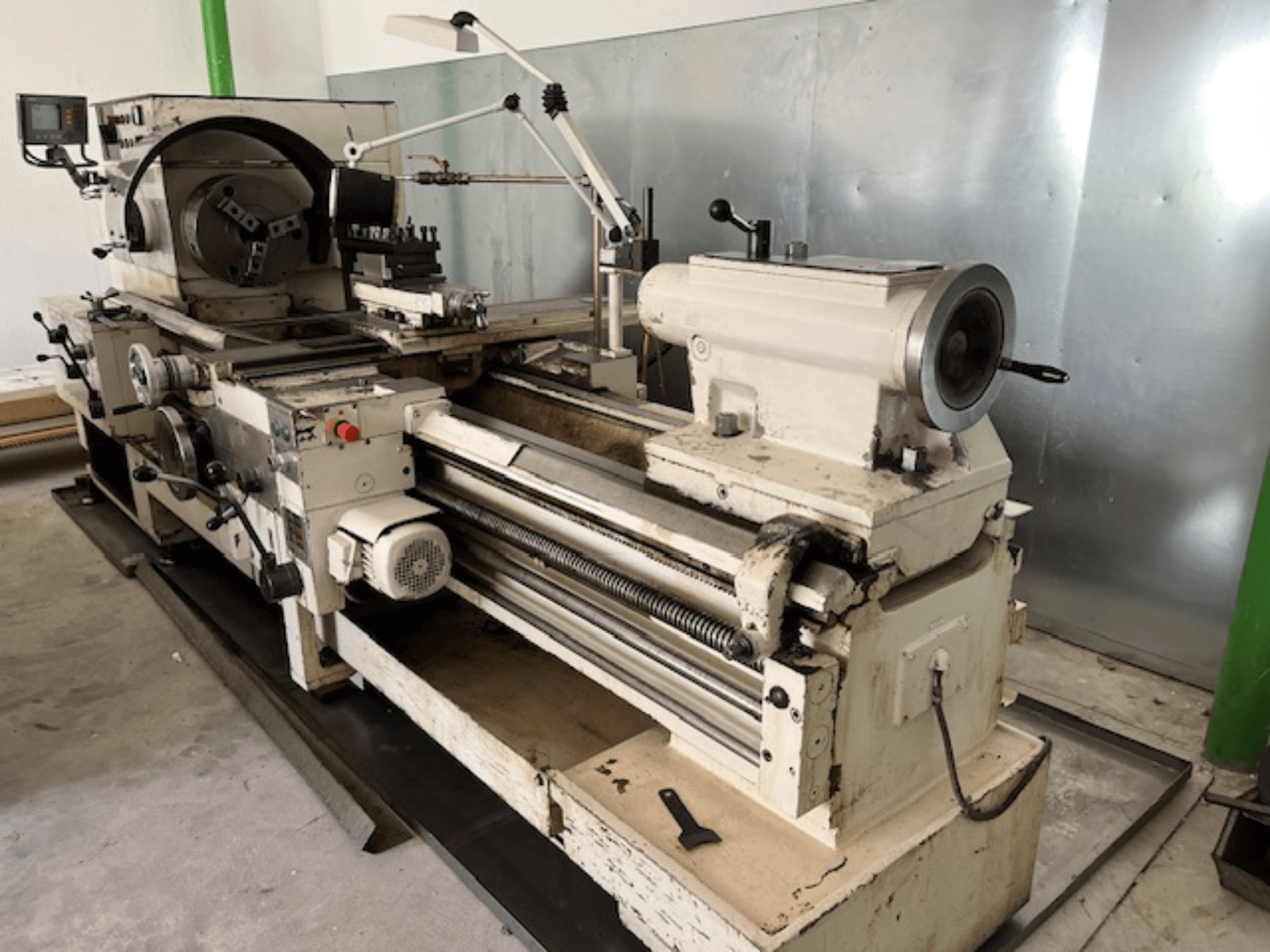

This 3-axis NILES DLZ 630 V x 2000 was manufactured in 1983. It features a turning diameter over bed of 630 mm and over support of 340 mm, with a turning length of 2000 mm. The spindle speed ranges from 22.5 to 1120 rpm across 18 steps. Total power requirement is 15.0 kW, and it includes multiple steady rests and face plates. If you are looking to get high-quality turning capabilities consider the NILES DLZ 630 V x 2000 machine we have for sale. Contact us for more information.
Resumen
- marca: NILES
- año: 1983
- MODELO: DLZ 630 V x 2000
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
Información técnica - NILES DLZ 630 V x 2000
Dimensiones
- Peso de la máquina: 4400 kg
Recorrido
- Número de ejes: 3
Información adicional
Turning diameter over bed: 630 mm
Turning diameter over support: 340 mm
Turning length: 2000 mm
Centre height: 290 mm
Clearance: 70 mm
Spindle speed range: 22.5–1120 rpm (18 steps)
Feed, longitudinal: 0.036–2.5 mm/rev
Feed, transverse: 0.018–1.25 mm/rev
Total power requirement: 15.0 kW
Transport dimensions (LxWxH): 5.0 x 1.35 x 1.5 m
Tailstock taper: MK5
Additional equipment
400 mm tapered bar chuck
1 face plate, D=630 mm
2 face plates with cross slots
2 large steady rests (340 mm capacity)
2 steady rests (center type)
1 travelling steady rest
Heidenhain position indicator (DRO)
Various tool holders
Tool cabinet with tool holders
Steady rest box
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
