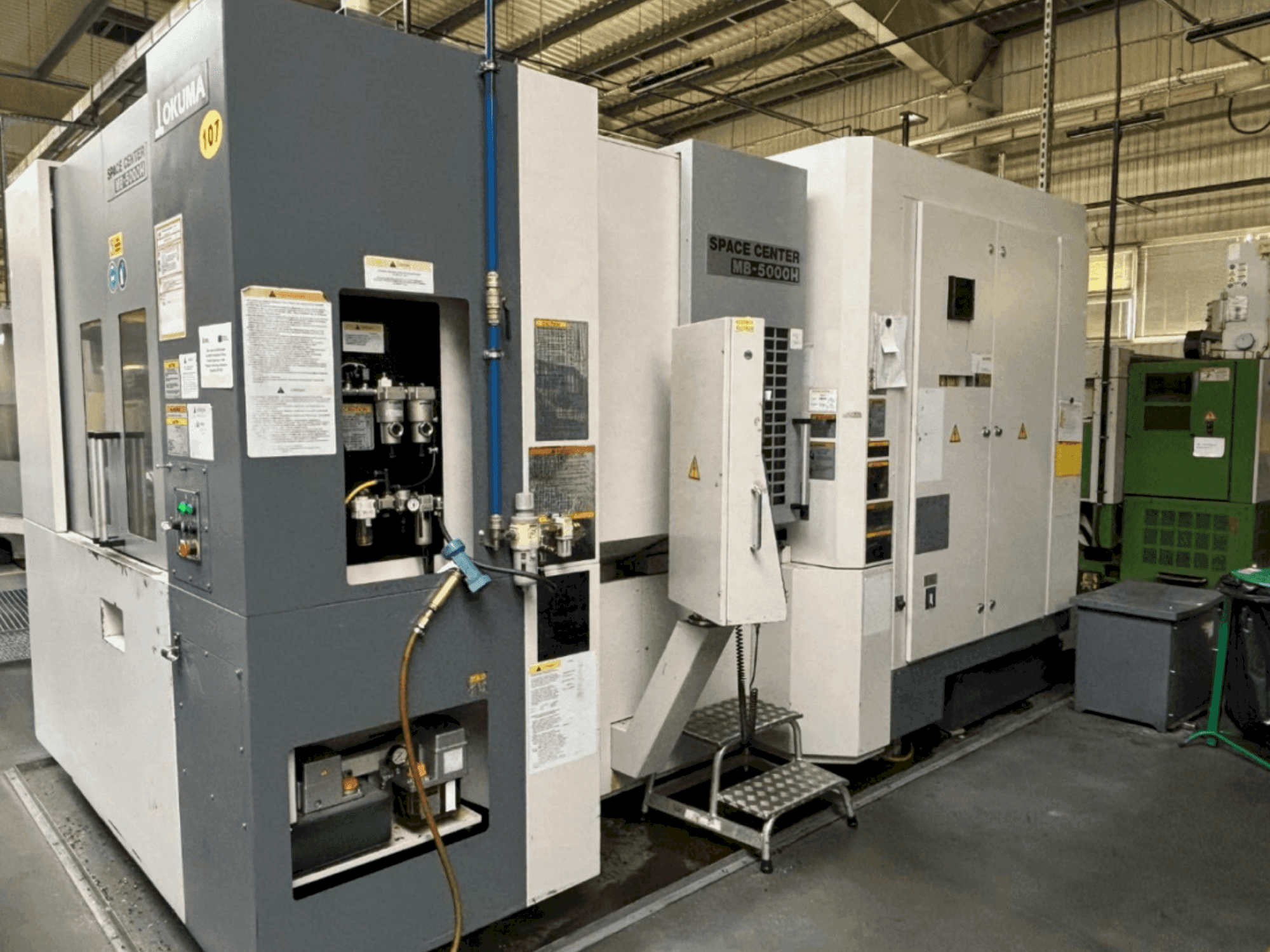

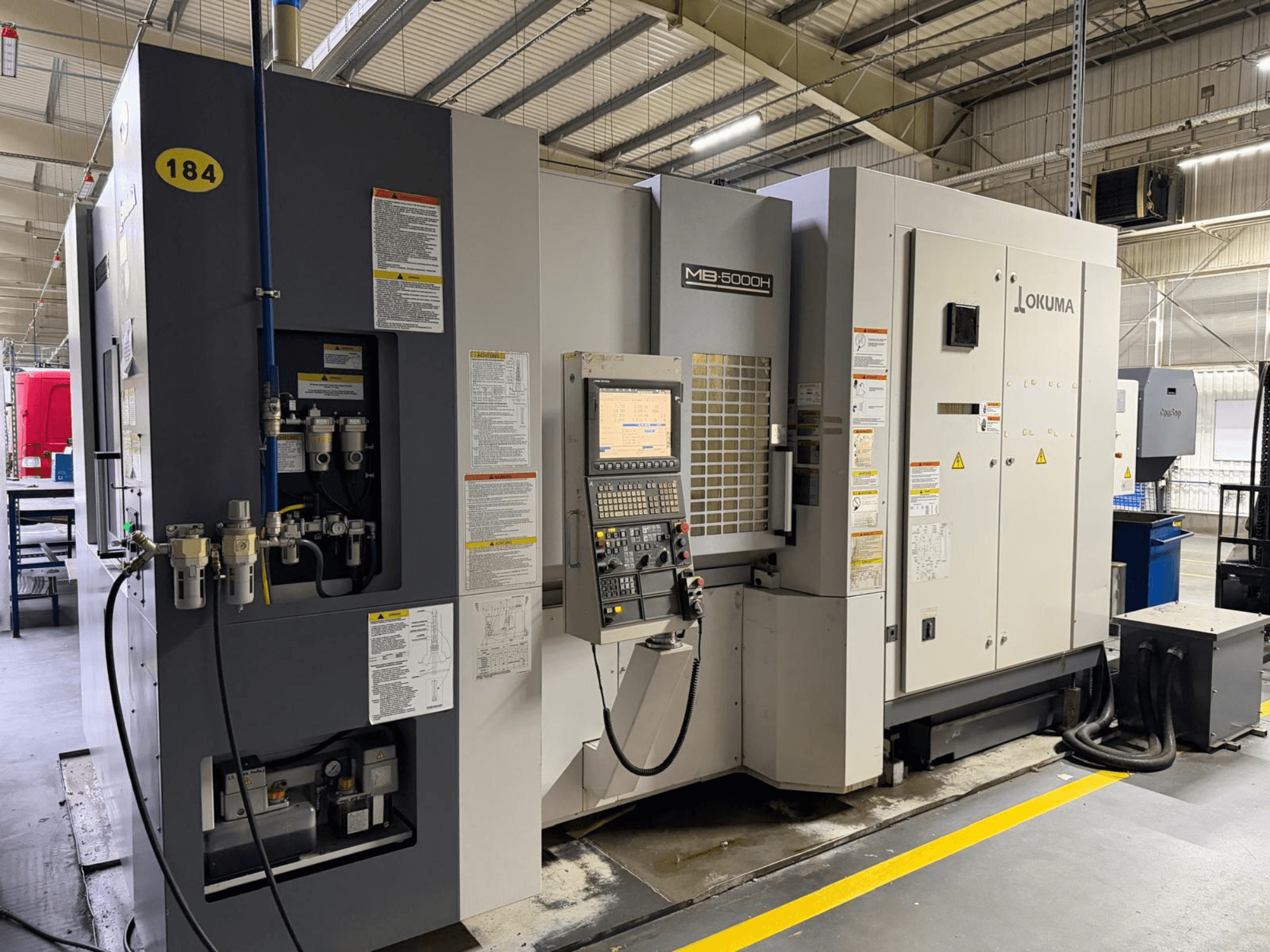

Okuma - MB 5000HIT-MIL-OKU-2011-00003

• Spindle center to pallet top: 50–810 mm

• Spindle nose to pallet center: 135–895 mm

• Table/Pallet:

  • Pallet size: 500 × 500 mm

  • Indexing: 1°

• Workpiece capacity:

  • Max workpiece: Ø800 × 1,000 mm

• Spindle:

  • Bearing diameter: Ø70 mm

  • Power (10 min / continuous): 26 / 18.5 kW

  • Through-spindle cooling: Yes

• Feed / rapid rates:

  • Cutting feedrate: 1–60,000 mm/min

  • Axes feed motor power X/Y/Z: 4.6 kW

  • Table indexing motor power: 3.0 kW

• Tooling / ATC:

  • Tool shank: MAS403 / BT40

  • Pull stud: MAS 2

  • Magazine capacity: 64 tools

  • Tool selection: Random

• Floor space: 2,700 × 4,710 mm

• Features:

  • Shower system: Yes

  • Provision for Renishaw probe: Yes

  • Presetting at table edge: Yes

Additional equipment

• Chip conveyor: Yes
