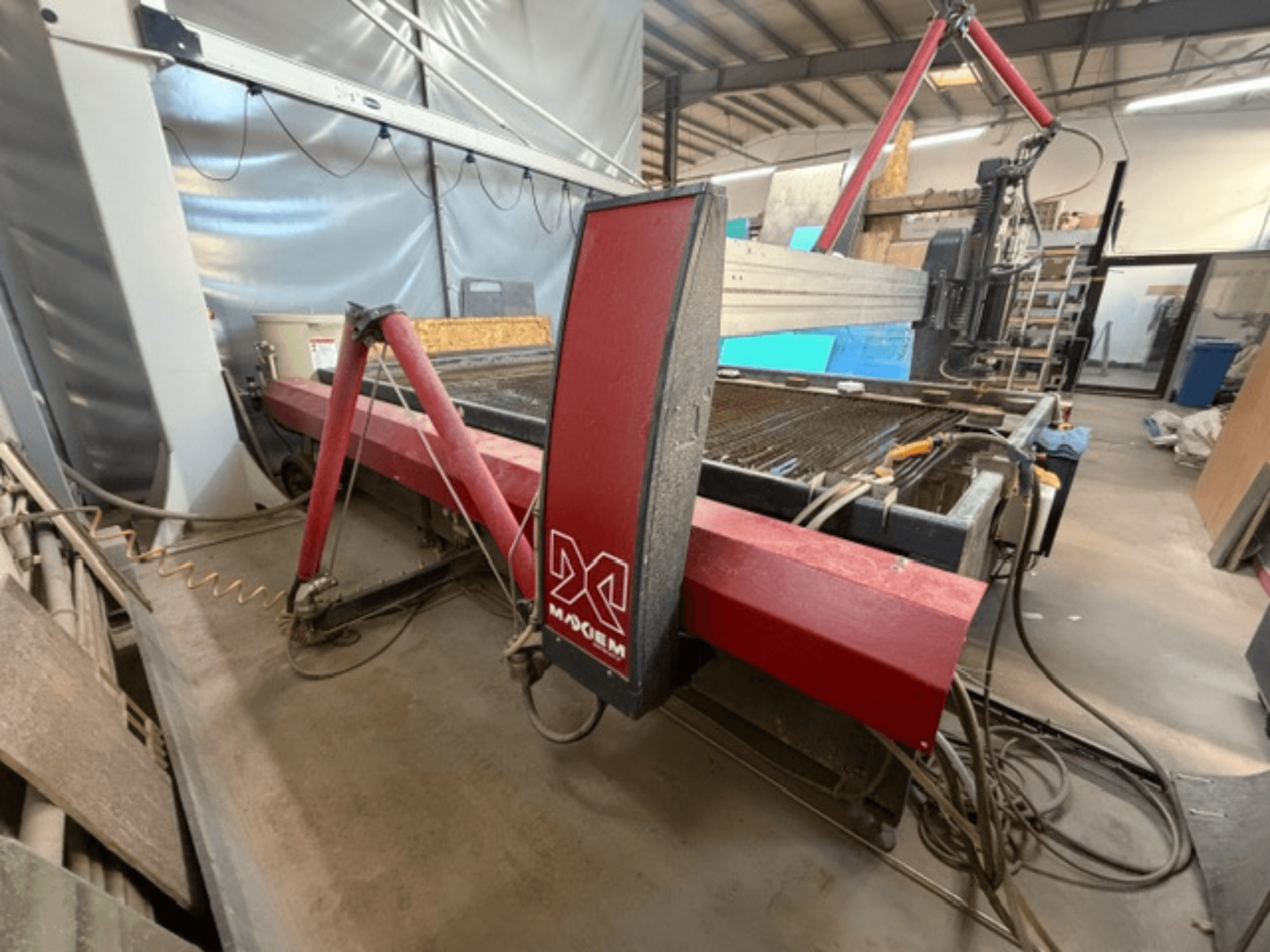

This 3-axis OMAX MAXIEM 2030 30 HP AJet was manufactured in 2018, featuring a CNC Waterjet Cutting System with a 5-axis cutting capability. It includes a robust 30 HP pump, MAXJET® 5i cutting head, and a cutting envelope of 3,061 mm by 2,019 mm. Ideal for high-precision applications, it supports a maximum material load of 1,465 kg/m². Consider the opportunity to buy this OMAX MAXIEM 2030 waterjet cutting machine. Contact us for more information about this machine.
Resumen
- marca: OMAX
- año: 2018
- MODELO: MAXIEM 2030 30 HP AJet
- tipo de aplicación: Corte
- Ubicación: Rumanía
- tipo de máquina: Máquina de corte por chorro de agua
Información técnica - OMAX MAXIEM 2030 30 HP AJet
Dimensiones
- Altura de la máquina: 2692 mm
- Peso de la máquina: 2041 kg
Recorrido
- Número de ejes: 3
- Recorrido eje Z: 305 mm
Información adicional
Work envelope / cutting table:
Cutting X-axis travel: 10’ 0’’ (3,061 mm)
Cutting Y-axis travel: 6’ 7’’ (2,019 mm)
X-axis table size: 12’ 2’’ (3,708 mm)
Y-axis table size: 7’ 0’’ (2,134 mm)
Material support slats: 4’’ × 14 ga galvanized steel (102 mm × 2 mm)
Performance:
Traverse speed: 500 in/min (12,700 mm/min)
Repeatability: ±0.001’’ (±0.025 mm)
Accuracy: ±0.003’’ (±0.076 mm)
Pump & cutting head:
Pump power: 30 HP
Cutting head: MAXJET 5i with A-Jet (5-axis cutting)
Nozzle life: Diamond orifice, approx. 500 hours (guaranteed)
Dimensions & weight:
Operating weight: 20,500 lb (9,299 kg)
Overall height: 8’ 10’’ (2,692 mm)
Footprint (without controller): 14’ 1’’ × 14’ 1’’ (4,293 × 4,293 mm)
Slat bed:
Standard configuration: 34 slats
Maximum slat configuration (optional): 117 slats
Maximum material load: 300 lb/ft² (1,465 kg/m²)
Standard features:
Intelli-TRAX abrasive-jet linear drive system (1 micron resolution)
Brushless servo motors and drives
Abrasive feed system (15 lb capacity)
Rugged catcher tank (300 lb/ft² load capacity)
Industrial steel protection covers on X-axis
Modular bridge control and power centers
Low-noise pump and system design
Windows-based control system
IntelliMAX Standard Software (2 seats)
Mobile control station with widescreen display
No special foundation required
Ergonomic full table access
Made in the USA
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
