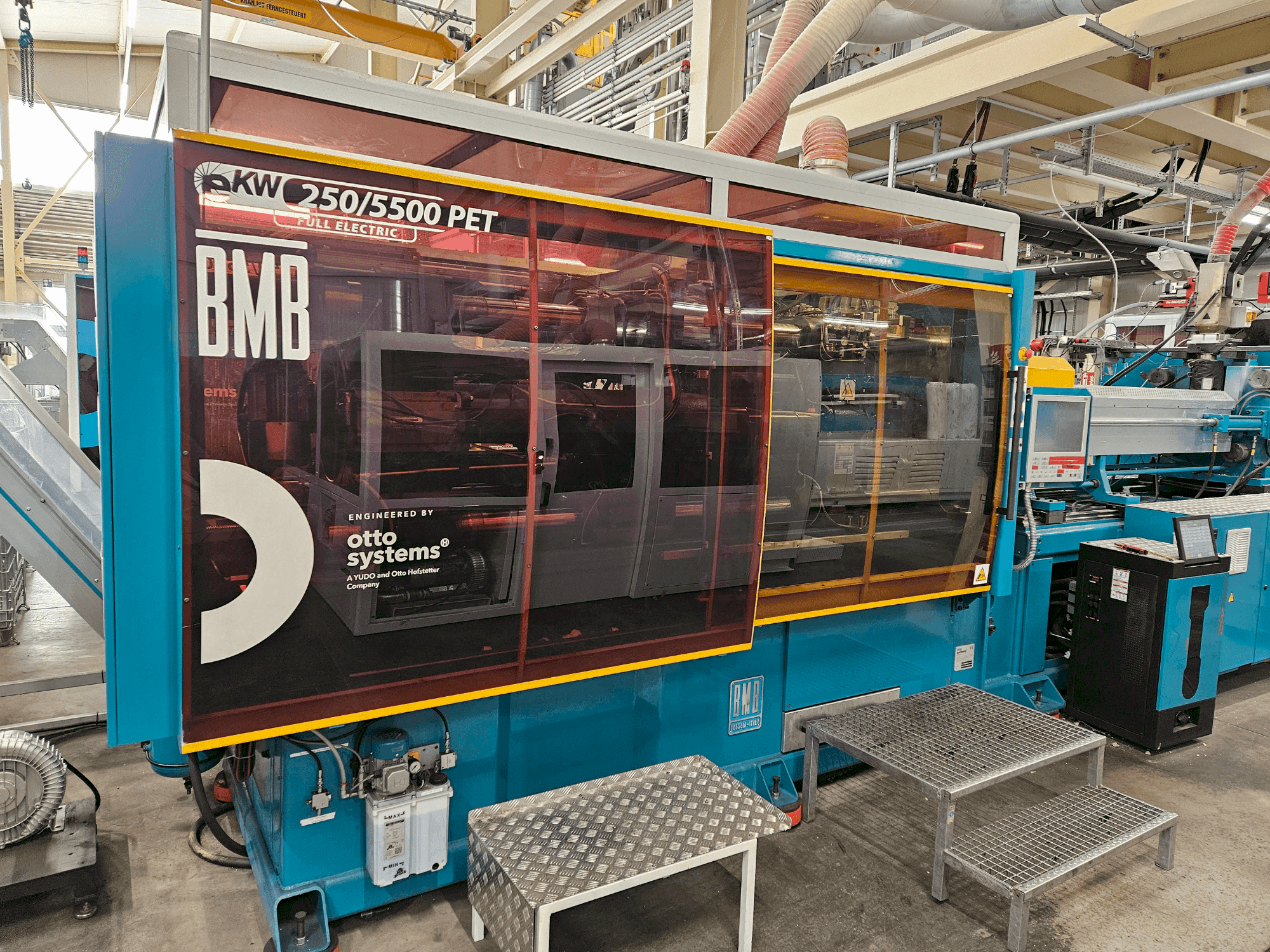

Otto Systems - eKW 250/5500 PETDE-INJ-OTT-2018-00001

Additional equipment

• Injection unit: 13000 kg
• Clamping unit: 9000 kg
• only hot runner is includeed

Machine Benefits

Technical Machine Benefits

• Ejection force detailed: 200 kn (first 30 mm) + 60 kn (remaining 170 mm)
• Platen dimensions (h/v): 910 x 910 mm
• Min. Mould thickness: 350 mm // max. Mould thickness: 850 mm
• Ejection force (first 30 mm): 200 kn
• Euromap classification: 2500h-5500
• Mould opening force: 250 kn
• Tie-bar diameter: 100 mm
• Length/diameter ratio (l/d): 26
• Maximum screw rotation speed: 100 min⁻¹
• Injectable volume: 3534 cm³

Extra Information

Electrical system: Motor pump power: 7.5 kW Barrel heating capacity: 68.5 kW Barrel heating zones: 8+1+1 Dry cycle time: 1.6 s Oil tank capacity: 60 l Max. injection carriage stroke: 450 mm Injection Unit Shot weight PET: 3830 g Injection rate: 1965 cm³/s Injection speed: 250 mm/s Specific injection pressure: 1575 kg/cm³ Plasticizing rate: 107 g/s Maximum torque: 8000 Nm
