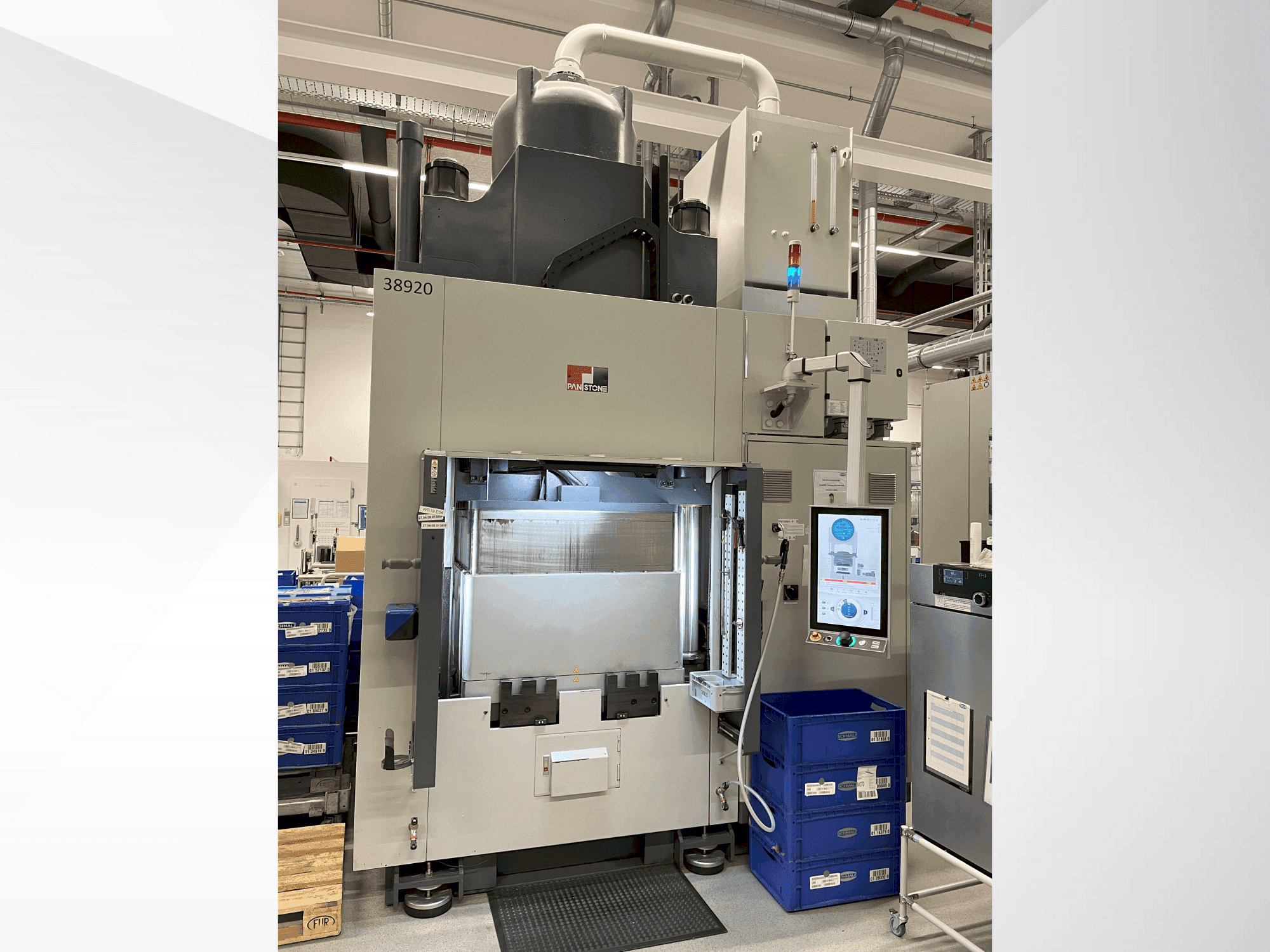

PAN Stone - D-V-200-PCDDE-OTH-PAN-2018-00001

Additional equipment

• 22" Touch Display with B&R Control System
• Windows-based, User Languages: German + English, Units Switchable
• Functions can be enabled as needed
• Free process configuration possible
• Operator Intervention
• Venting/Degassing Function
• Weekly Timer
• Magnetic Clamping System from Römheld
• Integrated Heavy-Duty Rollers
• Vacuum Chamber: -900 mbar, Max. 400 mm Stroke

Machine Benefits

Technical Machine Benefits

• Design: upper piston press
• Working height: 950 mm
• Clamping plates (lxw): 800 x 800 mm
• Centering pin: Ø10 mm, 50 mm vertically behind the plate center
• Minimum installation height: 54 mm
• Maximum installation height: 400 mm
• Upper clamping plate: swivels up to 60°
• Initially used exclusively for sampling
• In series production in two-shift operation since 2020
• Condition appropriate for its age and well-maintained

Extra Information

Demolding Maximum Opening Stroke: 800 mm Upper Lifting Unit: Controlled / Max. Stroke: 300 mm Lower Lifting Unit: Controlled / Max. Stroke: 300 mm Clear Width Between Lifting Units: 570 mm Central Ejector: Controlled / Max. Stroke: 100 mm Central Ejector Diameter: 45 mm Additional Equipment Evacuation with BUSCH Pump Seal Positioned Away from Heating Plates Upper Clamping Plate Swivels up to 60° Oil Preheating Function Interior Lighting 4x Compressed Air Connections Side-Mounted Power Strip, Controllable via Weekly Timer Heavy-Duty Rollers for Easier Machine Setup Profiled Pressing Possible (Transfer Press Functionality)
