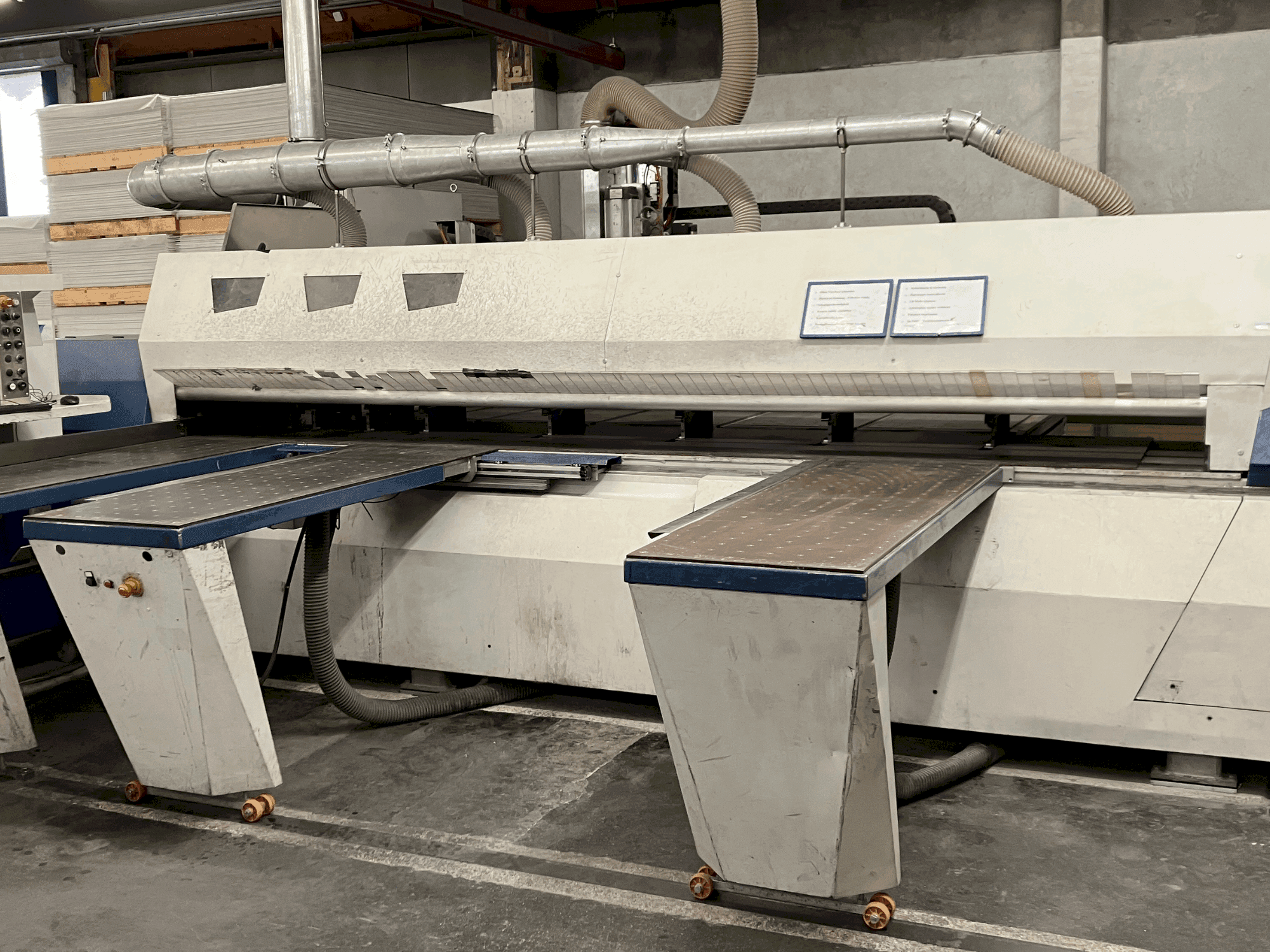

PANHANS - 2006DE-SAW-PAN-2006-00001

Configuration: Machine including control cabinet

Cutting length (SL): 4200 mm

Cutting width (SB): 4200 mm

Max cutting height (saw blade vertical 0°): 72 mm

Max cutting height (saw blade swiveled 47°): 40 mm

Cutting accuracy (saw blade vertical 0°): +/- 0.1 mm

Cutting accuracy (saw blade swiveled): +/- 0.2 mm

Angle accuracy (feed speed < 10 m/min): +/- 1 mm

Angle accuracy (feed speed > 10 m/min): +/- 2.5 mm

Feed speed (saw carriage forward/reverse): 0–100 m/min

Feed speed (width stop forward): 25 m/min

Feed speed (width stop reverse): 100 mm

Axis travels (minimum plate size): X = 300 mm, Y = 100 mm

Axis travels (maximum plate size): X = 2800 mm, Y = 750 mm

Max drilling diameter: 13 mm

Max total length: 115 mm

Number of tools: 1 drilling spindle

Tool holder: Quick-release chuck DM 1-13

Connection values

Total connection value: 21.0 kVA

Nominal current: 3x 32 A

Pneumatic connection: 8 bar (minimum 6 bar)

Air consumption: 3 liters/min per clamp

Sound pressure level (Lpa) at operator position: 86 dB(A)

Sound power level (LWA): 103 dB(A)
