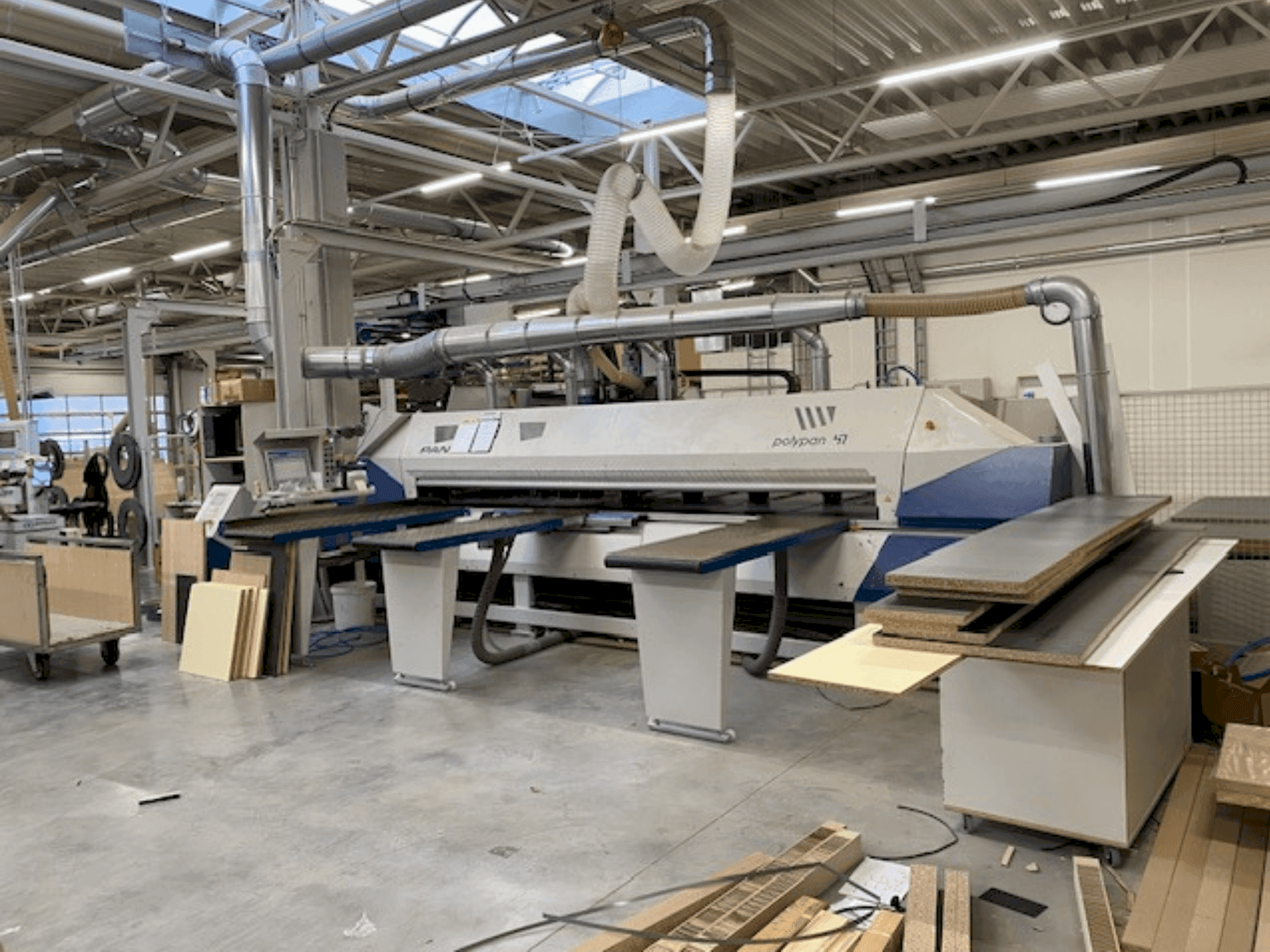

PANHANS - POLYPAN 47 FDE-SAW-PAN-2007-00002

Machine Benefits

Technical Machine Benefits

• Cutting length: 4200 mm / cutting width: 4200 mm / main saw blade diameter: 350 mm / cutting height (max): 72 mm / saw exit (max): 82 mm / main saw motor: 11 kw / main saw speed: 4980 rpm / scoring saw motor: 2. 2 kw / speed of scoring saw: 0. 55 kw / feed speed of saw carriage: infinitely variable, 0 - 80 m/min / return speed of saw carriage: 80 m/min / frequency drive width stop: 1. 1 kw / width stop in front: infinitely variable, 0 - 25 m/min / width stop return speed: 80 m/min / operating pressure: 6 - 8 bar / x-axis: linear guide, servo drive 80 m/min / z-axis: linear guide, servo drive downwards: 20 m/min, upwards: 15 m/min
• Drilling/milling head / 14 drilling spindles (standard) / drive: 4 kw / vertical drilling speed: 7280 rpm / extension stroke: 50 mm / max. Drilling depth: 45 mm / tool holder: weldon Ø10
• Smallest part to be machined: min 80 x 250 mm / largest part to be machined: max 2650 x 2070 mm
• Working path y: 2100 mm / working path x: 3000 mm
