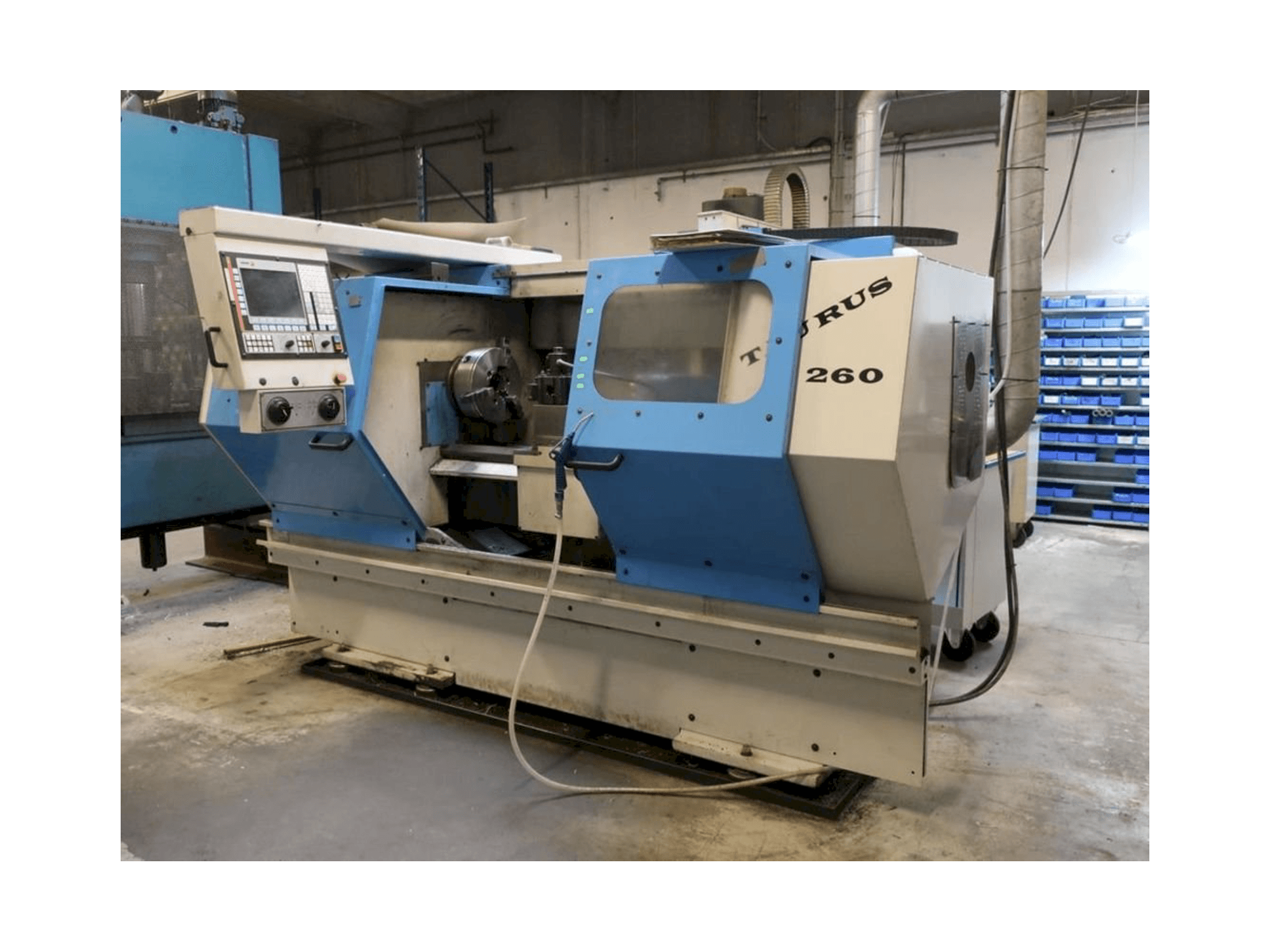

Pinacho - Taurus 260DK-TUR-PIN-2000-00001

Machine Benefits

Qualitative Machine Benefits

• Max. Min capacity of travelling steady: 10-125 mm
• 310 mm chuck

Technical Machine Benefits

• Capacity: centre height 260 mm. Distance between centres: 1000 - 3000 mm
• Swing over bed 530mm, swing over carriage 475 mm, swing over crosslide 315 mm, bed width 350 mm
• Main spindle bore: 80 mm, main spindle taper: 2 mm. Nº speed ranges : 2 mm
• Feeds: z,x working feed : 0- 7000 mm/min
• Z,x rapid motion: 10 mm
• Tailstock shank diameter 72 mm, tailstock shank travel 180 mm, tailstock taper 5mm
• Power of z axis motor, c. A 12 nm
• Power of x axis motor, c. A 4 nm
• Max. Min capacity of fixed steady: 10-185 mm
• Max. Min capacity of fixed steady: 10-300 mm
