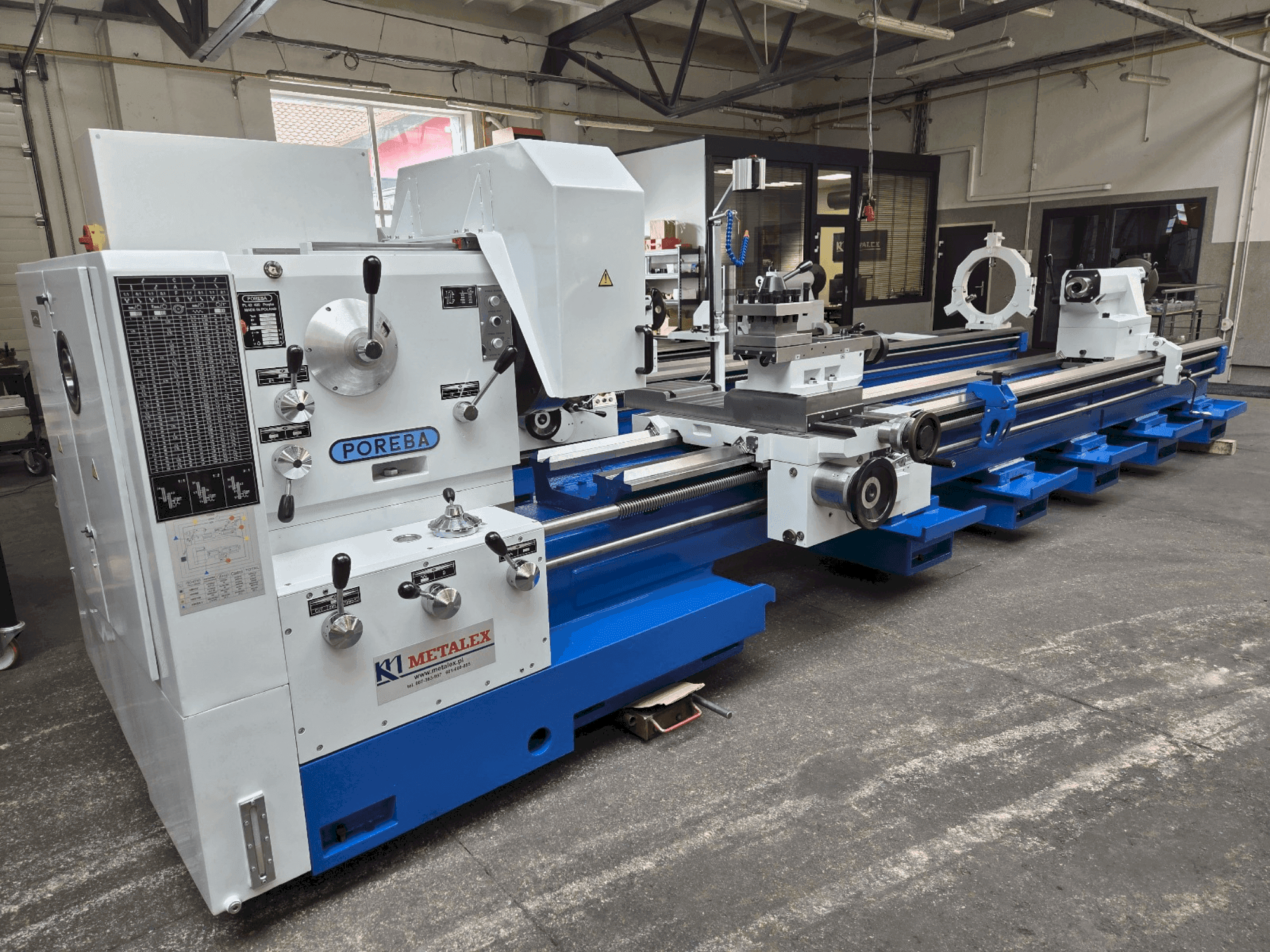

This Poreba TPK 90/5M horizontal turning machine was manufactured in 1984. It features a swing over bed of 930 mm, a spindle bore diameter of 95 mm, and can handle workpiece weights up to 9,000 kg with two steady rests. It includes a tailstock, coolant pump, chuck guard, and tool holder. Consider the opportunity to buy this Poreba TPK 90/5M horizontal turning machine. Contact us for more information about this machine.
Resumen
- marca: Poreba
- año: 1984
- MODELO: TPK 90/5M
- tipo de aplicación: Torneado
- Ubicación: Polonia
- tipo de máquina: Tornos horizontales
Información técnica - Poreba TPK 90/5M
Dimensiones
- Profundidad de la máquina: 7500 mm
- Altura de la máquina: 1800 mm
- Peso de la máquina: 7300 kg
Recorrido
- Número de ejes: 2
Especificación Técnica
- Potencia del husillo: 16 kW
- Velocidad del husillo: 800 RPM
Información adicional
Additional equipment
- Standard equipment includes Coolant pump, Chuck guard, Tool holder
- Optional equipment available: 3- or 4-jaw chuck, various diameters and versions
- Digital Read Out (DRO) for 2 axes, incl. display, installation, and calibration
- Steady rest 40–400 mm with rollers
- Steady rest 400–600 mm with rollers
- MULTIFIX quick-change tool post
Machine Benefits
Technical Machine Benefits
- Distance between centers / turning length: 5000 mm
- Swing in gap: 1200 mm
- Maximum workpiece weight between centers: 6000 kg
- Maximum workpiece weight between centers + 1 steady rest: 7500 kg
- Maximum workpiece weight between centers + 2 steady rests: 9000 kg
- Number of feeds: 80
- Feed range (mm/rev): - longitudinal: 0. 1 – 12. 8, - cross: 0. 05 – 6. 4
Extra Information
Machine completly overhauled. Comes with 12 months warranty.
