- ➤ Used Priess & Horstmann PBA-52M For Sale | gindumac.com

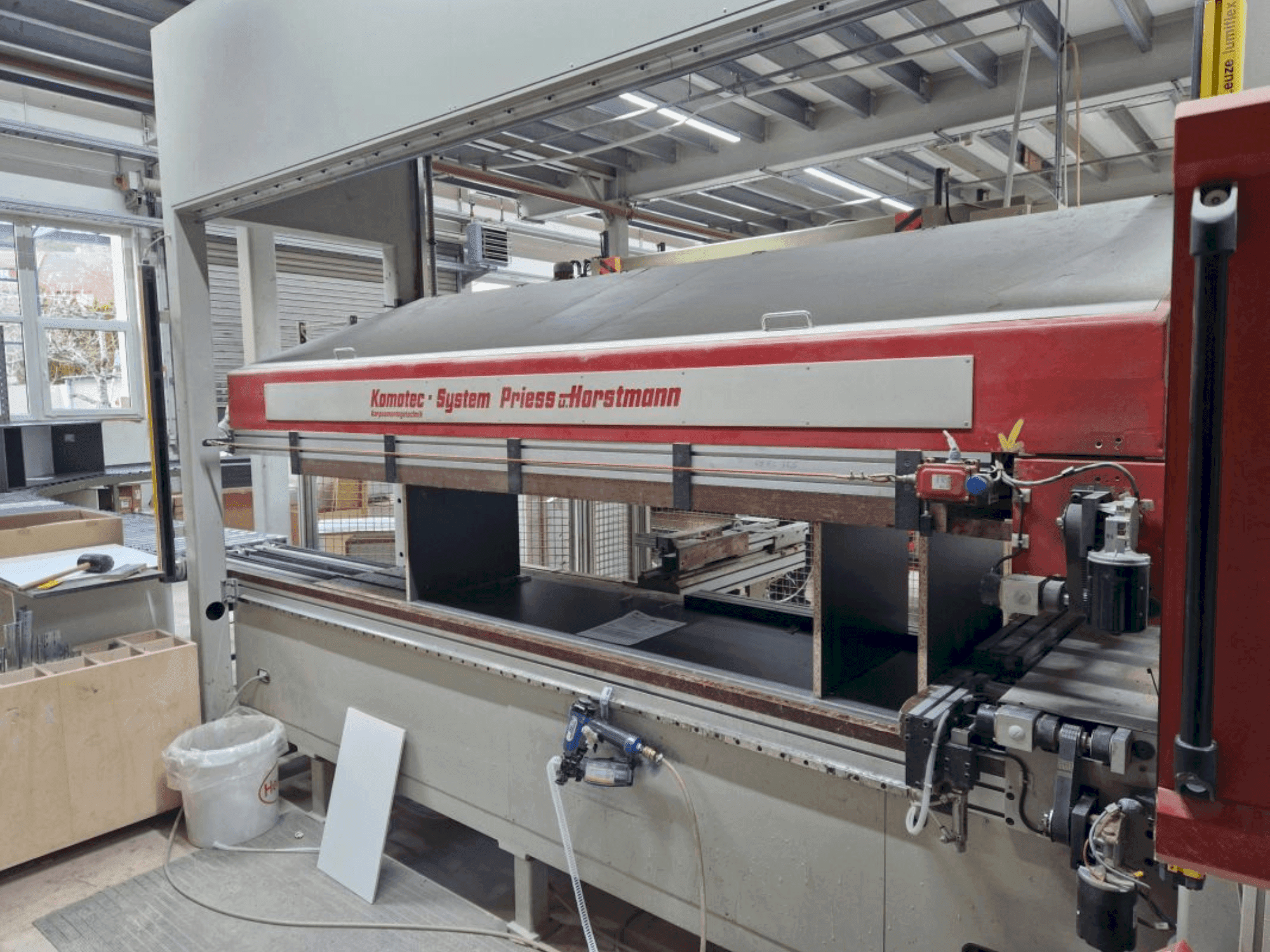

This Priess & Horstmann PBA-52M was manufactured in 2000. It is designed for woodworking applications, providing reliable performance for various wood processing tasks. If you are looking to get high quality woodworking capabilities consider the Priess & Horstmann PBA-52M machine we have for sale. Contact us for more information.
Resumen
- marca: Priess & Horstmann
- año: 2000
- MODELO: PBA-52M
- tipo de aplicación: Otra maquinaria para trabajar la madera
- Ubicación: Alemania
- tipo de máquina: Otros (Madera)
Información adicional
Additional equipment
- Feeding and Buffer Section: Components: Roller conveyors, cross conveyors, belt conveyors
- Roller Conveyor: Driven by geared motor (0.55 kW), speed 50 m/min
- Cross Conveyors: 8 toothed belts, 40 m/min speed
- Belt Conveyor: For manual workstation, adjustable speed 50-100 m/min
Machine Benefits
Technical Machine Benefits
- Paint: pebble gray (ral 7032), fire red (ral 3000), matt black (ral 9005)
- The machine is designed for efficient loading, drilling, assembly, and glue application for various workpieces, complemented by a comprehensive feeding and buffer system.
- Portal loading system pba-52m: 400 v, 50 hz, 4 kw
- Bma-dls-cnc drilling and assembly system: 400 v, 50 hz, 13 kw
- Bad-dtw-cnc drilling and assembly system: 400 v, 50 hz, 20 kw
- Automatic glue application la - cnc: 400 v, 50 hz, 5 kw
- Kp-6-cnc carcass press: 400 v, 50 hz, 10 kw
- Compressed air: via drilling and assembly system; r 1/2” with pressure switch, 6-7 bar
- Extraction: 32 m/sec air speed, 2200 pa negative pressure
Extra Information
Workpiece Portal Loading System PBA-52M: Workpiece Dimensions: Length: 300-2350 mm Width: 300-700 mm Thickness: 16-25 mm Stacking Height: 300-1500 mm BMA-DLS-CNC Drilling and Assembly System: Workpiece Dimensions: Length: 250-2500 mm Width: 200-700 mm Thickness: 16-25 mm Cycle Times: Infeed/outfeed: 5-7 sec Drilling: 2 sec Press-fit: 3 sec BAD-DTW-CNC Drilling and Assembly System: Workpiece Dimensions: Length: 218-1600 mm Width: 147-700 mm Thickness: 16-25 mm Cycle Times: Infeed/outfeed: 5-7 sec Drilling: 2 sec Press-in: 3 sec Base feet pressing: 35 sec Automatic Glue Application LA - CNC: Workpiece Dimensions: Length: 257-2500 mm Width: 200-700 mm Thickness: 16-22 mm Working Height: 950 mm Feeding and Turning Device ZWA-1-CNC: Workpiece Dimensions: Height: 257-2500 mm Width: 300-1200 mm Depth: 250-700 mm Working Height: 930 mm KP-6-CNC Carcass Press: Workpiece Dimensions: Height: 257-2500 mm Width: 300-1200 mm Depth: 250-700 mm Max. Side Thickness: 56 mm Working Height: 930 mm
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
