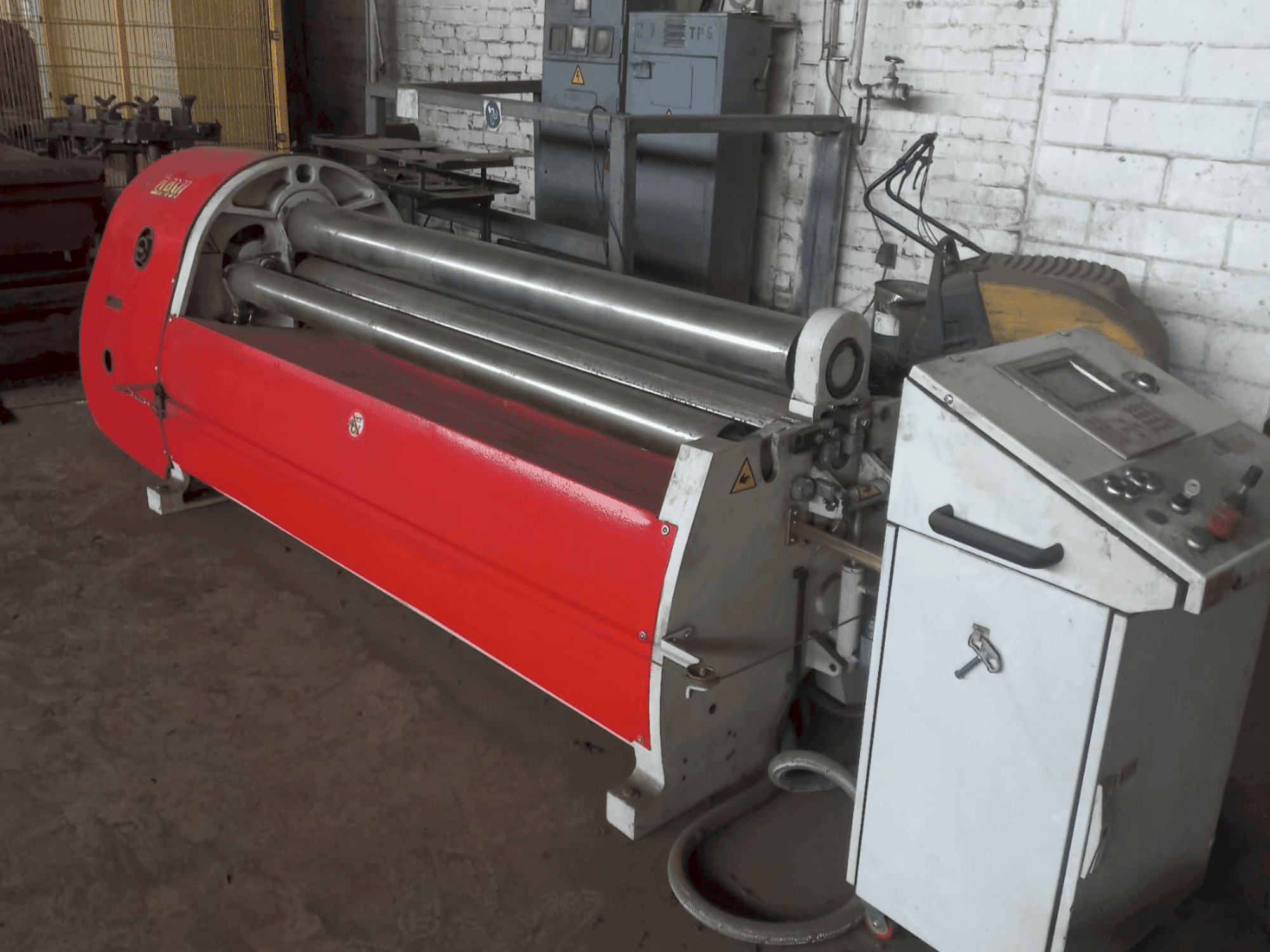

PROMAU - MCA 2017LV-BEN-PRO-2010-00001

• Plate width: 2050 mm

• Rolling thickness: 6 mm

• Pre-bending thickness: 5 mm

• Top roll diameter: 170 mm

• Bottom clamping roll diameter: 160 mm

• Installed power: 4 HP

Features:

• Centralized control console with on/off buttons, emergency stop, analog roll-position indicators, joysticks for all machine functions, pre-set clamping pressure

• Hydraulic yoke/drop end for shell removal

• Full safety system with emergency stop, joystick controls, safety cable

• Rolls made of select and certified high-grade forged carbon steel

• Hydraulic drive on side rolls for precision

• 4-roll design advantages: shortest flat ends via double central rolls; single-pass sequence (pre-bending + rolling in one pass); automatic squaring of plate; hydraulic plate transfer between rolls; suitable for cone rolling

• High degree of automation; suitable for CNC
