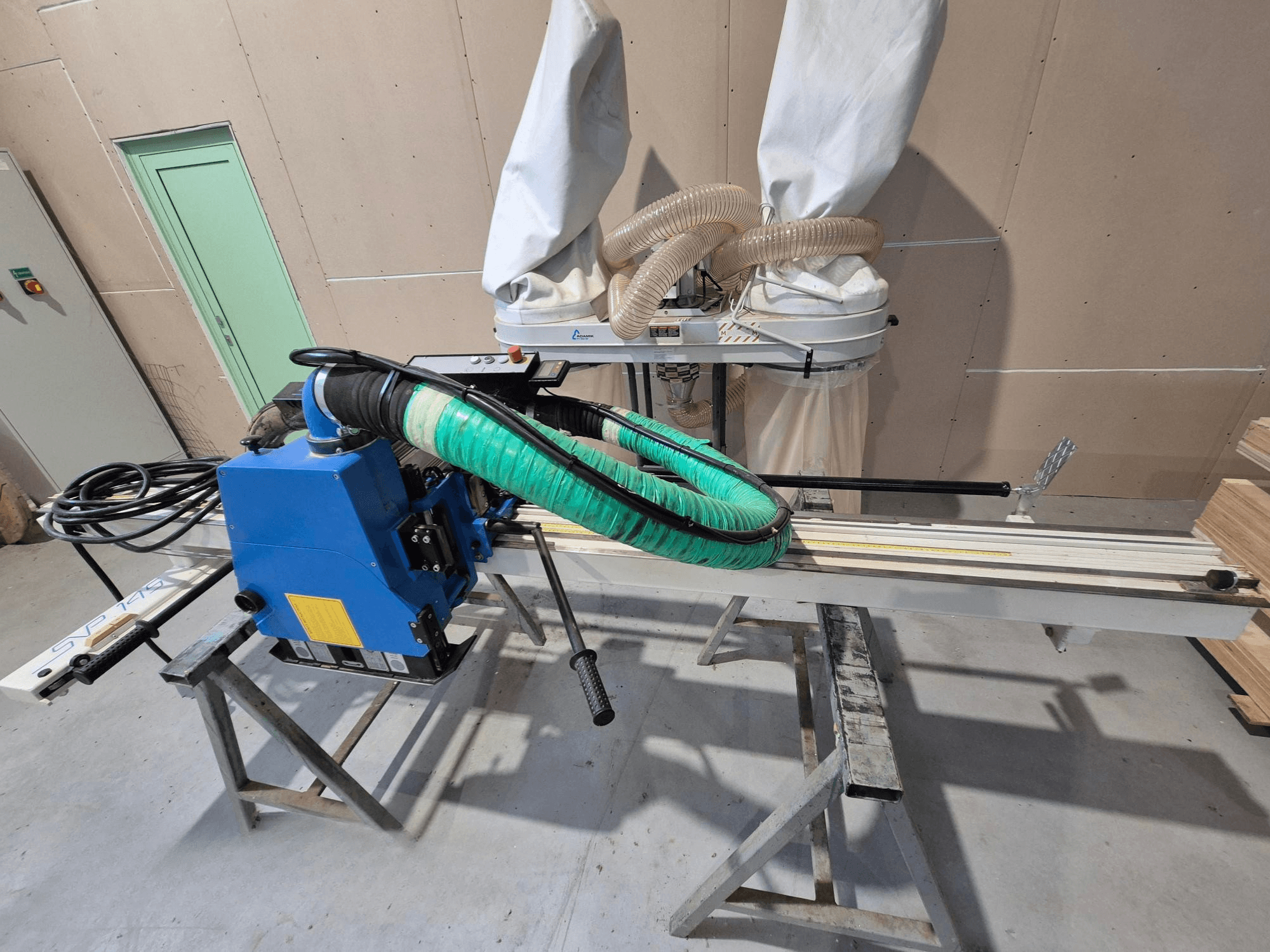

PUTSCH - MENICONI SVP 145 HU-SAW-PUT-2015-00001

Electrical data:

• Nominal voltage: 400 V

• Phases: 3

• Frequency: 50 Hz

• Full load current: approx. 8.4 A

• Maximum load current: approx. 7.6 A

• Protection level: IP54

Cutting capacity:

• Maximum panel length: 4,200 mm

• Maximum panel height: 2,200 mm

• Cutting thickness: 8–60 mm

• Maximum vertical cut height: 2,200 mm; minimum: 250 mm

• Maximum horizontal cut length: 4,200 mm; minimum: 500 mm

• Maximum supported panel weight (aluminium table): 180 kg

Saw blade specifications:

• Blade diameter: 250 mm (minimum 240 mm)

• Bore diameter: 30 mm

• Kerf width: 3.2 mm

• Blade type: HM / HW blades (without insert cutting tips)

Dust extraction (ECO version):

• Extractor nozzle diameter: 100 mm

• Minimum air speed: 20 m/s

• Minimum air flow: 570 m³/h

• Pressure drop: approx. 700 Pa

Noise levels:

• Sound power level (without load): 89.0 dB(A)

• Sound power level (with load): 93.0 dB(A)

• Sound pressure level at workplace (with load): 84.5 dB(A)

Materials:

• Particleboard (raw & laminated)

• MDF

• Plywood

• Decorative laminated panels
