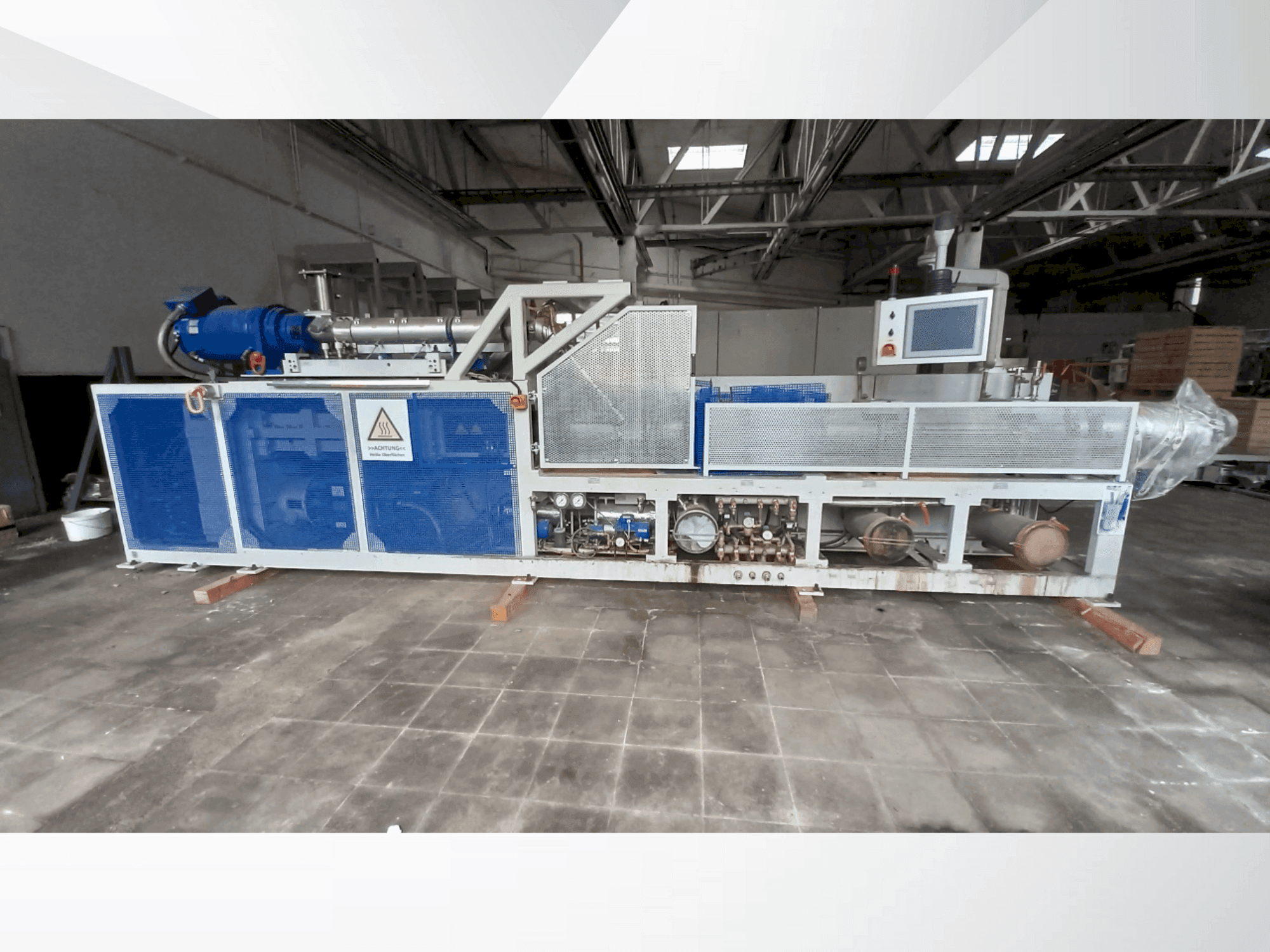

REIFENHÄUSER - BI Trudes 115DE-EXT-REI-2013-00001

Additional equipment

• 2x electrical melt pressure transducer 1/2 “UNF diaphragm pressure transducer
• 2x ground temperature sensor with sword probe

Machine Benefits

Qualitative Machine Benefits

• 13x anchoring for one fixing point installation tool
• Pair of worms, compact version, made of highly tempered steel and bimetal design
• Counter-rotating twin-screw extruder, gearbox with integrated back pressure bearing for 350 bar
• Recirculating oil lubrication with oil pressure and oil temperature monitoring
• Barrel Ø 115-30 d with atmospheric and vacuum degassing openings
• Heating and air cooling divided into 5 zones, total output of 56400 w
• Vacuum unit for bt 115 including 2x vacuum unit and vacuum suction unit
• Complete screw temperature control including cassette installation
• Mains supply with main switch and load disconnector for heating, drives, and auxiliary voltages

Technical Machine Benefits

• Stationary for an extrusion height of 1000 mm
• Complete control cabinet with all necessary control and regulation equipment attached
• Microprocessor-controlled multi-channel controller for two and three-point zones
• Adaptive and self-optimizing control behavior
• Fault messages with collective alarm and storage
• Siemens mp377 touch panel for setpoint specification and actual value display
• Recipe management of up to 20 recipes
• Drive with one ac motor, vector-controlled
• Digital drive controller for ac motors, with full digital technology
• Motor temperature monitoring with pre-warning and shutdown

Extra Information

Machine still under power
