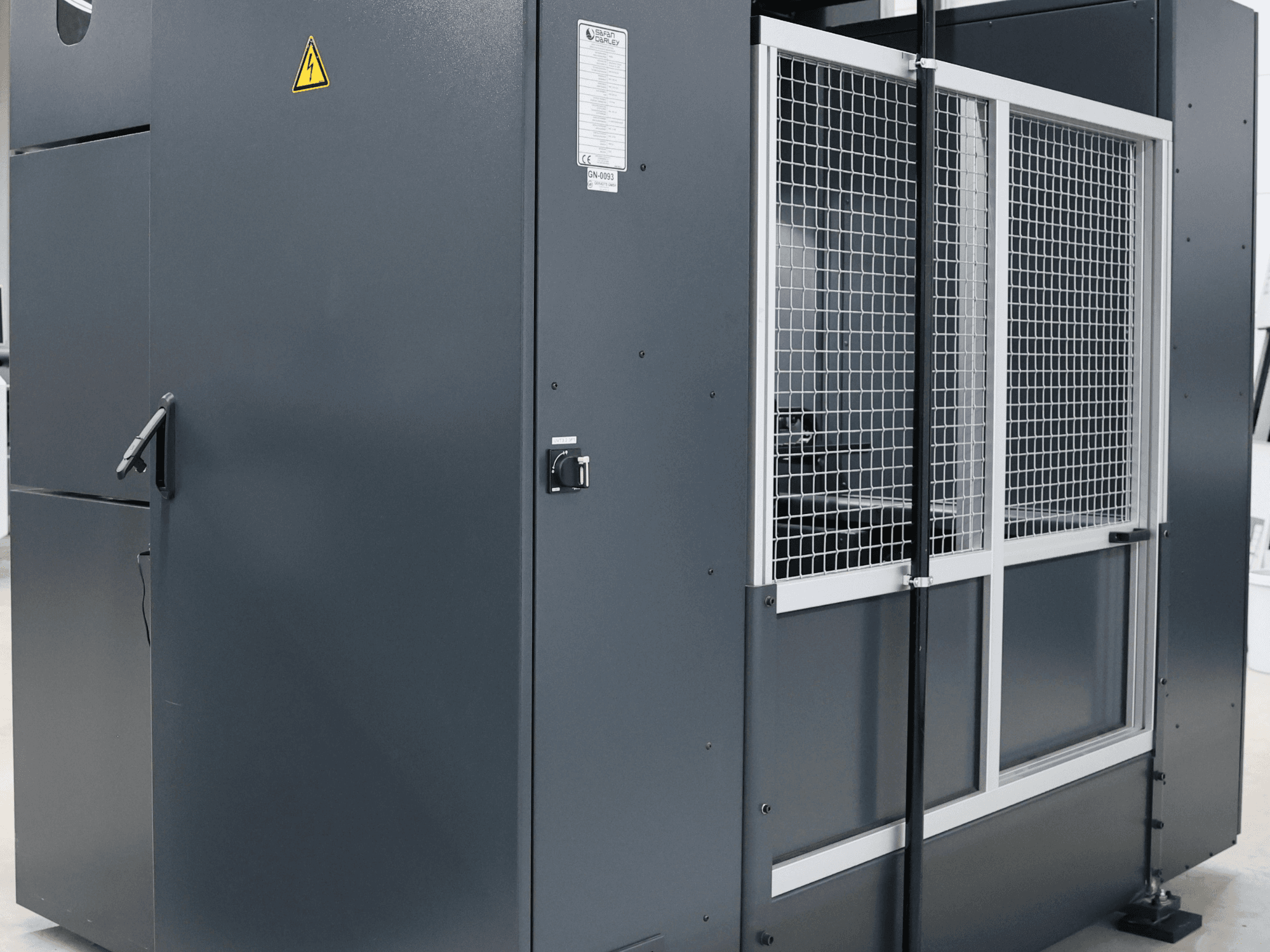

SAFAN - Darley E-Brake PremiumDE-BEN-SAF-2019-00001

• Control and software:

  • EC10 control with split-screen on a height-adjustable swivel arm

  • SafanDarley EC Control with center-mounted swivel arm (operation from either side)

  • Displays DWG, DXF, PDF, JPG, PNG, BMP, WMV

  • German language instructions and HMI

  • EC20 software package for EC10 split-screen incl. EC Profiler with 2D bending simulation

  • Automatic bend sequence calculation and graphical representation for AutoPol and Radan files

• Axes and travels:

  • CNC-controlled Y1/Y2 (stroke 300 mm)

  • CNC-controlled X-axis

  • CNC-controlled R-axis

  • CNC-controlled Z1+Z2 (Type G) with programmable independent lateral adjustment of backgauge fingers

  • CNC-controlled dX-axis on Z2 finger, 100 mm stroke (+/- 50 mm), with hardened 3D backgauge cams

  • Enlarged installation dimension Q = 650 mm, stroke 300 mm

• Tooling and clamping:

  • NSCL-II HC Premium upper tool adapter with hydraulic clamping, hardened surface, incl. hydraulic unit

  • Upper tool working height 80 mm; clamping length 1275 mm

  • OB II HC Premium mounting table with adjustment wedge, hydraulic clamping, hardened surface

  • Mounting table size 110 x 87 x 1275 mm, incl. hydraulic unit

• Measurement:

  • E-Bend S sheet thickness measurement at the Z1 backgauge finger

• Safety and lighting:

  • CNC-programmable safety light curtain

  • Safety equipment compliant with EU Machine Directive MRL/2006/42/EG

  • Front-side work area lighting and rear-side tool lighting

• Ergonomics (machine-integrated):

  • Ergonomic package: lower beam with legroom recess and tilted footrest

  • Foot pedal usable on the footrest or on the floor

• Identification and logistics:

  • Customs tariff number: 8462 2110

  • Main machine weight: 3250 kg; dimensions: 2330 x 1809 x 2649 mm

  • Secondary pallet: 90 kg; 1300 x 800 x 900 mm

Additional equipment

• Ergonomic table system: central segment (height and tilt adjustable) and left/right segments (height adjustable)

• Adjustable chair with seat, footrest, and backrest adjustment on swivel casters

• Left-side material cabinet with five height-adjustable shelves
