- SAMAG TFZ 2L-1000 Drilling machine

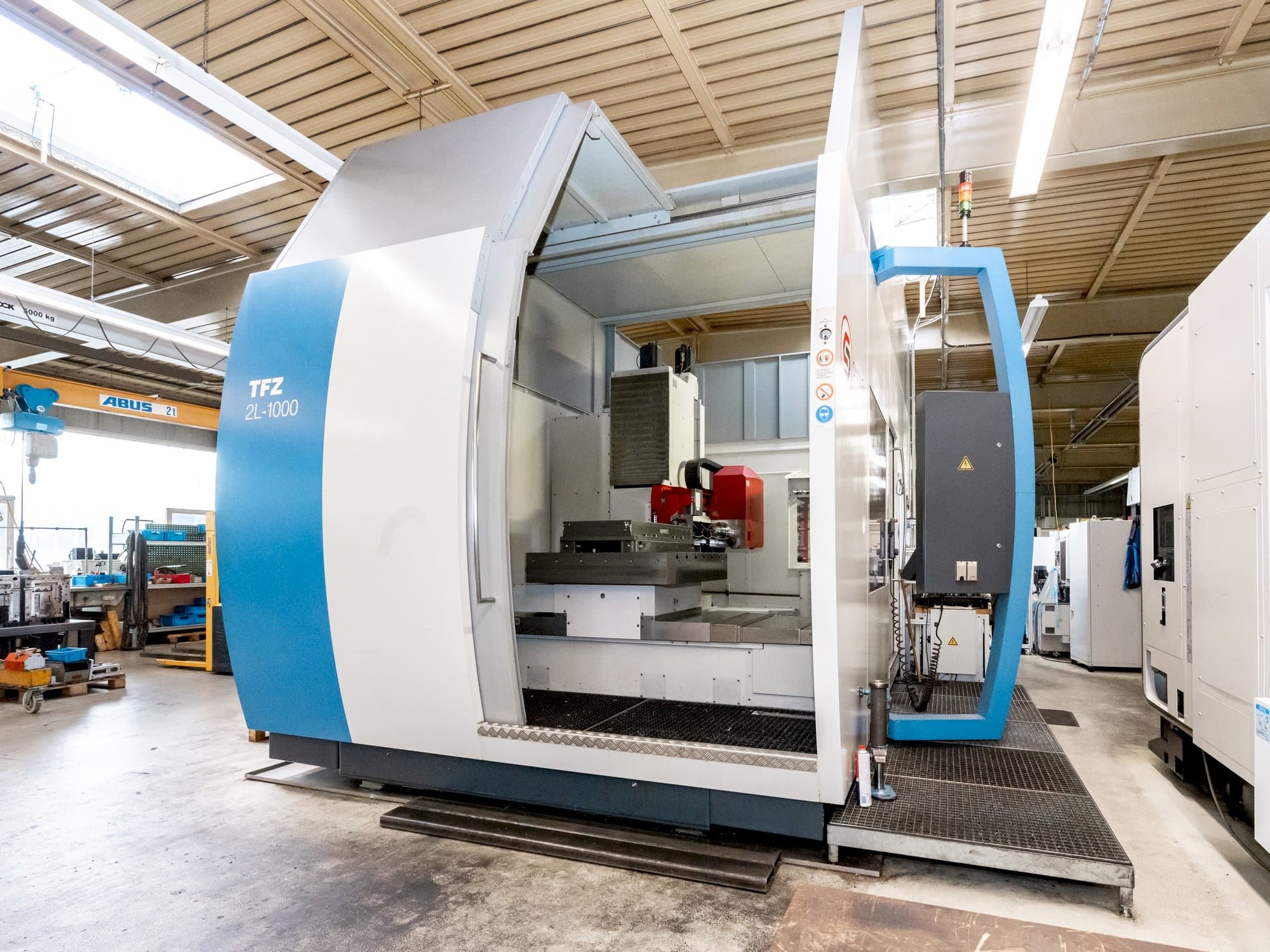

This SAMAG TFZ 2L-1000 Drilling machine was made in 2015 in Germany and has 13585 production hours. It is equipped with a HEIDENHAIN control unit. It has a NC rotary table B-axis with 1100x1100mm (7t) and an a-axis as drilling and milling unit with swivel range -30/+15°. The machine has a reinforced main spindle drive with spindle speed 6000 rpm. As additional equipment it comes with tool changer for ISO 40, low-maintenance oil mist extraction system, traveling support steady rests for drilling diameters up to 25.5mm, drip tray with step grate for X-axis 1600mm and rinsing gun.
Resumen
- marca: SAMAG
- año: 2015
- MODELO: TFZ 2L-1000
- horas de producción: 13585
- tipo de aplicación: Otras máquinas herramienta
- Ubicación: Alemania
- tipo de máquina: Taladradora (Metal)
- Marca de unidad de control: HEIDENHAIN
Información técnica - SAMAG TFZ 2L-1000
Unidad de Control
- Marca del control: HEIDENHAIN
Dimensiones
- Peso de la máquina: 30000 kg
Recorrido
- Recorrido eje X: 1600 mm
- Recorrido eje Y: 1050 mm
- Recorrido eje Z: 1100 mm
Especificación Técnica
- Peso máximo de herramienta: 5 kg
- Velocidad del husillo: 6000 RPM
- Tamaño del cono: ISO 40
Información adicional
Additional equipment
- tool changer for ISO 40
- low-maintenance oil mist extraction system
- rinsing gun
- drip tray with step grate for X-axis 1600mm
- traveling support steady rests for drilling diameters up to 25.5mm
- Various drills (single-lip drills and indexable insert drills): Drill grinding machine / CAM software licence: GIBcam-DRILL software. (A fee could be charged for the transfer of the licence, this has to be clarified with GIBCAM. the buyer is responsible for the transfer.).
- Optional for extra charge: Magnetic clamping plate with its own control cabinet (SAV brand, www.sav.de, dimensions 1200x600mm).
Machine Benefits
Qualitative Machine Benefits
- Reinforced main spindle drive
Technical Machine Benefits
- Travel x-axis 1600mm
- Nc rotary table b-axis 1100x1100mm, 7t
- A-axis; drilling and milling unit; swivel range -30/+15°
- Max. Tool length 250mm
- Max. Tool weight 5kg
- Calibration ball diameter 25mm
Extra Information
Scope of delivery: Machine and measuring probe. WxDxH with electrical cabinet approx. 6300x7400x4050mm // weight with electric cabinet 30.000kg.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
