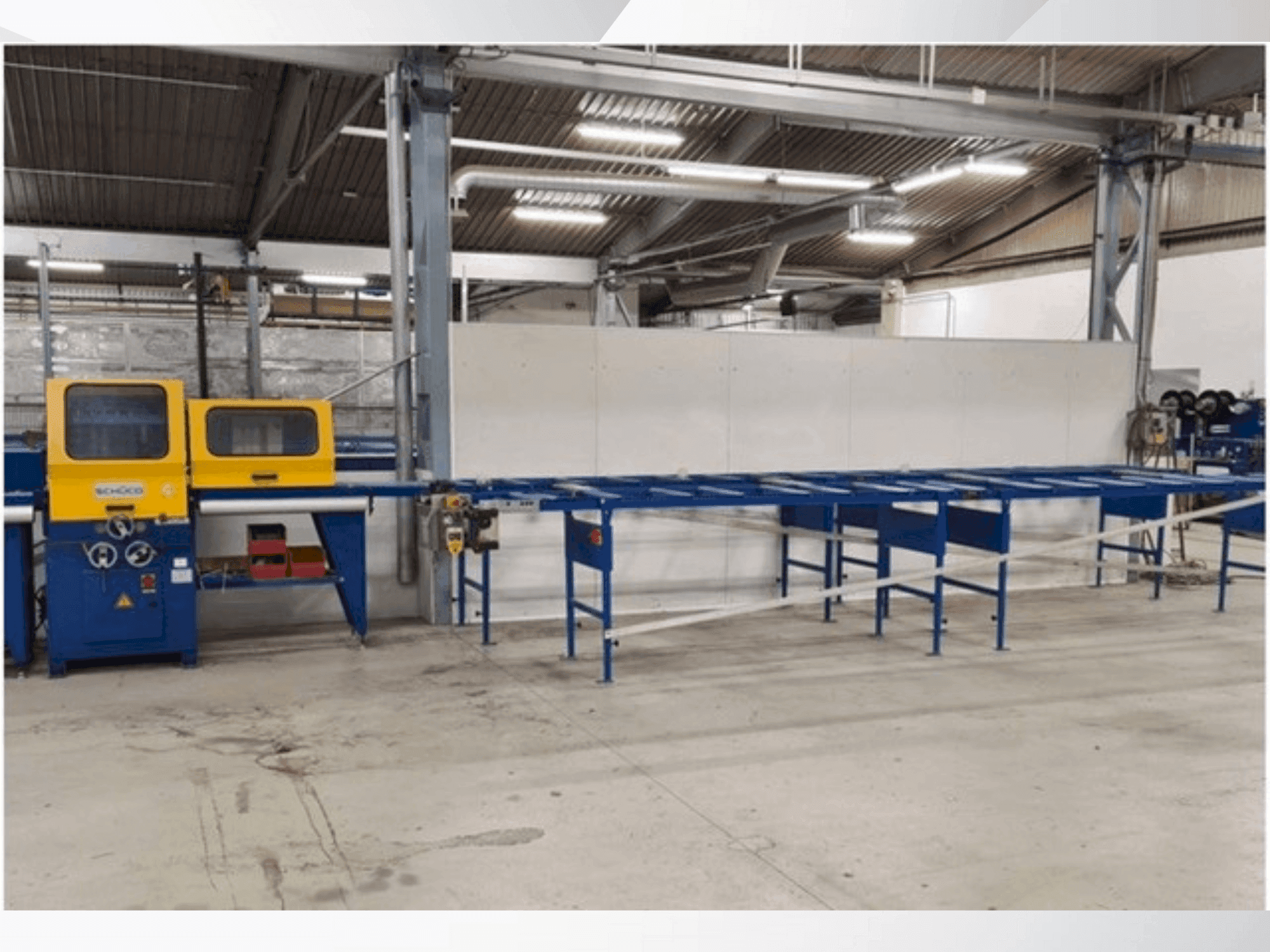

SCHÜCO - ISOMAT 5HU-OTH-SCH-2009-00001

Machine Benefits

Qualitative Machine Benefits

• The guide roller assembly is 1700 mm long.

Technical Machine Benefits

• Precise type: 400v / 50hz / 3. 0 amp / 1. 1kw
• The machine is designed for rolling the schüco aws / ads system profile components together with the insulating bars.
• Capable of rolling down angles on various profiles from schüco façade and skylight constructions.
• Equipped with 10 lateral guide rollers and space for adding 2 more.
• Features a quick release mechanism on all guide rollers, 4 drive shafts for pressure rollers, and 2 drive shafts for guide rollers.
• Can process profile depths up to 250 mm, profile heights up to 400 mm, and distance between insulating bars max. 300 mm.
• Includes ergonomically designed operating controls and an electrical control panel.
• Safety features include a safety cage and guide roller assembly as a single unit, designed for optimal safety and to ensure the profiles are kept straight.
• Paint finish options: ral 9006 (white aluminium), ral 7016 (anthracite grey)
• The safety cage is 800 mm long on a roller track 1000 mm long.

Extra Information

Machine still under power
