SCHÜCO - MFM DC 500DE-MIL-SCH-2009-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used SCHÜCO MFM DC 500 For Sale | gindumac.com

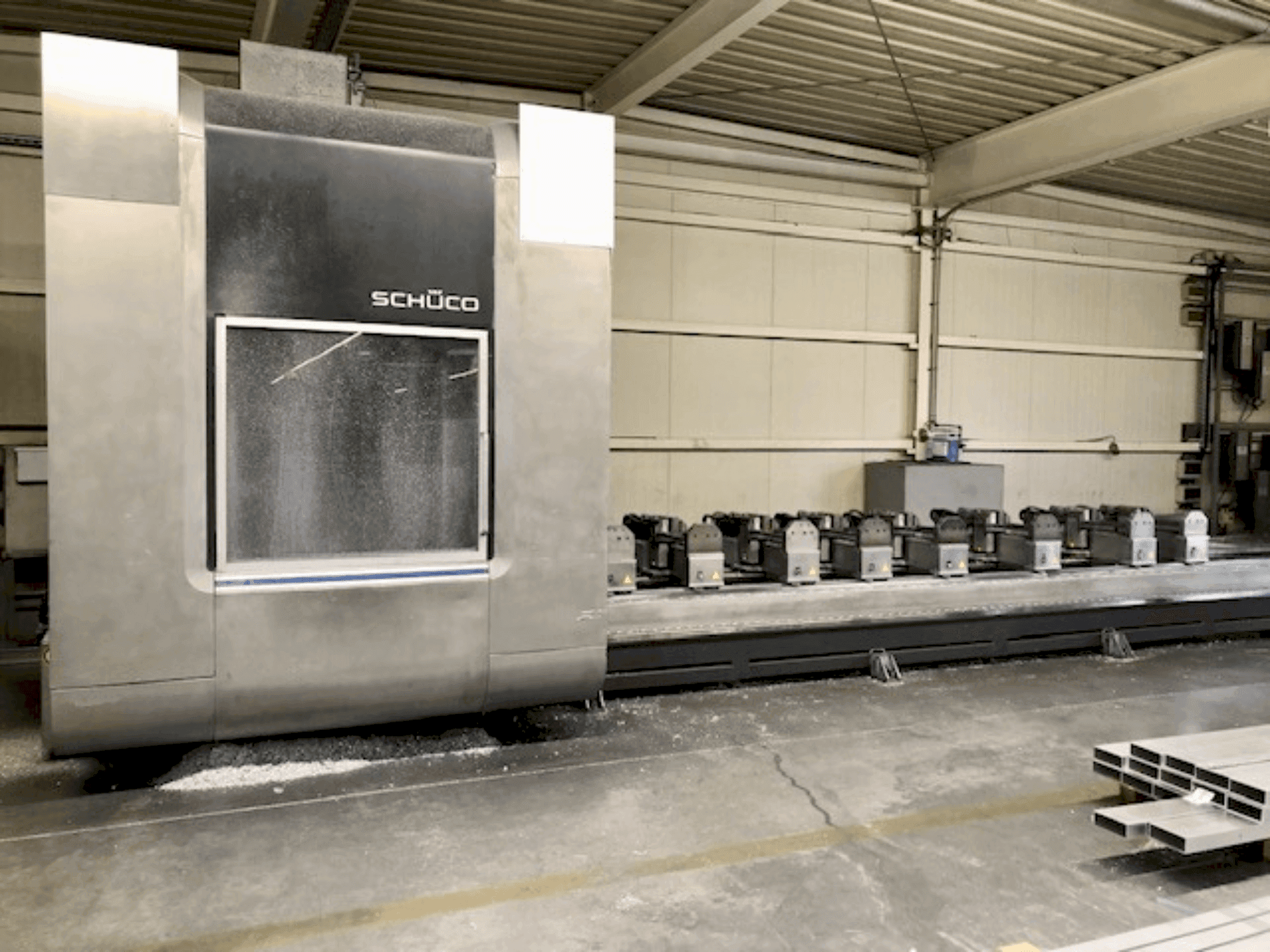

This 5-axis SCHÜCO MFM DC 500 vertical machining center was manufactured in 2009. It features a high-capacity tool magazine with 16 spaces, automatic clamping, and a robust milling motor output of 16 kW. The machine can handle a maximum processing length of 7500 mm and speeds up to 60 m/min in X/Y axes. Ideal for complex, multi-axis tasks, the SCHÜCO MFM DC 500 vertical machining center we have for sale is equipped with a 19” touch TFT color display. Contact us for more information.
Resumen
- marca: SCHÜCO
- año: 2009
- MODELO: MFM DC 500
- horas de producción: 40000
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
Información técnica - SCHÜCO MFM DC 500
Especificación Técnica
- Potencia del husillo: 16 kW
- Velocidad del husillo: 24000 RPM
Información adicional
Additional equipment
- Automatic central lubrication: SPC driven
- Air conditioning unit
- Control panel: 19” touch TFT colour display
- Software: SchüCam
- 500 mm saw blade in a 5-axis spindle"
- also suitable for PVC profiles
Machine Benefits
Qualitative Machine Benefits
- Profile supports with quick release system
- Max. Cross section (w x h) / length – single bar processing: 400 x 300 / 7500 mm (for 200 mm tool length)
- Min. Cross section (w x h) / length – single bar processing: 30 x 30 / 300 mm (for 200 mm tool length)
- Max. Number of profiles per machine: up to 8 bars (depending on individual bar lengths)
- Number of fixed profile stops: 1
- Changing the clamps in 2 operations: automatic
- Finish: ral 9006 (white aluminium), ral 7016 (anthracite grey)
- A saw is integrated and each part can also be cut to size after processing.
Technical Machine Benefits
- Number of controlled nc axes: 14
- Processing length: 7500 mm
- Rotation of a axis: continuously from +110° to -110°
- Rotation of c axis: continuously from +220° to -220°
- Number of spaces in moving tool magazine: 16
- Number of special positions for tools: 2
- Automatic clamping
- Number of clamps: 8 - 12
- High-speed processing with a maximum speed of 24,000 rpm
- Capable of processing steel up to a wall thickness of 5 mm
Extra Information
Machine still under power
