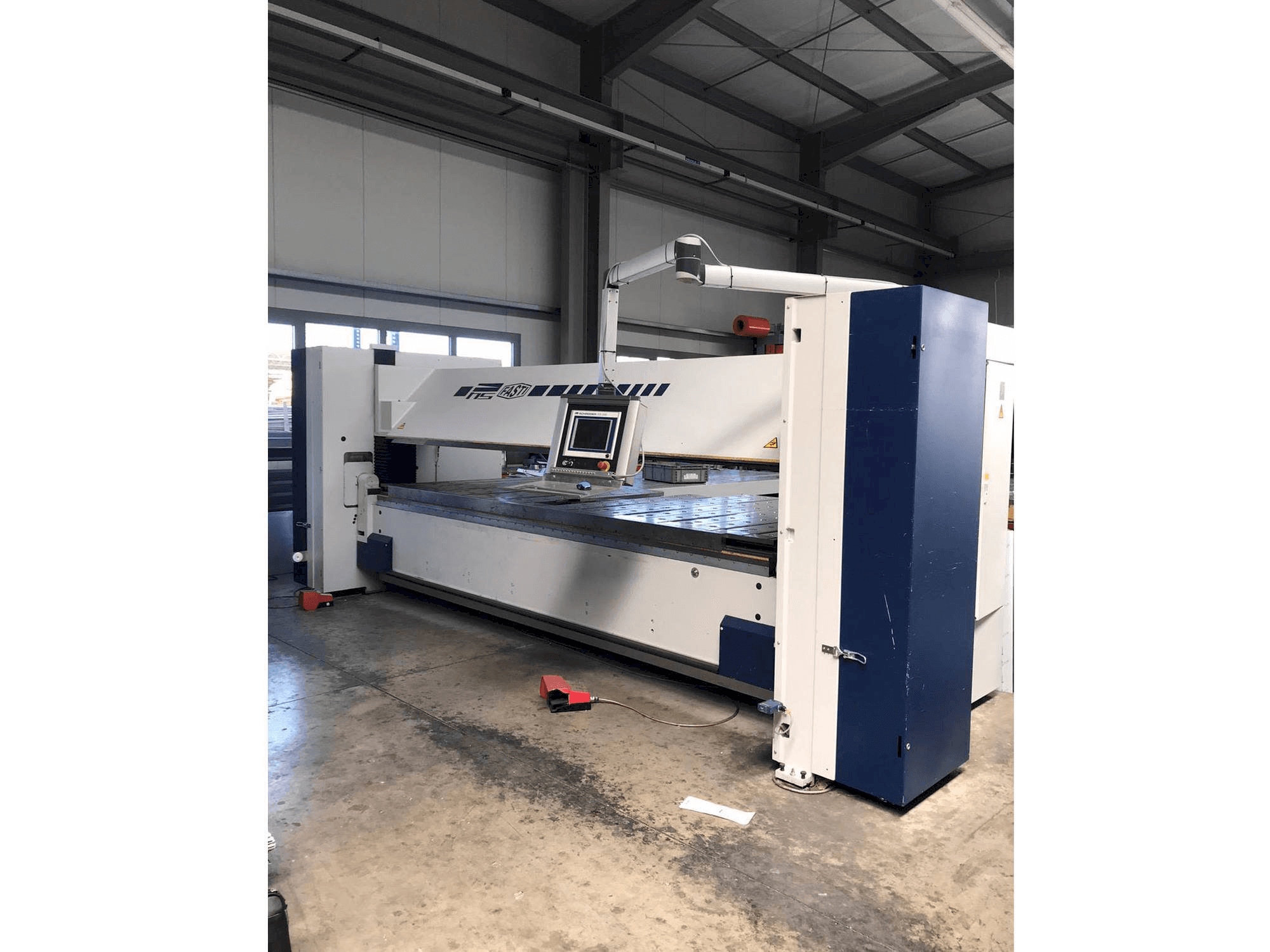

SCHRODER-FASTI - FP 60-40/4DE-BEN-SCH-2011-00001

Machine Benefits

Technical Machine Benefits

• 4mm length 4000 mm
• 6 mm length 3000 mm
• Ow stroke: 500 mm
• Ow speed: 60 mm/s ; bw-speed: 60º/s
• Bw-adjustment: 80 mm; bm-adjustment +/ -40 mm
• Bw/bm-verst-speed: 2. 7 mm/s
• Motorised adjustment 0-80 mm
• Pitch segm. - ow r= 0. 50 mm wzs2000 ca. 1000 n/mm
• Goat's foot seg. Ow c l 200 r= 0. 50 mm h=120 mm approx. 1000 n/mm2 ; a= 45mm b= 85mm 30º length (1x) = 200 mm
