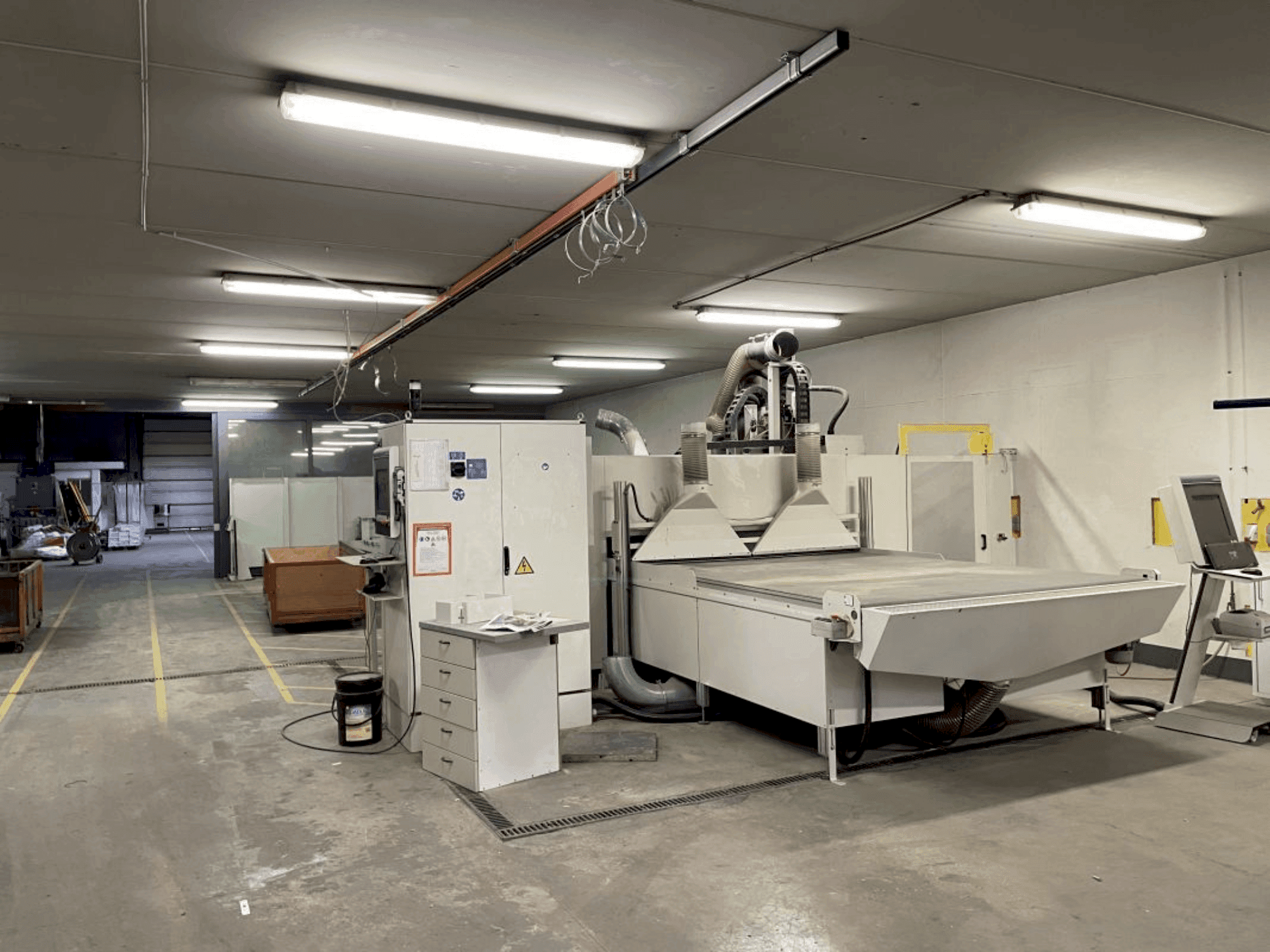

SCM - Morbidelli Author M400BE-WOO-SCM-2016-00001

Additional equipment

• Mobile remote control "TecPad" with cable and 7" color screen
• Central optimized dust protection
• F18L drilling head with inverter and pressure tank
• milling spindle 5 axes Prisma 5 KS with 12 kW with power cooling
• automatic change R16
• 1 tool holder cone HSK-63 with collet ER-32 automatic central lubrication
• Conveyor belt for unloading workpieces 4250 x 2100 mm
• Extraction set in the unloading zone
• Manual labeling station
• Air blower for tools

Machine Benefits

Qualitative Machine Benefits

• Multifunctional work table made of aluminum automatic lifting table, loading system with vent pipes, pusher and carpet
• Teleservice via the internet
• Rapid 16 magazine mobile at the rear of the gantry
• Work table divided into 8 vacuum zones
• Closed drag chain at the rear of the machine

Technical Machine Benefits

• Processing area = 4970x2120 mm
• For discharge* folding stops for zones "a" and "d" controlled by nc
• Vacuum pump 250 mp 50 hz / vacuum circuit with high capacity of 750 m/h at 50 hz
• Preparation for 2 additional vacuum pumps
• Xilog maestrotelesolve programming software
• Loading platform for panels of 4250 x 2120 mm
• Automatic loading, unloading and cleaning system for panels y=2120 mm
• Basic prisma ks milling motor with 12 kw (s6) - "speed"
• F18l drilling unit
• Special conditions:* customer voltage: 3 x 380

Extra Information

Excluding cutting tools and accessories for dust extraction, unless expressly stated in the order confirmation.
