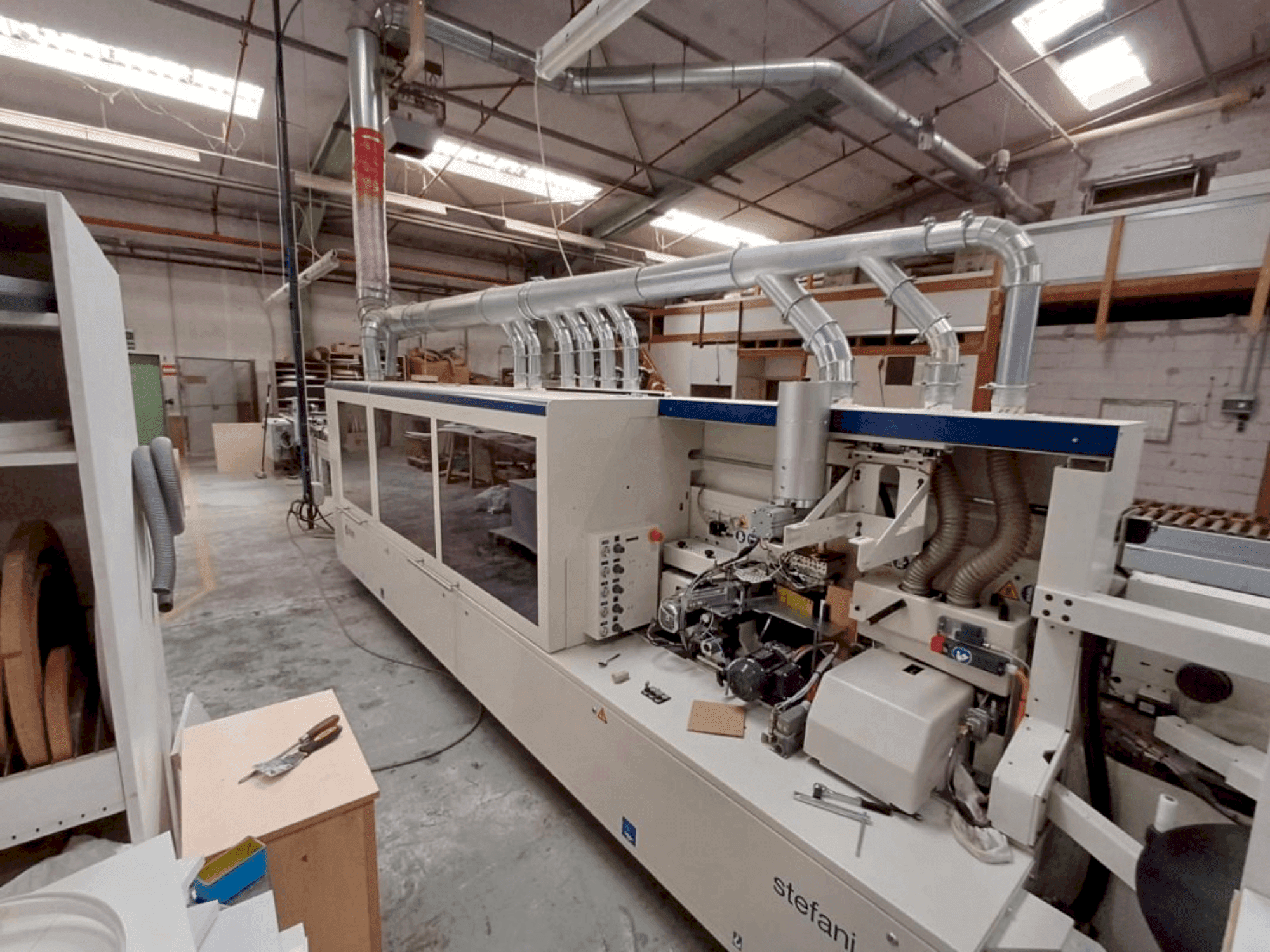

This SCM Stefani MD RM edgebander was manufactured in 2022. It features adjustable chain feed speeds of 10-22 m/min and handles edge thicknesses up to 15 mm. Equipped with a pre-milling unit, glue unit with quick-change capabilities, and a cutting unit for precise edge finishing. The Maestro active edge control system enhances user interaction for optimal performance. If you are looking to get high-quality edgebanding capabilities consider the SCM Stefani MD RM machine we have for sale. Contact us for more information.
Resumen
- marca: SCM
- año: 2022
- MODELO: STEFANI MD RM
- tipo de aplicación: Canteado
- Ubicación: Alemania
- tipo de máquina: Bordeadora
Información adicional
Additional equipment
- Anti-adhesive spray unit "AAR" - Complete with 2 sprayers and a storage container
- Spray device for finishing the edge
- Top pressure with belt
- Motors with power 4 kW for RT/E pre-milling unit
- "SGP" glue container with NC dosing
- Ceramic lamps with infrared rays
- "MultiEdge" device for the RI/S flush milling unit
Machine Benefits
Qualitative Machine Benefits
- Cutting unit "k/sel" motor power (each): 0. 35 kw saw blade speed: 12,000 rpm automatic saw blade swivel range: 0°-15°
- Rounding unit "round sk" motor power: 0. 55 kw milling speed: 12,000 rpm
- "ras/1000" scraper unit
- "spn" buffing unit two independent motors
Technical Machine Benefits
- Adjustable chain feed speed: 10-22 m/min
- Thickness of the strip edge: 0. 3-15 mm
- Thickness of the roll edge: 0. 3-3 mm
- Max. Feed speed with solid wood edges > 6 mm: 12 m/min
- Max. Roll goods diameter: 780 mm
- "maestro active edge" control system
- "eye-m" control console with integrated pc
- 21. 5" color lcd display
- Pre-milling unit "rt-e" motor power (each): 2. 2 kw cutter speed: 9,000 rpm
- Glue unit "vc-s4. 1/qms-p" sgp glue container
Extra Information
Machine still under power
