Soraluce - TA-35AHR-MIL-SOR-2015-00002

Machine Benefits

Qualitative Machine Benefits

• Hydraulic weight compensation directly acting on the vertical slide.

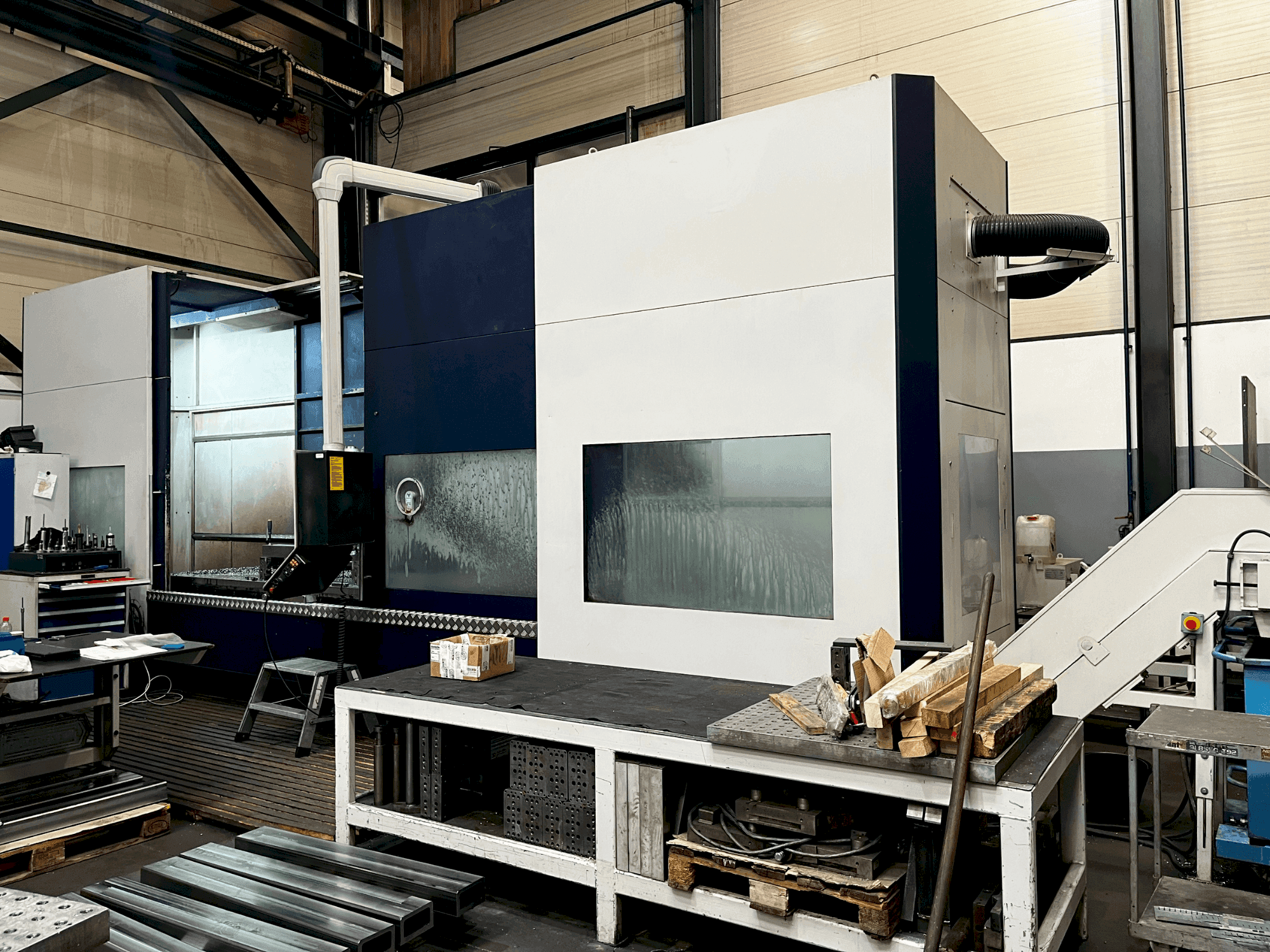

• Complete splash guard enclosure with a height of 2,600 mm. Consisting of two front doors and one rear door for operating the machine from the front and rear. All doors and walls are equipped with a total of 7 windows.
• Spindle orientation and thread cutting without compensating chuck.
• Heidenhain ac drive motors in all axes with digital drive technology.
• Ina linear roller guide system rue45-e-l in all axes // automatic centralized lubrication with pressure and time monitoring for all axis and motion components // ball screw drives (it5) in all axes // direct linear measuring system by heidenhain in all axes.
• Telescopic covers for the guides of the x-axis.
• Electrical equipment by siemens.
• Hydraulic system by vickers.
• Workspace lighting (as per ossberger).
• Painting ral 5011 (steel blue), ral 7035 (light gray)

Technical Machine Benefits

• T-slots 6 x 22 h12 // reference slot 1 x 22 // h8 t-slot spacing 140 mm
• Tool holder (option) iso 50, din 69871 ad
• Feed range: x-, y-, z-axis 10 - 10000 mm/min // max. Feed speed: x-, y-, z-axis 25000 mm/min // max. Feed force: x-, y-, z-axis 10000 n // average acceleration 2 m/s2
• Control heidenhain itnc 530 hsci (3 axes + spindle), including 19" flat screen, metallic keyboard with integrated mouse, and usb interface at the control panel. Processor speed 0. 5 ms including heidenhain smart. Nc // rotatable control pendant with join // torque 479 nm
• Interpolation turning with heidenhain itnc 530 consisting of cam system, heidenhain post-processor, software adaptation c-axis (spindle)
• Portable electronic handwheel heidenhain hr 410 with 3 m spiral cable
• Automatically indexing milling head with 2. 5° x 2. 5° division and speeds up to 4000 min-1, 28 kw, 479 nm, including air cooling/oil mist lubrication, tool clamping force 20,000 n, tool holder iso 50 - din 69871 a (h200), not required when selecting milling head h210.
• Cooling lubricant system external cooling (kv 1 / standard) with 250 l tank volume, delivery pressure 5 bar, delivery rate 50 l/min, chamber filter system with micro ventilator and oil belt skimmer with integrated timers, outlet at the milling head via shower ring (d9)
• Complete set of fixators (short anchor screws).
• Teleservice (tel10): remote diagnosis via remote control software (internet) or via vpn software/router (internet).

Extra Information

2 sets of documentation (1 x paper and 1 x CD-Rom) // 3D model of the machine in .step or .iges format.
