➤ Used SUMITOMO SHI DEMAG El-Exis S 250/630-1450 For Sale

Mostrar en idioma original

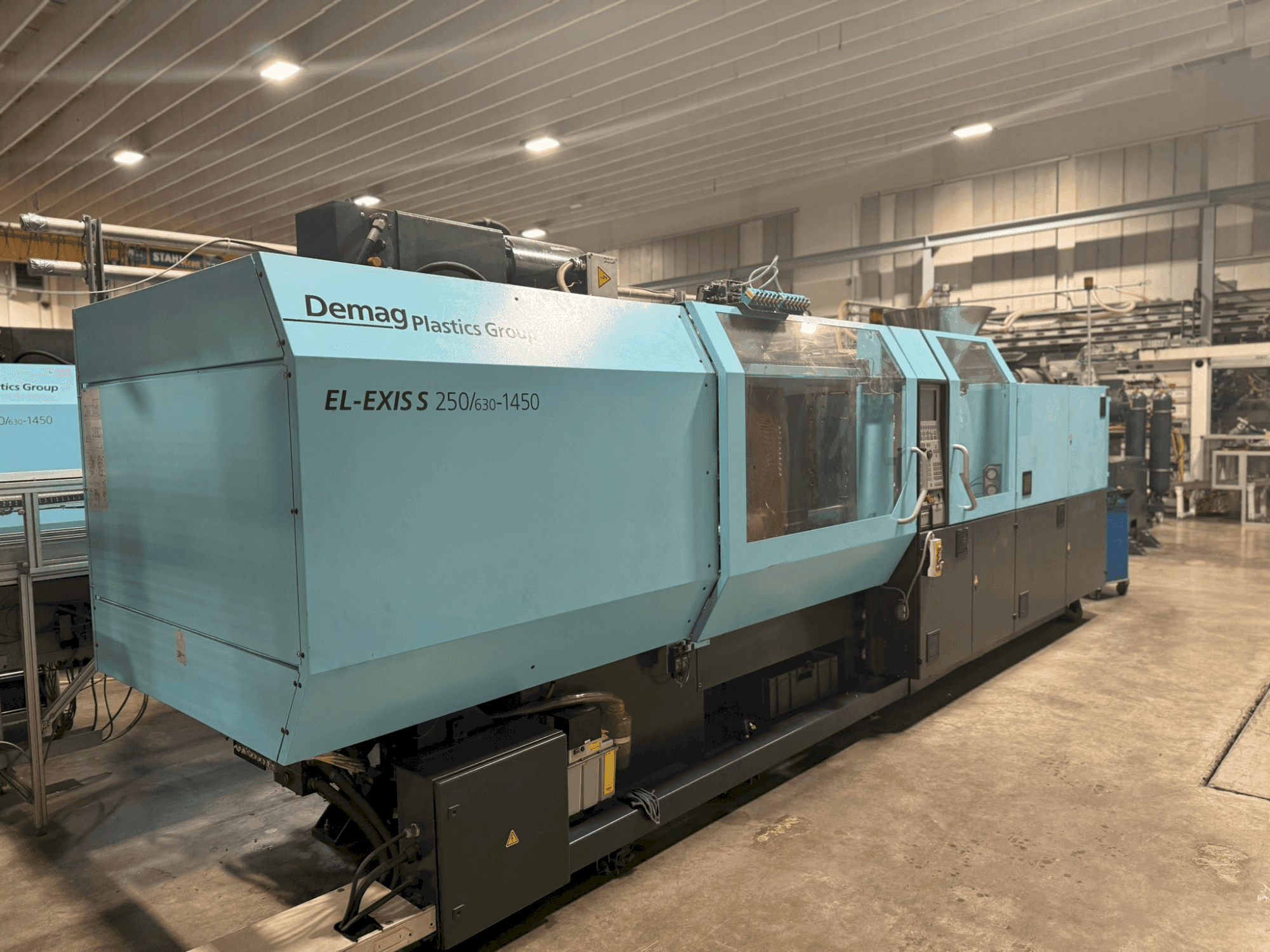

This SUMITOMO SHI DEMAG El-Exis S 250/630-1450 was manufactured in 2005. It features a central accumulator for high-speed injection and chromed tie bars. The pump drive power is 22.0 kW, with a mains voltage of 400 V/50 Hz. It includes a color data display with VGA interface, an oil cooler, and electric screw drive. Consider the opportunity to buy this SUMITOMO SHI DEMAG El-Exis S 250/630-1450 hydraulic injection moulding machine. Contact us for more information.

Resumen

marca: SUMITOMO SHI DEMAG
año: 2005
MODELO: El-Exis S 250/630-1450
tipo de aplicación: Moldeo por inyección
Ubicación: Alemania
tipo de máquina: Máquina de moldeo por inyección hidráulica

Información adicional

5x similar units available
Central accumulator for high-speed injection; core, ejector, and nozzle movement
Nozzle movement parallel to mold movement
Chromed tie bars on clamping unit
Pump drive power: 22.0 kW
Mains voltage: 400 V / 50 Hz, 3 Ph + N + PE
Separate mains connections for drive and heating
Control: color data display with VGA interface and AT keyboard interface
Injection, holding pressure, and back pressure via servo valve
Reinforced oil cooler
Separate water connections for mold and oil cooling
Compliance: Basic version Europe, according to valid safety regulations
Painting: Bottom anthracite grey RAL 7016; Top blue 571C MD
Elastic machine mounting
Ultrasonic displacement measuring system with digital data transmission for injection, ejector, mold (WZ), and nozzle (AWH) movements; 1/100 mm resolution for injection axis
Reduced centering diameter (D=100/125) for fixed mold platen
Mold connection dimensions type E (similar to EUROMAP), without side ejector plate
Standard mold installation height
Safety interlock: mold opening and ejector forward only with closed safety door
Ejector with position control via proportional valve; pressure and velocity independently programmable
Electric screw drive, frequency-controlled
