Tacchella - Proflex 3DE-GRI-TAC-2007-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used Tacchella Proflex 3 For Sale | gindumac.com

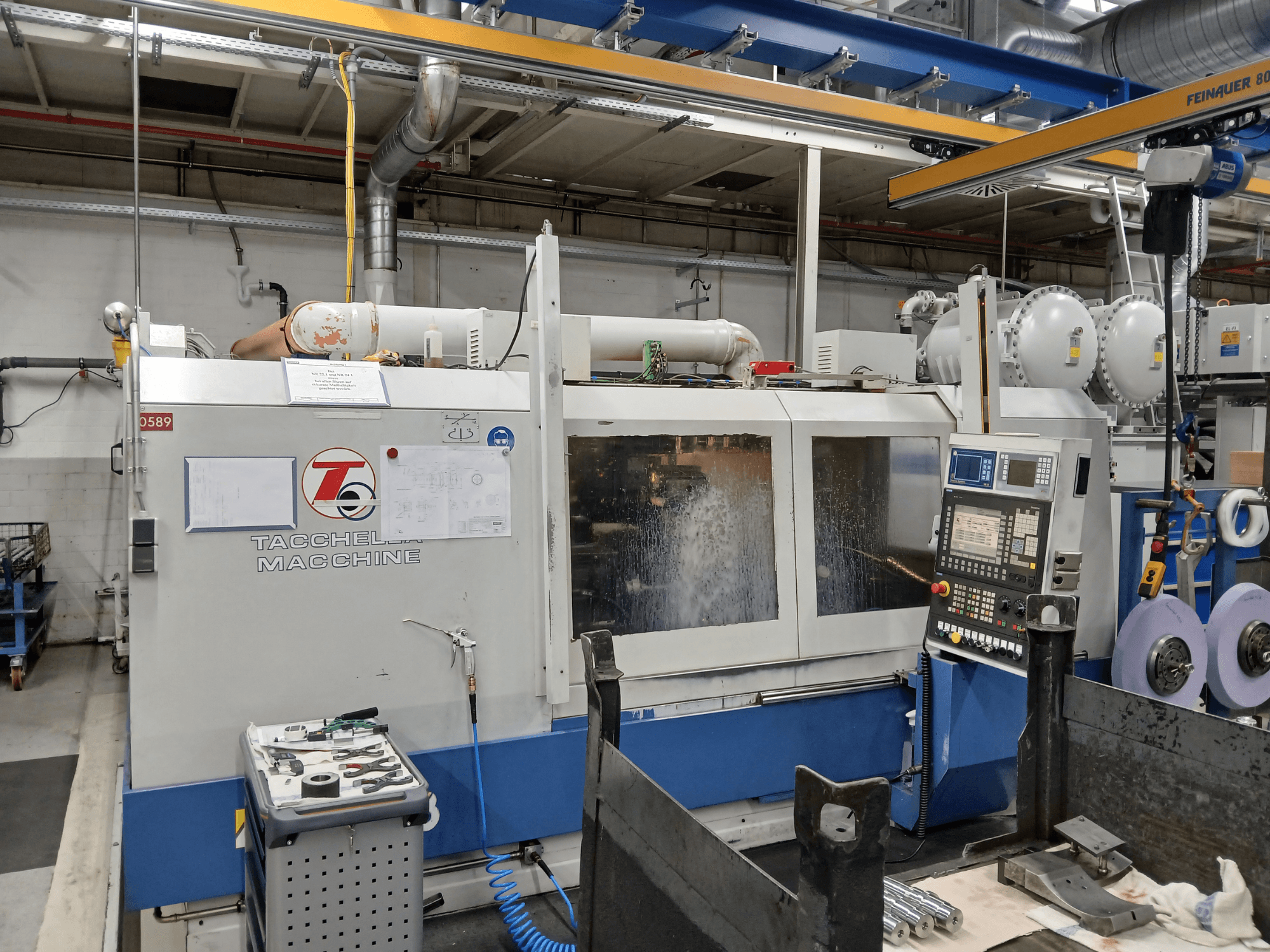

This 4-axis Tacchella Proflex 3 cylindrical grinding machine was manufactured in 2007. It features a grinding length of 1200 mm, a max grinding diameter of 350 mm, and a total load capacity of 47 kW. The machine is equipped with a Siemens Sinumerik 840D control system, ensuring precise and efficient operations. If you are looking to get high-quality grinding capabilities, consider the Tacchella Proflex 3 machine we have for sale. Contact us for more information.
Resumen
- marca: Tacchella
- año: 2007
- MODELO: Proflex 3
- tipo de aplicación: Rectificado
- Ubicación: Alemania
- tipo de máquina: Rectificadora Cilíndrica
Información técnica - Tacchella Proflex 3
Dimensiones
- Peso de la máquina: 9600 kg
Recorrido
- Número de ejes: 4
- Recorrido eje X: 350 mm
- Recorrido eje Z: 1750 mm
Información adicional
Distance between centres: 1600 mm
Grinding length: 1200 mm
Centre height: 180 mm
Max. grinding diameter: 350 mm
Max. workpiece weight: 250 kg
Total load: 47 kW
Total axes: 4 (X, Z, B, C)
X-axis: stroke 350 mm; rapid 20,000 mm/min; resolution 0.0001 mm
Z-axis: stroke 1750 mm; rapid 20,000 mm/min
B-axis (wheelhead swivel): -30° to +210°; resolution 0.001°
C-axis (headstock): variable speed; angular control
Wheelhead: turret for 3 wheels; 2 spindles 15/11.5 kW; air cushion; coolant; optional 63 m/s
Front grinding wheel: 610×100×203.2 mm; 50 m/s; 15 kW
Rear wheel (thread/plunge): 508×80×203.2 mm; 50 m/s; 11.5 kW
Headstock: C-axis drive; 15 kW spindle; 100 Nm torque; water-cooled
Tailstock: hydraulic; quill 100 mm; self-aligning; adjustable centre pressure
Dressing: tailstock dresser; optional headstock dresser; programmable diamond roll
Measuring: in-process diameter and length gauges
Hydraulic: auxiliary unit with filter/flow monitor
Coolant: main and bed flushing circuits; full enclosure; safety interlocks
CNC control: Siemens Sinumerik 840D OP12; 2.5 MB CNC; 128 kB PLC; Pentium III PC; Windows XP; multiple interfaces
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
