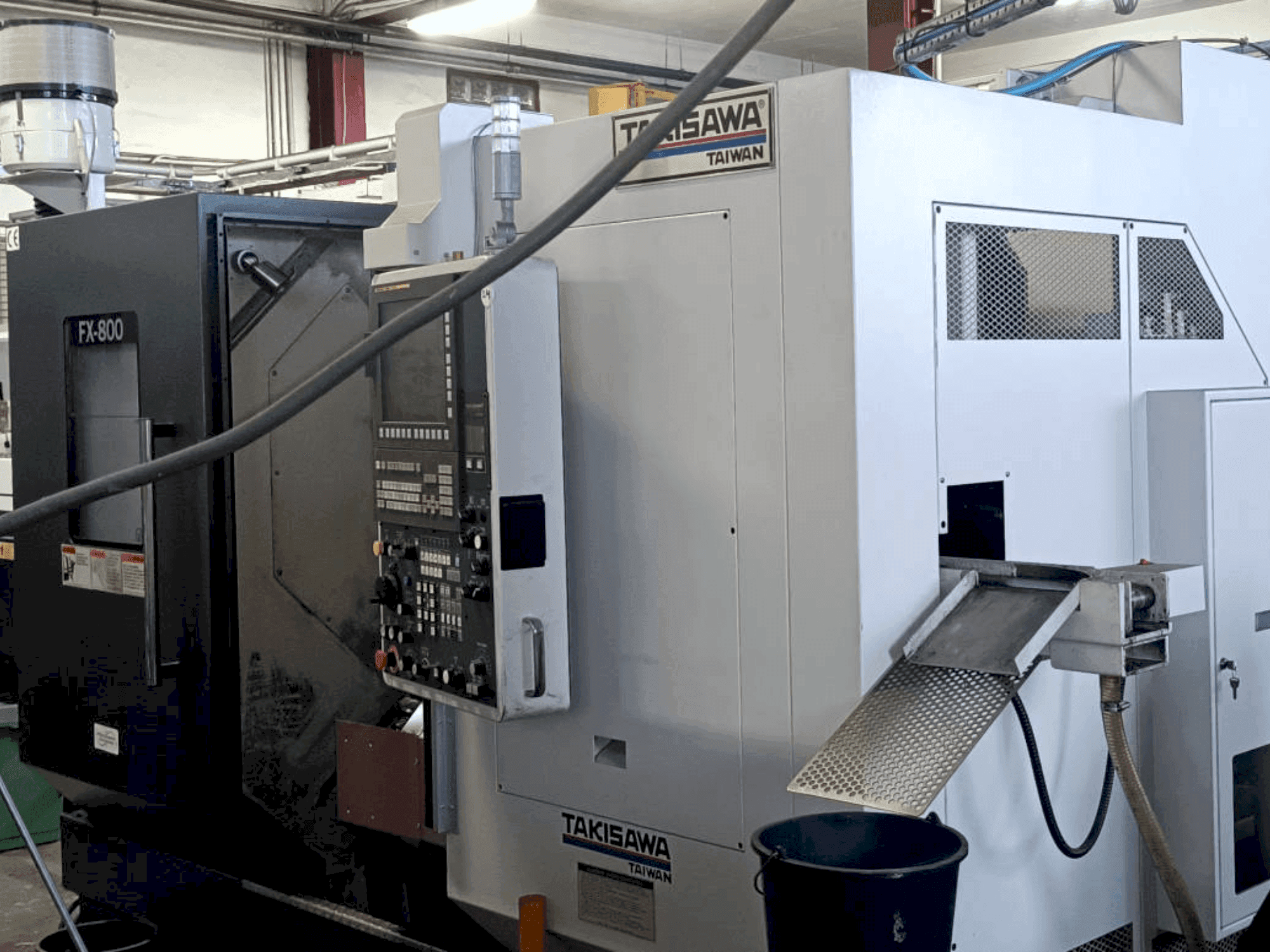

This 8-axis Takisawa FX800 was manufactured in 2017, a robust horizontal turning machine featuring dual spindles and two 16-position turrets, one with a Y-axis. It supports bar work up to 1500 mm and includes a bar loader, parts removal unit, and chip conveyor. Ideal for high-volume, precision turning operations. If you are looking to get high-quality turning capabilities, consider the Takisawa FX800 machine we have for sale. Contact us for more information about this machine.
Resumen
- marca: Takisawa
- año: 2017
- MODELO: FX800
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
- Marca de unidad de control: FANUC
Información técnica - Takisawa FX800
Unidad de Control
- Marca del control: FANUC
- Modelo del control: Oi TF with Ethernet connection
Dimensiones
- Profundidad de la máquina: 5530 mm
- Altura de la máquina: 2340 mm
- Peso de la máquina: 12300 kg
Recorrido
- Número de ejes: 8
Especificación Técnica
- Potencia del husillo: 15 kW
- Velocidad del husillo: 5000 RPM
Información adicional
Additional equipment
- Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
- Clamping cylinders with clamping sleeves
- Bar loader for 1500 mm bars with adjustable options
- Parts removal unit up to Ø65 mm with conveyor belt
- Coolant pumps (9 bar)
- Air through the 2nd spindle for blowing and ejection
- Extraction system with filter
- Special parting-off holder for parting blades from EWS
- Various clamping heads SK 65 // Various ER32 collets
- Camera surveillance // Tool monitoring: RAKU RAKU
Machine Benefits
Technical Machine Benefits
- Tool shank size: □25 mm
- Drill bar diameter: Ø40 mm
- 4 driven tool holders (axial), for er32 collet (angle heads) // 4 driven tool holders (radial), for er32 collet
- Power output of driven tools: 3. 7/5. 5 kw each
- Both spindles equipped with a disc brake (parking brake)
- Bar work capabilities up to 1500 mm // bar diameter through the main spindle: Ø65 (Ø67) // bar diameter through the feed spindle: Ø50 (Ø52) (occupied by automatic ejection)
- Camera for machine tool interior with sapphire lens and durable housing // real-time monitoring with optional touchscreen
- Ip68/169k rating for up to 100 bar high pressure
- Maintenance-free, high resolution, and suitable for 24/7 operation
- Various monitoring concepts and online support available
Extra Information
Easy installation with one hole and one PO connection
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
