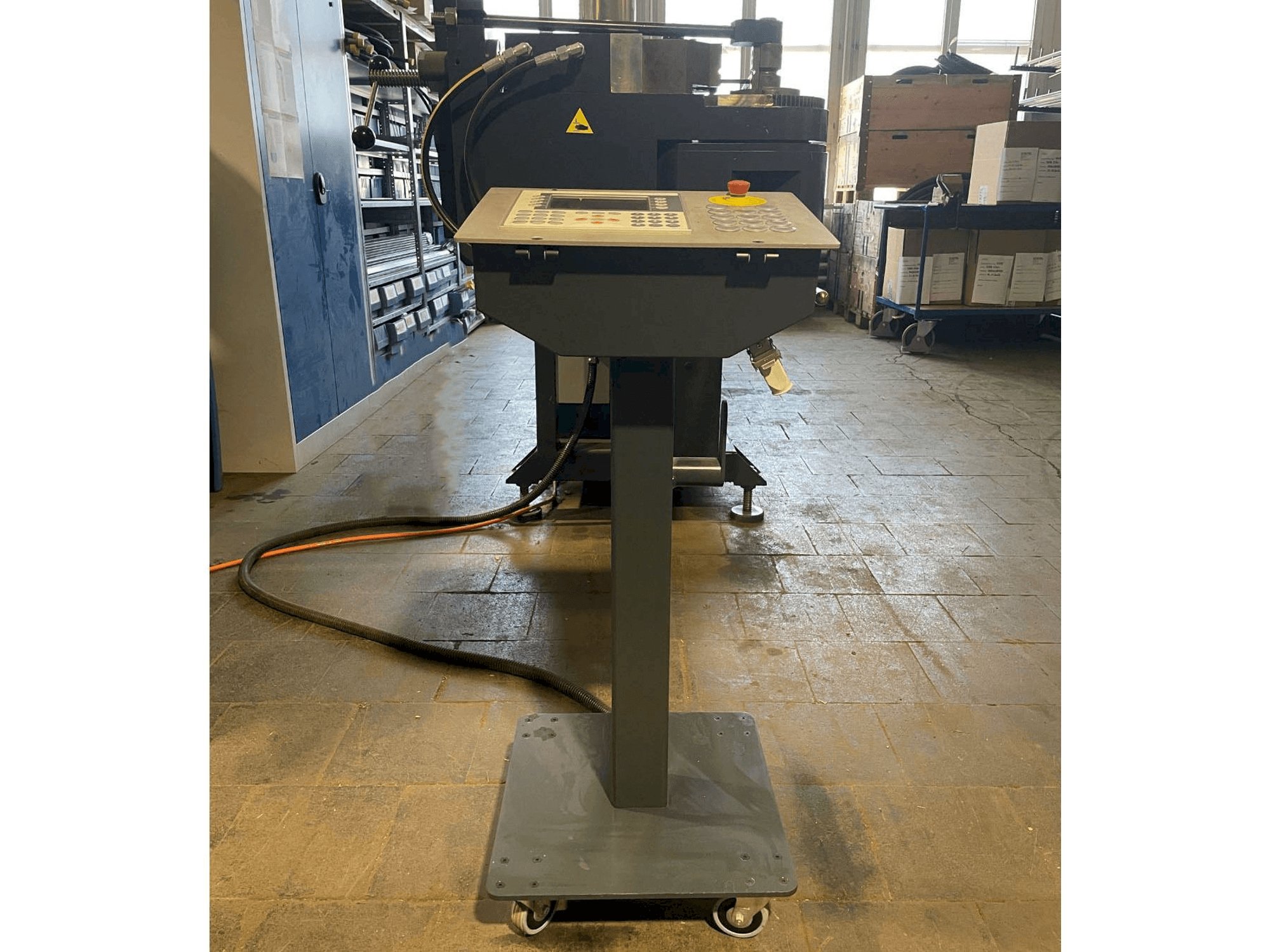

Thoman - FK50-3A-NCCH-BEN-THO-2018-00001

Machine Benefits

Qualitative Machine Benefits

• Hydraulically controlled drive, rapid-creep positioning
• Accuracy 0. 1° - max. Bending speed 45° sec (forward)
• Flexible shaft and pinion in one piece, no feather key connection
• Flexible shaft with double roller bearings, thus free from play, wear and maintenance (low) - flexible arm supported at the bottom
• Clamping cylinder on top adjustable clamping force - anti-clockwise bending direction feed axis:
• Drive controlled hydraulically - positioning: rapid-creep-stop - accuracy 0. 3 mm / max.
• Positioning: rapid-creep-stop
• Clamping function tube feed: - hydraulic - pipe clamping using standard collets - long-neck chuck enables the pipe to be released in the - slide rail area clamping function on the bending tool:
• Hydraulic - adjustable clamping force

Technical Machine Benefits

• Installed drive power 5. 5 k
• System pressure 250 bar
• Operating voltage 400 v 16
• Maximum pipe pull-in dimension 3800mm
• Length of machine bed 4500m
• Round tubes from 5 to 50 mm x 2. 9 mm steel
• Maximum bending radius ra max = 150mm
• Maximum bending angle 180° + 10° overbending
• Feed speed 300mm/se rotation axis:
• Drive controlled hydraulically
