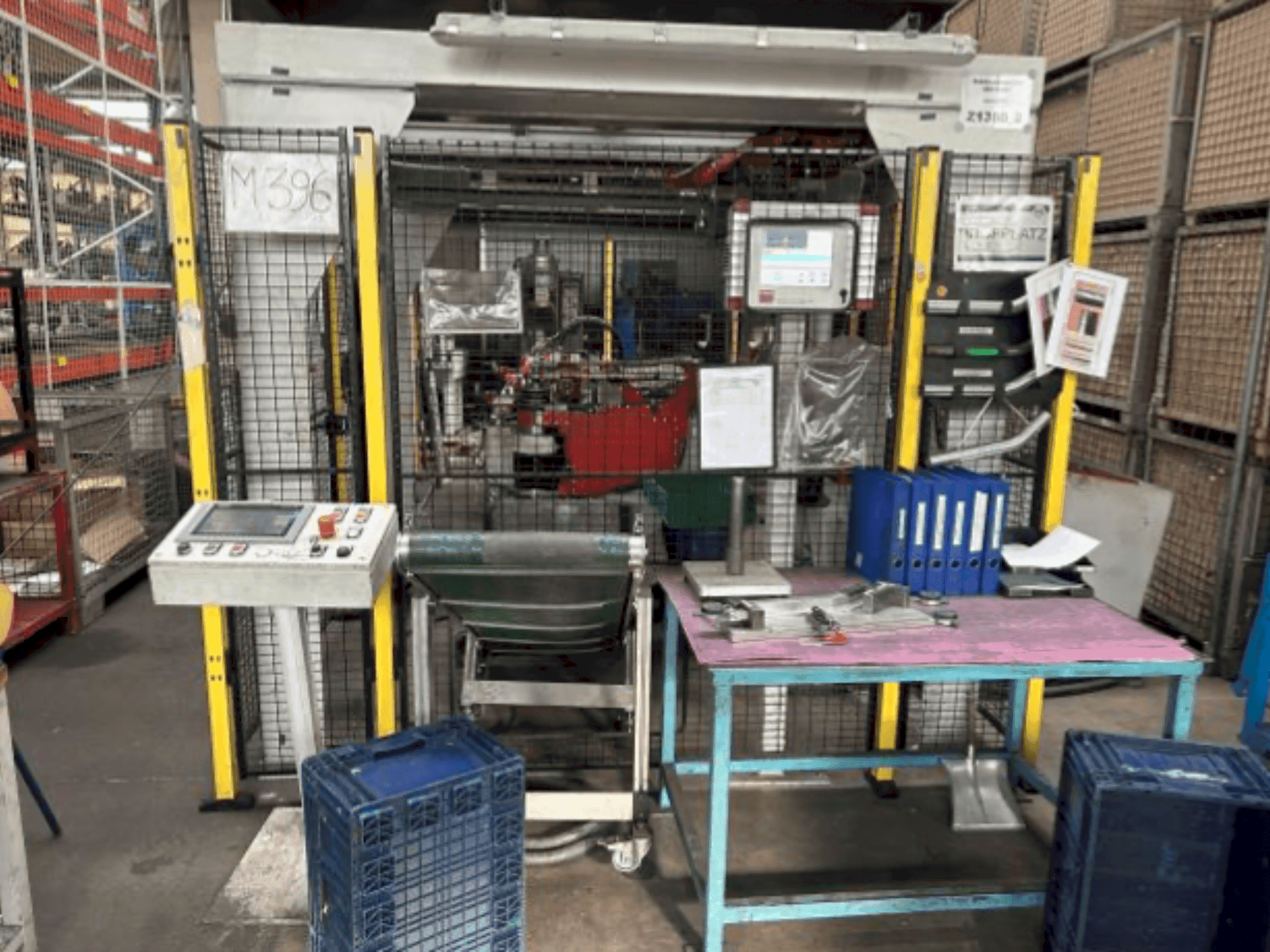

Transfluid - DB 650 ST-SPS DE-BEN-TRA-2017-00001

Machine Benefits

Technical Machine Benefits

• Operating voltage: 400 v ac 3n / pe / 50 hz
• Control voltage: 24 v dc
• Rated current: 40 a
• Main fuse: 80 a
• Protection class (control): ip 54

Extra Information

Machine Performance Loading + Handling for Pipe Lengths: 200 - 500 mm Capacity: 100 pieces for pipe-® 45 mm Length Measuring System (optional): Tolerance +/- 0.5 mm Round Steel Pipe: Up to ® 50 x 3.0 mm Round Stainless Steel Pipe: Up to ® 50 x 2.0 mm Square Steel Pipe: Up to 35 x 35 x 2.5 mm Max. Section Modulus: 5.0 cm3 Bending Angle: 180° + 10° Overbend Bending Speed: 36°/sec Repeatability Bending Axis: ‡ 0.1° Tube Insertion Length / Usable Length: 500 mm Radius Range: Max. 125 mm Bending Height: 1050 mm Bending Axis Drive: Electrohydraulic Drive Secondary Axes: Electrohydraulic
