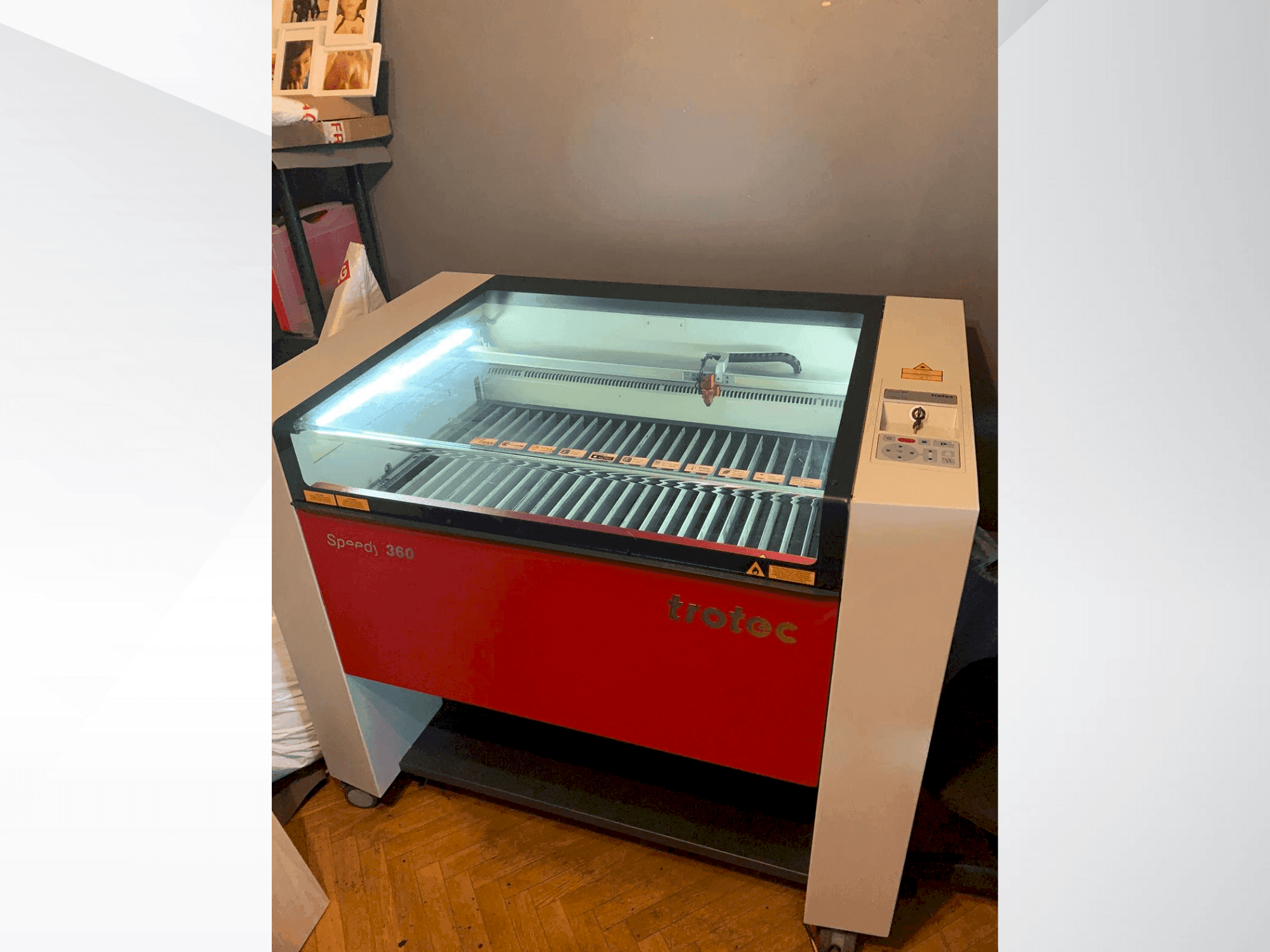

Trotec - Speedy 360GB-OTH-TRO-2016-00001

Additional equipment

• Gas-Kit Light: Control of external supplied compressed air with max. flow rate 150 l/min with max. 10 bar / Water Cooling Preparation: Additional parts to connect an external cooler

Machine Benefits

Technical Machine Benefits

• Max. Working area without camera: 813 x 508 mm / max. Working area with camera: 801 x 508 mm / max. Height of work piece: 210 mm with 1. 5 inch, 2. 0 inch lens / maximum material load: static up to 100 kg, dynamic up to 30 kg / max. Workpiece length cones: 550 mm / max. Workpiece diameter cones: 207 mm
• Working table: multifunctional table concept, rulers in mm or inches / aluminum cutting grid table / vacuum table: vacuum effect for fixation of thin or wavy materials
• Motors: brushless dc servo motors / encoder: incremental measuring system
• Max. Processing speed: 355 cm/s
• Max. Processing speed: 355 cm/s/ accuracy: +/- 0. 015 mm / addressable accuracy: 5 µm
• Interface: ethernet, optional wifi / software: ruby®
• Dimensions of machine (lxwxh): 1221 x 830 (790) x 1066 mm / weight (kg): approx. 235 to 250 kg
• Laser class: cdrh laser class 2 / ambient conditions: temperature +15° to +25° c, humidity 40% to max. 70%, not condensing / environment: dust free environment
• Minimum volume required: 350 m³/h
• Voltage & power consumption: 1 ~ ac 110-230v 50/60hz, approx. 1200 w to 1900 w
