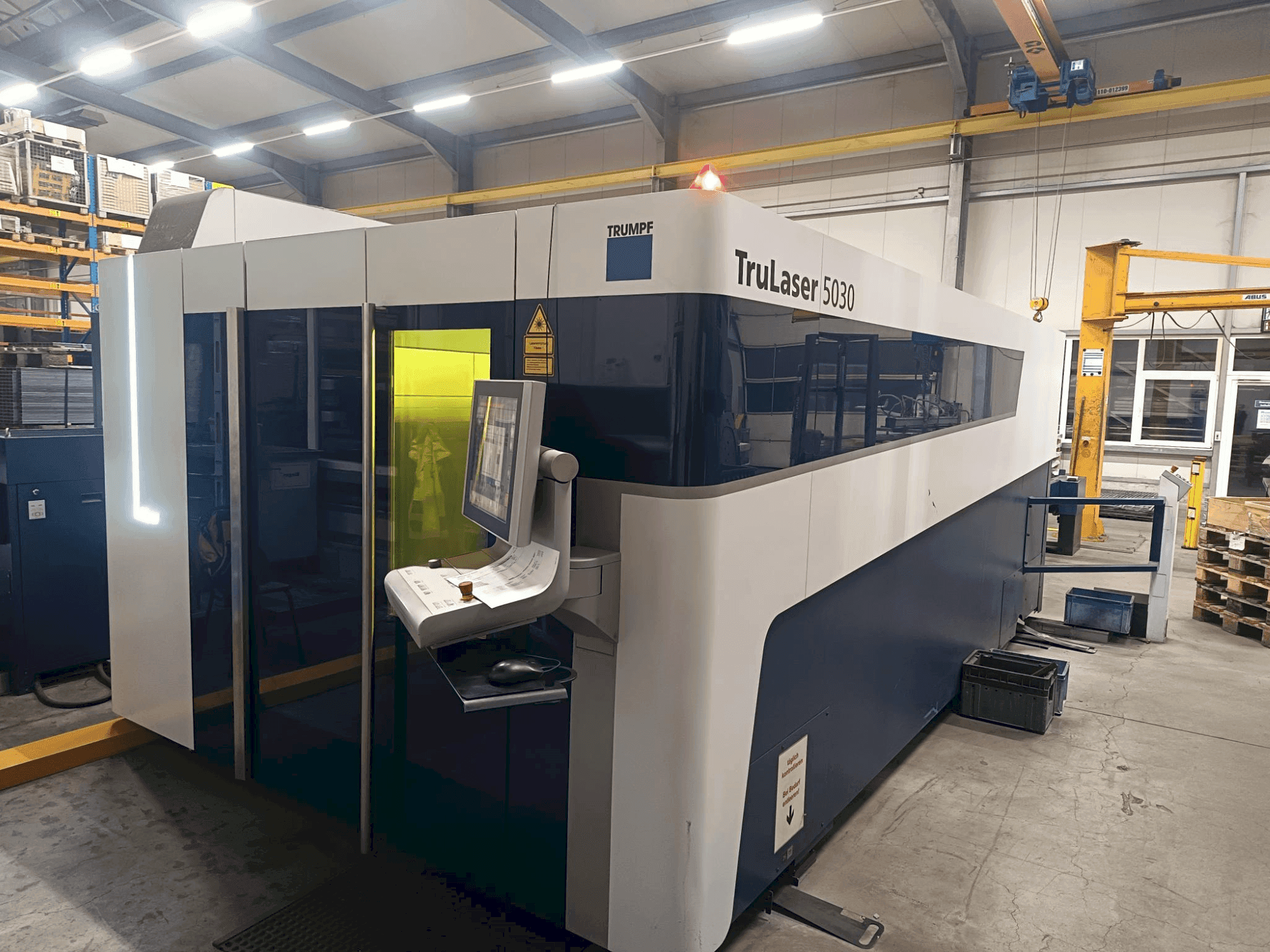

TRUMPF - Trulaser 5030 FiberDE-CUT-TRU-2013-00002

Machine Benefits

Technical Machine Benefits

• Trulaser 5030 (l56) documentation
• Machine software
• 1 additional postprocessor
• Trutops laser programming course

Extra Information

General Data Machine: Closed machine frame Torque drive combined with linear direct drive Closed beam guidance via fiber optic cable (LCC) Machine cooling unit (water-air) Integrated control cabinets with interior lighting Automatic pallet changer in the longitudinal direction 17* touch color screen Wide longitudinal conveyor belt TruDisk power supply via the machine Work area lighting Positioning Laser Guides: Spray direction PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Coupler cutting package (includes cutting data) Brass cutting package (includes cutting data) Transport and assembly device TRUMPF Laser: TruDisk 3001 solid-state laser with one LLK output Fiber optic cable according to standard layout Laser cooling unit (water-air) Excitation via Pump diodes Laser power control Subject to international export controls according to EC Dual-Use Regulation 428/2009 (lasers covered by 6A005) Cutting Head: Universal cutting unit with fully adaptive lens system Single-head cutting strategy Protective glass to protect against lens contamination ControlLine: Height control and outer sheet edge trimming Control: SINUMERIK 840D SL control system Simple and advanced workshop programming Fast re-production Integrated technology data Automatic shutdown Programmable cutting gas/pressure selection FastLine, FlyLine, AdjustLine Data Transfer: USB interface RJ-45 network connection Safety: CE marking Light barriers Multi-chamber extraction system Compact dust extraction system Machine enclosure, certified safety glass, door on the right Electric retractable roof Voltage and Frequency: Voltage: 400 V Frequency: 50 Hz Color: Standard white - blue RAL design 250 20 20 - blue NCS S 0505 RBOB - white Solid-state Laser: TruDisk 5001 with 1 air cooler outlet Additional Features: Nozzle changer BrightLine fiber DeteciLine: Precise sheet position detection Clamping clamps (2 pieces) Integrated camera (Full HD) for process monitoring with monitor interface Individual oil feed into the network ClitMaster Gompact retrofit capability
