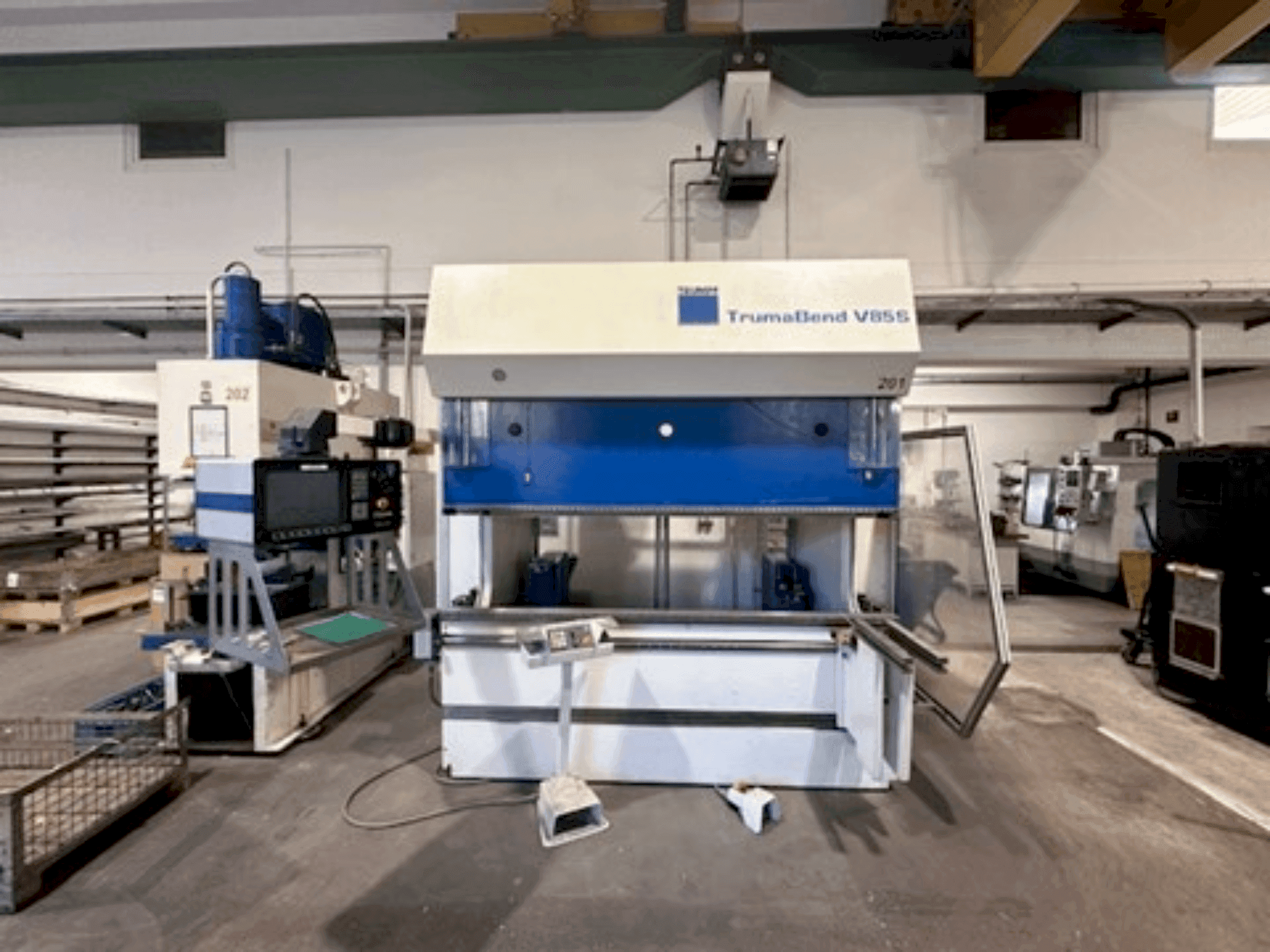

This 6-axis TRUMPF TrumaBend V85S press brake was manufactured in 1998. It features a bending length of 2,550 mm, an 850 kN bending force, and a 6-axis back gauge. The Delem 65 CNC control enhances precision, while the electro-hydraulic twin cylinder drive ensures robust performance. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85S machine we have for sale. Contact us for more information about this machine.
Resumen
- marca: TRUMPF
- año: 1998
- MODELO: TrumaBend V85S
- tipo de aplicación: Doblado
- Ubicación: Austria
- tipo de máquina: Plegadora
Información técnica - TRUMPF TrumaBend V85S
Dimensiones
- Peso de la máquina: 8600 kg
Especificación Técnica
- Longitud de plegado: 2550 mm
Información adicional
Additional equipment
- Extended Installation Height and Stroke: Additional 150 mm each
- 2nd Foot Switch
Machine Benefits
Technical Machine Benefits
- Drive type: electro-hydraulic twin cylinder with independent y1/y2 movement
- Power requirements: 11 kw / 415 v / 50 hz
- Design: down-stroking with dual cylinder electro-hydraulic ram drive via proportional valves
- Inclination of beam (y1/y2): +10 mm
- Bending force: 850 kn // gap between columns: 2260 mm // throat depth: 410 mm // stroke length: 215 mm // open height: 385 mm
- Bed width: 120 mm
- Ram measurement: incremental with deflection compensation
- Tool holders: self-centering top tool holder, hardened bottom tool holder
- Hydraulic tool clamping: hydraulic clamping for both top and bottom tools
- Safety features: safety screens, light barriers, single/double break modes // front support brackets: two quick-adjustable brackets
Extra Information
Back Gauge: CNC-controlled ‘X’ and ‘R’ axis back gauge with safe 2-finger adjustment X-axis Back Gauge Travel: 600 mm Maximum X Distance: 860 mm R-axis Vertical Travel: 250 mm Back Gauge Travel Speed: 500 mm/sec R-axis Speed: 300 mm/sec Z1/Z2 Axis: CNC-controlled, asymmetric finger adjustment Working Speeds: Approach Speed: 200 mm/sec Operation Speed: 1–10 mm/sec Return Speed: 135 mm/sec
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
