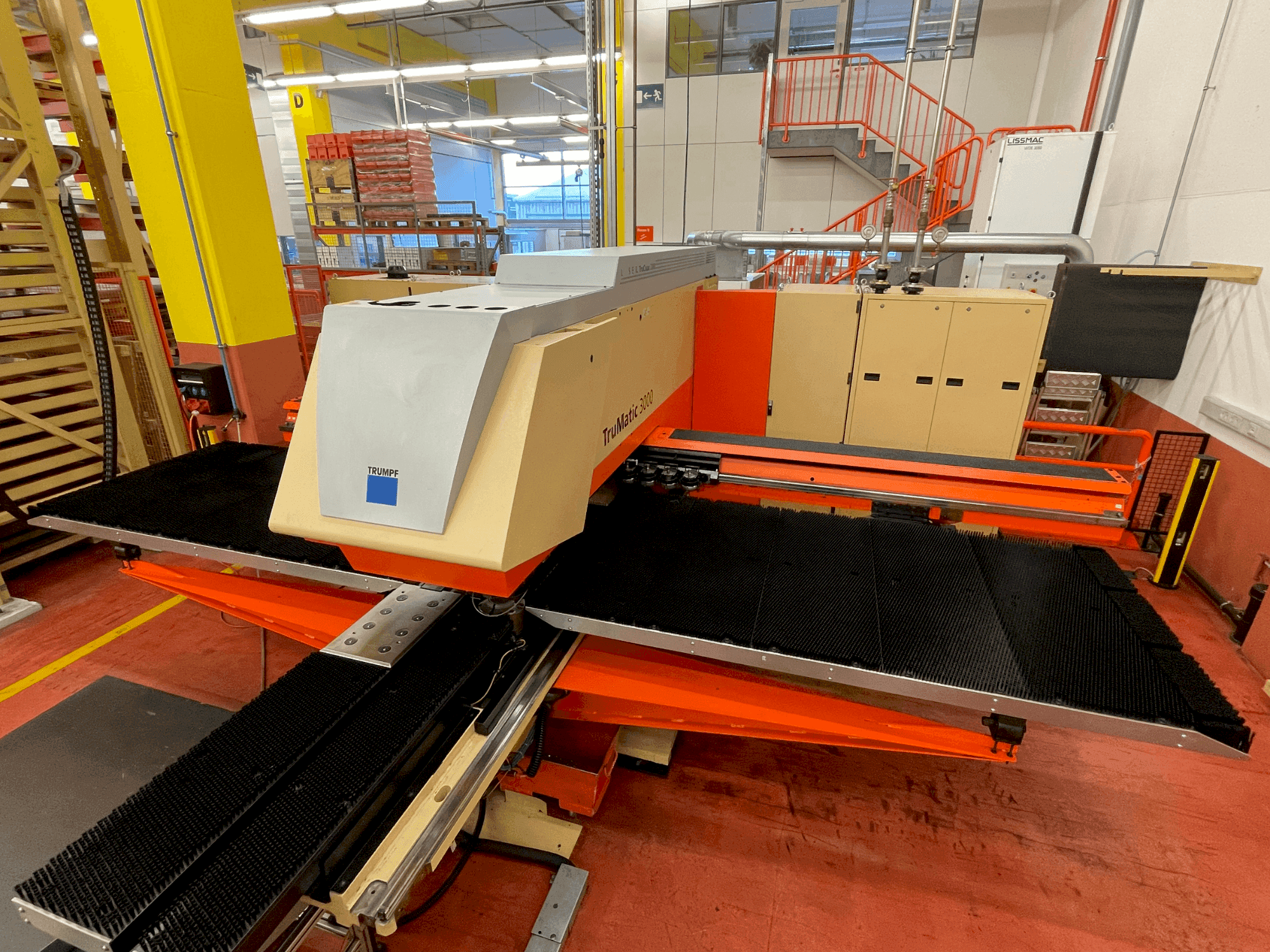

TRUMPF - TruMatic 3000DE-BEN-TRU-2009-00001

Additional equipment

• Chip container // TRUMPF laser TruCoax 2000 CO2 laser // Cooling by means of plate heat exchanger
• Linear magazine with 19 tool positions and 2 clamps // Parts flap 300 mm x 500 mm // Good parts box
• Laser cutting head with 7.5’ lens // Quick-change cutting head system // FocusLine, NitroLine, SprintLine, ContourLine
• Hydraulic punching head // Mono tool holder // Tool spray lubrication // Punch slug extraction // Multi-beam light barriers
• Compact dedusting system // 38 RTC cassettes including die plate // Quickset
• TRUCOAX2000V4
• Clamping force 3200 KN / Dosing stroke 155 mm / Screw diameter: 40 / Column spacing: 720 x 720 mm / SGM operating hours pump: 28,422 h / Machine cycles: 1,274,782 / Pump motor output: 5.5 KW / Previous use of material: Makrolon clear / PC / Documentation available in paper form in German

Machine Benefits

Technical Machine Benefits

• X-axis working area: 2500 mm // y-axis working area: 1250 mm
• Max. Sheet thickness: 4 mm // max. Punching force: 165 kn
• Number of tools: 19 - 190 tools with multitool // max. Punching speed: 600 strokes/min
• Stable, easily accessible c-frame // coordinate guidance for high-precision machining // drives with maintenance-free three-phase servomotors
• Repositioning device with programmable hold-down device // brush tables // programmable cutting gas pressure
• 360° rotation of all tools // tool length compensation // adaptive stroke calibration // deburring and rolling technology
• Extended machine equipment // vibration-damped installation
• Offer consisting of arburg allrounder 720 a injection molding machine with automation / 1st kuka robot removal handling/ 2nd kuka robot (orange)/ ult suction unit/ slider milling and cleaning station/ farrag dryer

Extra Information

Beam on: 13485 hours Laser on: 49048 hours Max. workpiece weight: 120 kg Max. passage height: Punching mode 35 mm, Laser operation 22 mm Max. speeds: X-axis 90 m/min, Y-axis 60 m/min, Simultaneous 108 m/min Tool change time: Single tool approx. 4.4 sec, MultiTool approx. 2.2 sec Max. punching diameter (single stroke): 76.2 mm on all tool positions Max. forming height: 25 mm Control system: Open control system based on Bosch PNC-P Operating panel with 15’ TFT touch colour screen Programme management, Online help / realisation via VPN Diagnostic functions incl. laser logbook Integrated technology data Teleservice via VPN Data transmission: USB interface and network connection Network connection incl. installation by Teleservice Ethernet: 10 MBit/s or 100 MBit/s Network connection: RJ45 or BNC (via additional adapter) Network protocols: NetBeui, TCP/IP or NFS
