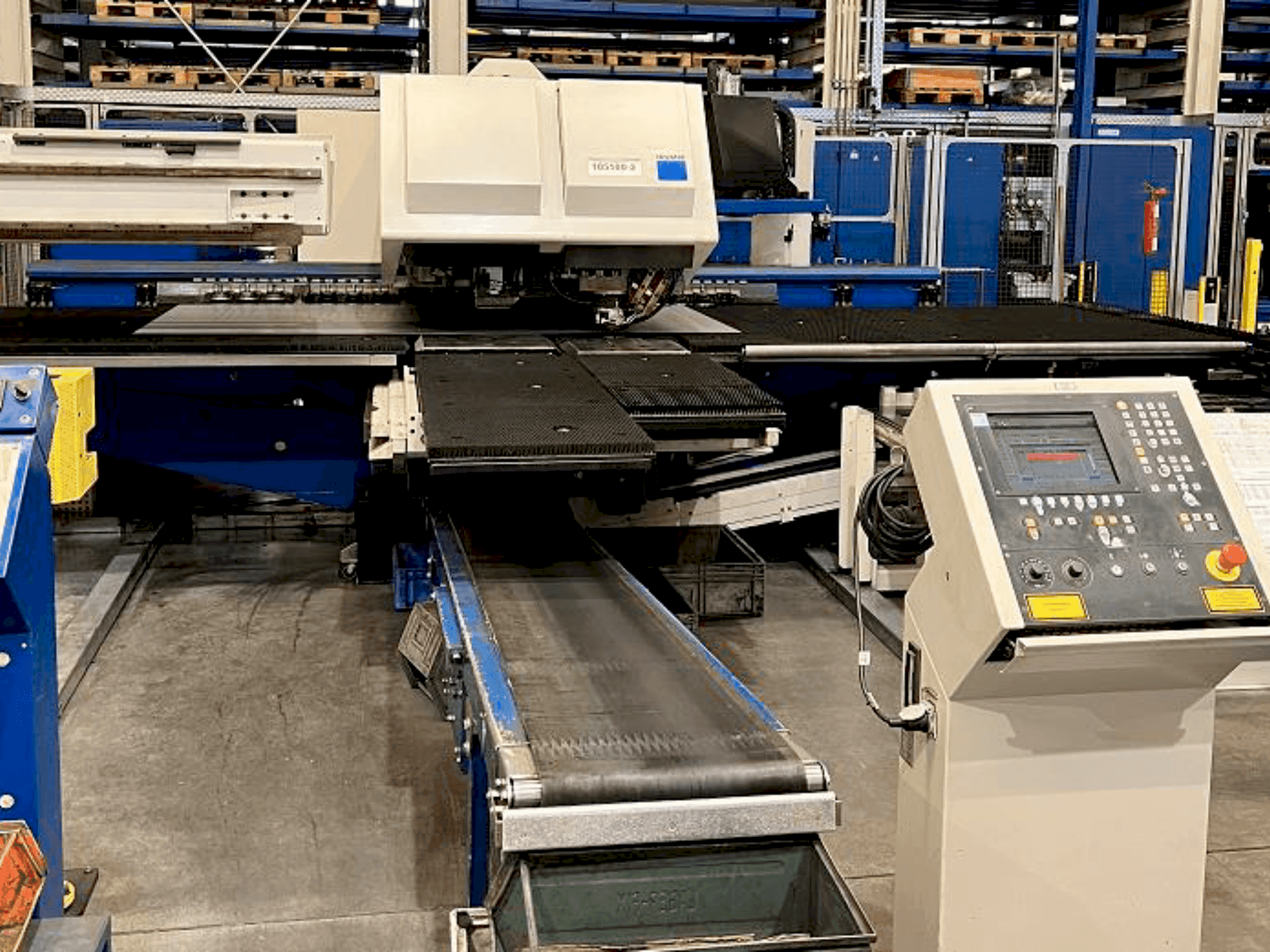

TRUMPF - Trumatic 6000 L + SheetmasterDE-LAS-TRU-2005-00005

Machine Benefits

Qualitative Machine Benefits

• Trl sheetmaster 1606, trumalift sheetmaster, (included in sheetmaster) unloading monitoring system trumagrip 3000x1500

Technical Machine Benefits

• Working area: 2585 x 1650 mm, sturdy c-frame
• Coordinate guide with integrated linear magazine, 21 places for tools and 3 clamping claws, 3 clamping claws- drives: maintenance-free three-phase servomotors
• Programmable hold-down device for repositioning, sensor-monitored parts chutes 500 x 500 mm for punching and laser station, print cylinder on laser chute
• Laser unit: high-frequency excited co2 laser tlf 2000, vibration-insulated, integrated in machine frame, incl. Cooling unit and laser control dias 3, hi-las® high-pressure cutting, contourlas® for the production of small perforations, programmable cutting gas pressure setting, laser cutting head: 5" lens, quick-change device, apc distance control, lens monitoring sensor system, additional cutting head with 7. 5" lens
• Punching head: hydraulic mono tool holder, 360° rotation for all tools, automatic tool length compensation, tool spray lubrication, 2nd lubricant holder, punching slug extraction system
• Sinumerik 840d control, tft color screen 10. 4", simple operation, online help, diagnostic functions, maintenance logbook, technology data, order tables, teleservice, 3. 5" floppy disk drive, rj45 network connection
• Safety: multi-beam light barriers, quick shut-off hydraulics, suction and compact dust extractor, protective device against stray radiation on the cutting head
• Configuration: voltage 400 v, frequency 50 hz, electrical regulation iec, standard color ral9002/5010, laser tlf 3200 incl. 9" cutting head for stainless steel
• Functions: autolas plus multitool, multl bend function tapping, signing/quick beading function rolling technology, softpunch
• Repositioning cylinder

Extra Information

3.2 kW laser
