TRUMPF - Trumatic L3050DE-LAS-TRU-2003-00004
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas para chapa

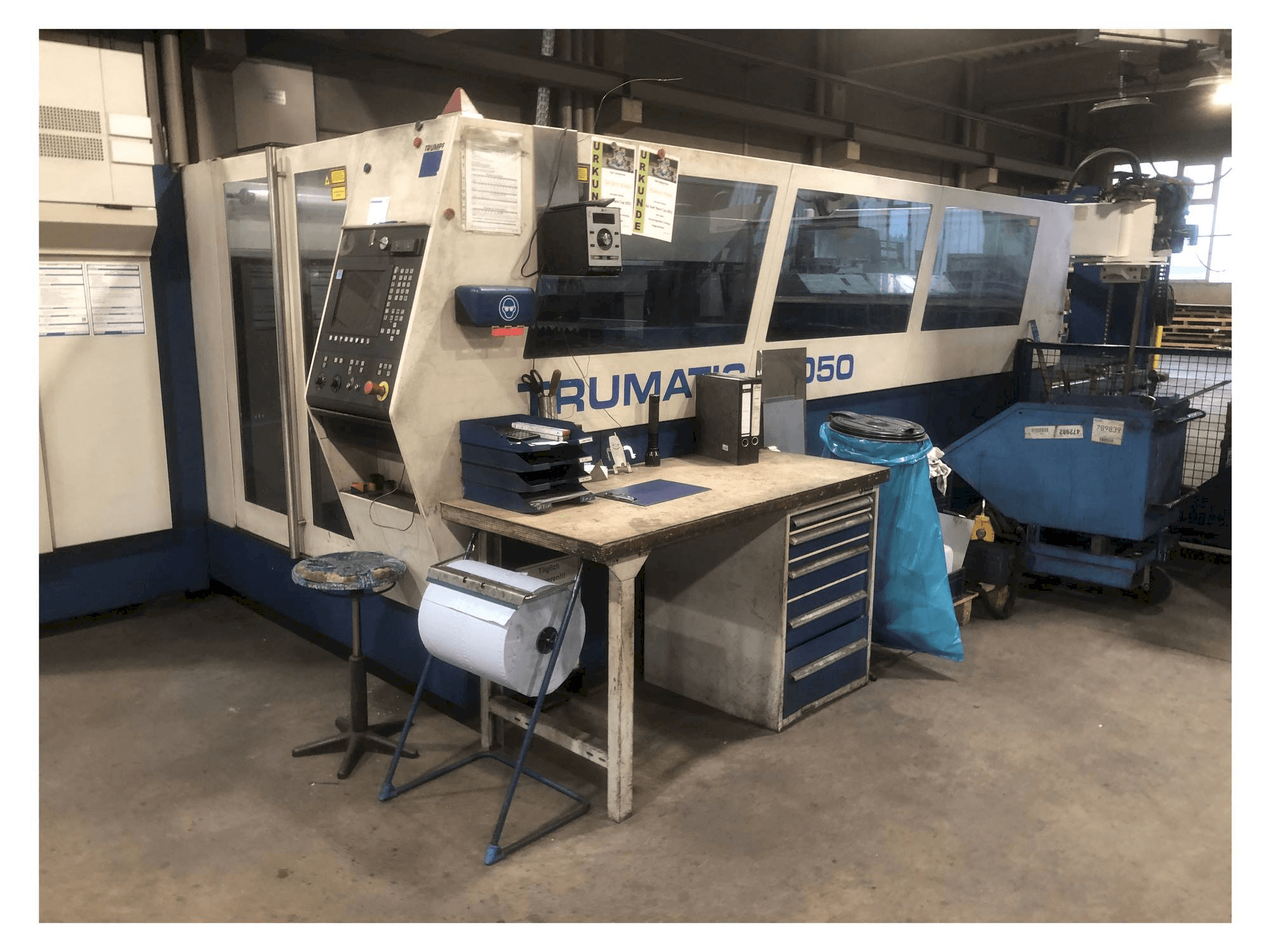

- Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine
This Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine was manufactured in the year 2003. It is equipped with a TRUMPF CNC SIEMENS SINUMERIK 840 D control unit and has 3 axis. The machine has a maintenance contract with Trumpf and is consequently in good condition. A quartz tube replacement was carried out in 2022/2023.
Resumen
- marca: TRUMPF
- año: 2003
- MODELO: Trumatic L3050
- tipo de aplicación: Corte
- Ubicación: Alemania
- tipo de máquina: Máquina de corte láser CO2
- Marca de unidad de control: TRUMPF
Información técnica - TRUMPF Trumatic L3050
Unidad de Control
- Marca del control: TRUMPF
- Modelo del control: Sinumerik 840D
Recorrido
- Número de ejes: 3
- Recorrido eje X: 3000 mm
- Recorrido eje Y: 1500 mm
- Recorrido eje Z: 100 mm
Información adicional
Additional equipment
- 1x double trolley
- 1x storage platform
Machine Benefits
Qualitative Machine Benefits
- Cutting gas pressure setting programmable laser cutting head with 5" lens and laser cutting head with 7. 5" lens
- Plasma sensor system pms
- Cutting head quick-change device
- 7. 5" lens
- Fast processing with sprint lasers
- Automatic sheet outer edge detection
- Capacitive height control (dias)
- Programmable power cycles
- Process control system (pcs)
- Workshop programming tops 100 lite
Technical Machine Benefits
- Automatic pallet changer
- Laser unit: c02 laser, high-frequency excited, cooling unit,
- Longitudinal conveyor belt for small parts/waste
- Compressed air cutting
- Laser power control
- Drives: gantry drive in combination with linear direct drives
- Contourlas for the production of small holes
- Microweld
- Liftmaster
- Hl-las high-pressure cutting
Extra Information
Additional laser cutting head with 3.75" lens tr Additional laser cutting head with 9" lens // Position laser diode // Automatic focus position adjustment Autolas P/us // Oil spraying device for safe thick sheet processing // Automatic switch-off // Cross conveyor belt with container // Machine has a maintenance contract with Trumpf // Quartz tube replacement was carried out in 2022/2023
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
