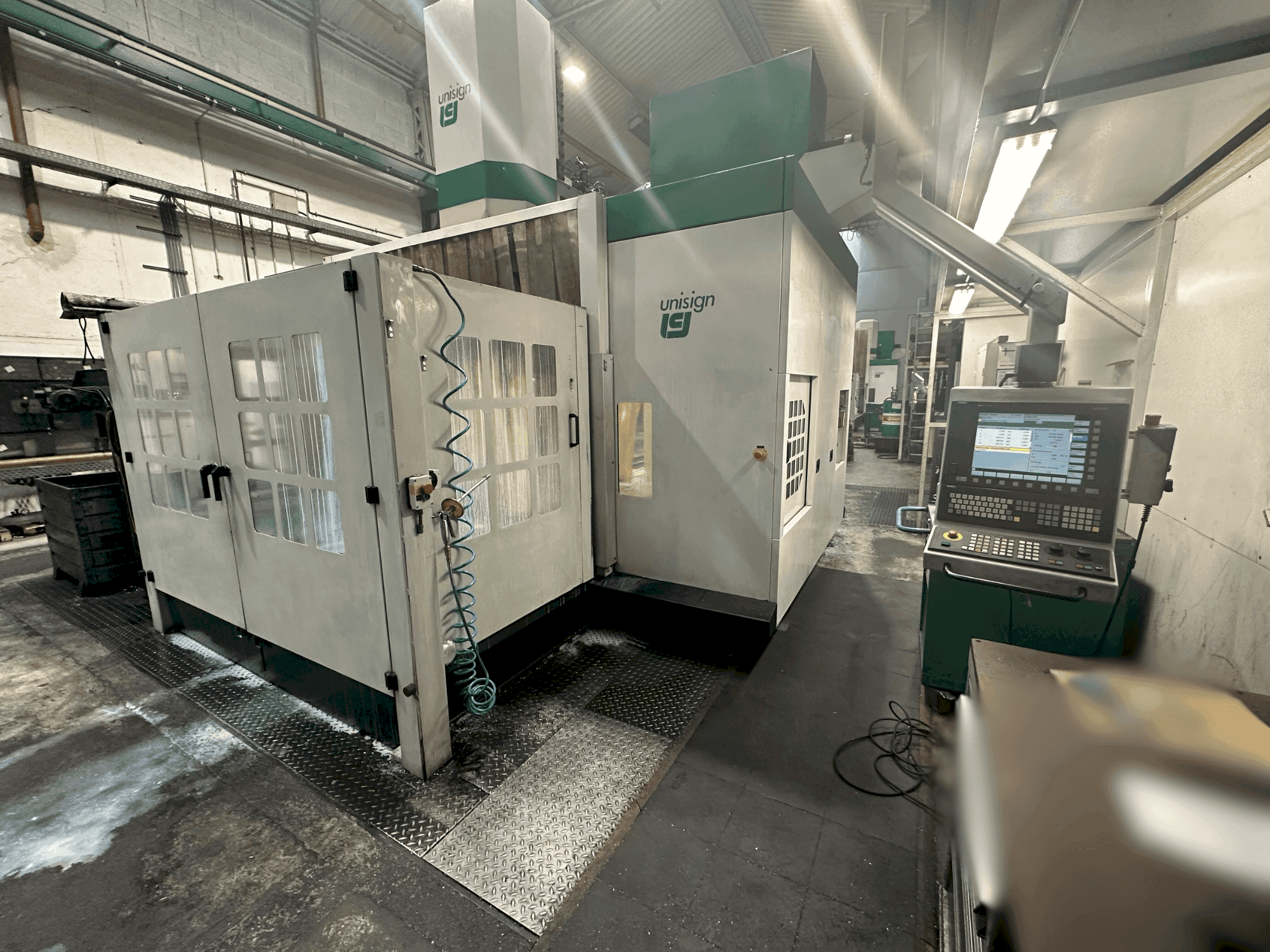

This Unisign UNIPORT 6000 was manufactured in 2005. A robust universal machining center, it features a large work area with X-axis travel of 3,000 mm and Y-axis travel of 2,500 mm. It boasts rapid traverse speeds up to 30,000 mm/min and a high-capacity tool magazine with 30 positions. The spindle supports up to 6,000 RPM and 36 kW power, making it ideal for heavy-duty machining. For more information about this universal machining center, please reach out to us.
Resumen
- marca: Unisign
- año: 2005
- MODELO: UNIPORT 6000
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado universal
Información técnica - Unisign UNIPORT 6000
Dimensiones
- Profundidad de la máquina: 8000 mm
- Altura de la máquina: 4400 mm
- Peso de la máquina: 45000 kg
- Largo de mesa: 2000 mm
- Carga de mesa: 1500 kg
- Ancho de mesa: 2170 mm
Recorrido
- Recorrido eje X: 3000 mm
- Recorrido eje Y: 2500 mm
- Recorrido eje Z: 1000 mm
Especificación Técnica
- Número de herramientas: 30
- Potencia del husillo: 36 kW
- Velocidad del husillo: 6000 RPM
- Tamaño del cono: HSK 100
Información adicional
Additional equipment
- Switch cabinet: 98276h /Program active: 51778h/ Spindle, feed or tool change: 12808h /Spindle and feed without tool change: 10690h
Machine Benefits
Qualitative Machine Benefits
- Positioning accuracy: ±0. 001° (c-axis drive)
- Repeatability: ±0. 0005° (c-axis drive)
- Measurement system: direct (presumably rod type)
- Maximum speed: 10 min⁻¹
Technical Machine Benefits
- Max torque: 720 nm
- Max drilling pressure: 16000 n
- Tool change time: 10 seconds
- Positioning tolerance: ±12 µm
- Repeatability: ±8 µm
- Electrical connection: 400 v / 3 ph / 50 hz
- Power consumption: 55 kva
- Compressed air: 6 bar, 20 l/min
- Interference circle: 2500 mm
- Max. Load on the faceplate: 10 tons
Extra Information
Turning package on Uniport 6000, consisting of: Vertical turning station 70 kW / 250 rpm / 33,000 Nm High-precision C-axis operation Turning attachment head with HSK 100 tool holder Pick-up station for turning attachment head Enclosure with access doors (open at the top), partition wall 2,000 mm faceplate® with 12 T-slots, 8 T-slots (half-length and star-shaped), and 4 locking slots for the claw box (claw box not included) Column longitudinal travel X: from 3,000 to 12,000 mm • Column passage width: from 1,500 to 3,000 mm • Cross slide travel Y: from 1,500 to 3,000 mm 0 0 0 m m • Table width: from 1,170 to 2,670 mm • Column clearance: 1 , 1 0 0 or 1 , 3 0 0 m m • Spindle slide stroke Z: 8 0 0 or 1 , 0 0 0 m m
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
