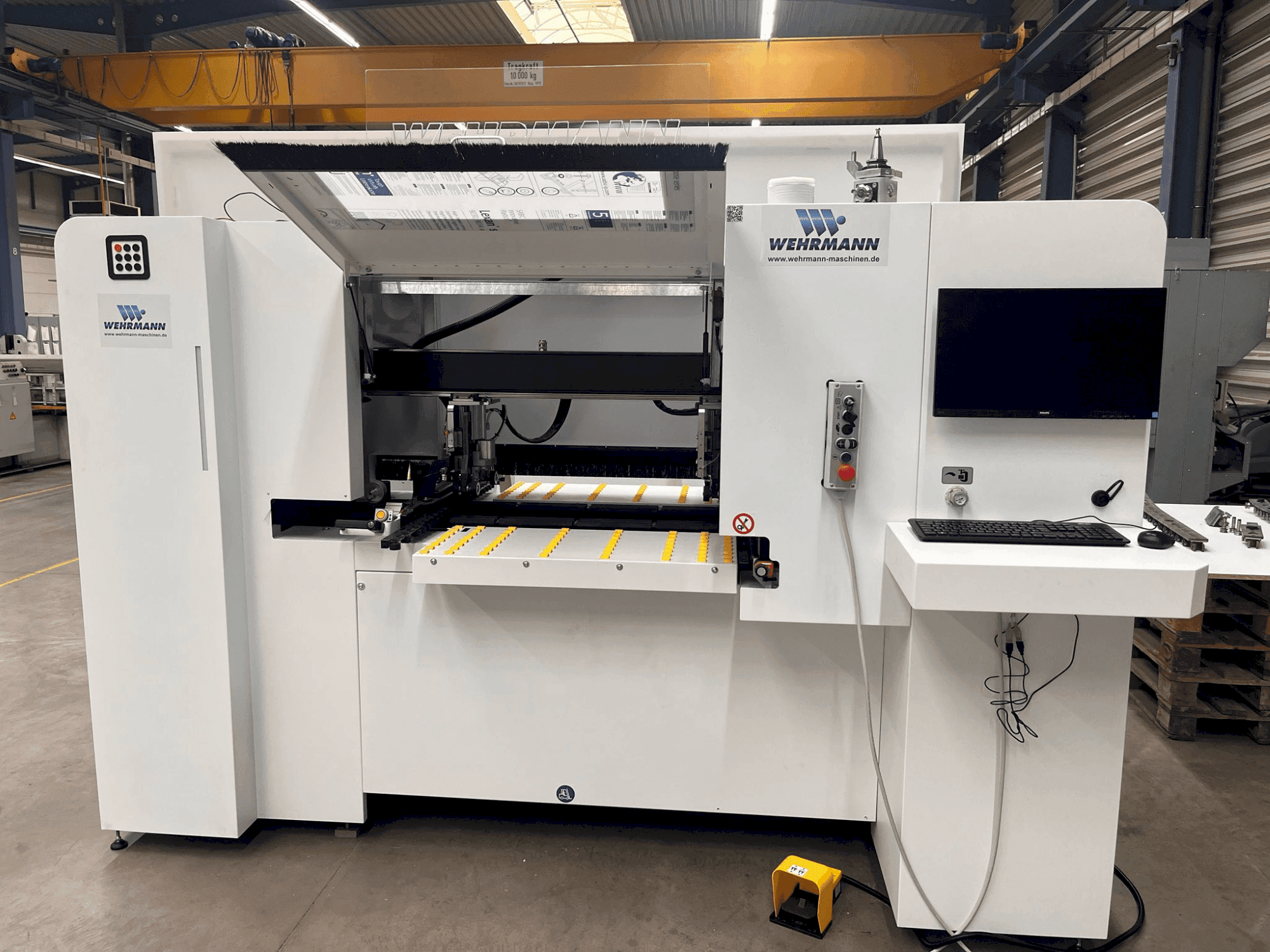

VITAP - K3DE-CNC-VIT-2023-00001

Additional equipment

• 20" LCD TFT monitor
• Industrial PC
• WSC user interface with Lister, parametric tools, and parametric setup
• Graphical CAD programming TPA EDI32, basic version
• USB port
• Storage of all files
• Macro programming
• Import of DXF files
• CE compliant

Machine Benefits

Qualitative Machine Benefits

• A showroom machine never used

Technical Machine Benefits

• Feed speed: 25 m/min
• Automatic 4-position tool changer
• Max. Horizontal tool Ø: 12 mm
• Max. Vertical tool Ø: 35 mm
• Motor: 1. 7 kw
• Number of independent vertical spindles: 12 // number of independent horizontal spindles on the x-axis: (2+2)
• Max. Horizontal drilling depth on x and y axes: 35 mm // max. Vertical drilling depth: 43 mm // number of horizontal drilling spindles on the y-axis: (2+2)
• Electro spindle: 5 kw with iso30 taper (rpm 12000–24000)
• Max. Workpiece dimensions: y 1250 mm, z 50 mm
• Min. Workpiece dimensions: x 270 mm, y 150 mm, z 3 mm

Extra Information

Axes: 3 controlled axes (X, Y, Z) X-Axis: DDT feed system Y-Axis: Drilling head travel path Z-Axis: Drilling operations Optional Upgrades (at Additional Cost): Tool set for production startup Tool holder ISO 30 / ER 32 Lubricant cartridges PC with a more powerful processor Additional pneumatic upper pressure Free Nesting System Barcode scanner Post-processor for MPR files Office software license TPA Front and rear roller support Narrow part guides Optional clamp opening for 60 mm thickness Angle gear options CAD design software for furniture construction
