- ➤ Used Weeke Optimat BHP Vantage 34M | CNC Router For Sale

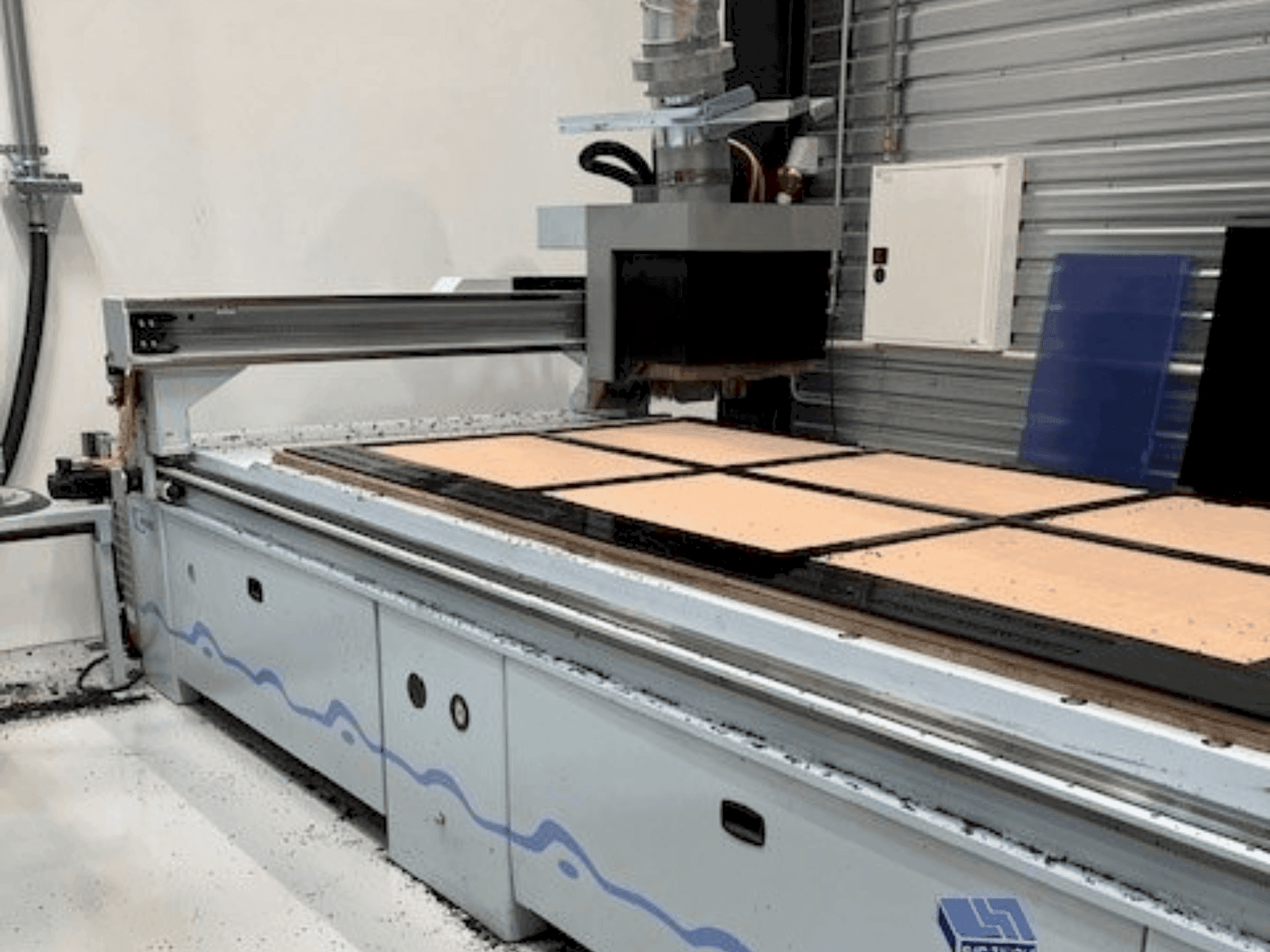

This 3-axis Weeke Optimat BHP Vantage 34M was manufactured in 2008. Ideal for precision CNC routing, this machine offers robust construction and reliable performance. If you are looking to get high-quality routing capabilities, consider the Weeke Optimat BHP Vantage 34M machine we have for sale. Contact us for more information.
Resumen
- marca: Weeke
- año: 2008
- MODELO: Optimat BHP Vantage 34M
- tipo de aplicación: Mecanizado CNC
- Ubicación: Dinamarca
- tipo de máquina: Router CNC
Información técnica - Weeke Optimat BHP Vantage 34M
Recorrido
- Número de ejes: 3
- Recorrido eje X: 3780 mm
- Recorrido eje Y: 1951 mm
- Recorrido eje Z: 155 mm
Información adicional
Machine Benefits
Technical Machine Benefits
- Work table dimensions: 3100 x 1550 mm
- Max workpiece thickness: 80 mm
- Design: stable gantry design with dust-protected linear guide system
- Drive technology: maintenance-free motors and automatic central lubrication
Extra Information
Tools Drilling Unit Specs: Spindle Speed: 1500 - 7500 rpm Drive Power: 2.7 kW Max Drill Diameter: 35 mm Milling Spindle Specs: High Spindle Speed: 1250 - 24000 rpm Max Power: up to 7.5 / 9 kW in continuous/intermittent operation (S1/S6-50%) Control Unit Control System: Modern PC-based control Hardware: Operating System: Windows XP Embedded TFT Flat Screen: 17 inches Connectivity: USB, EtherNet 10/100 MBIT RJ45 Table Matrix Table: 10'/5', with grooves for templates and vacuum suction cups Vacuum System: 500/600 m³/h, 50/60 Hz Finally, the machine offers a comprehensive software suite for CNC programming and operation, including woodWOP and 3D NC simulation capabilities.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
