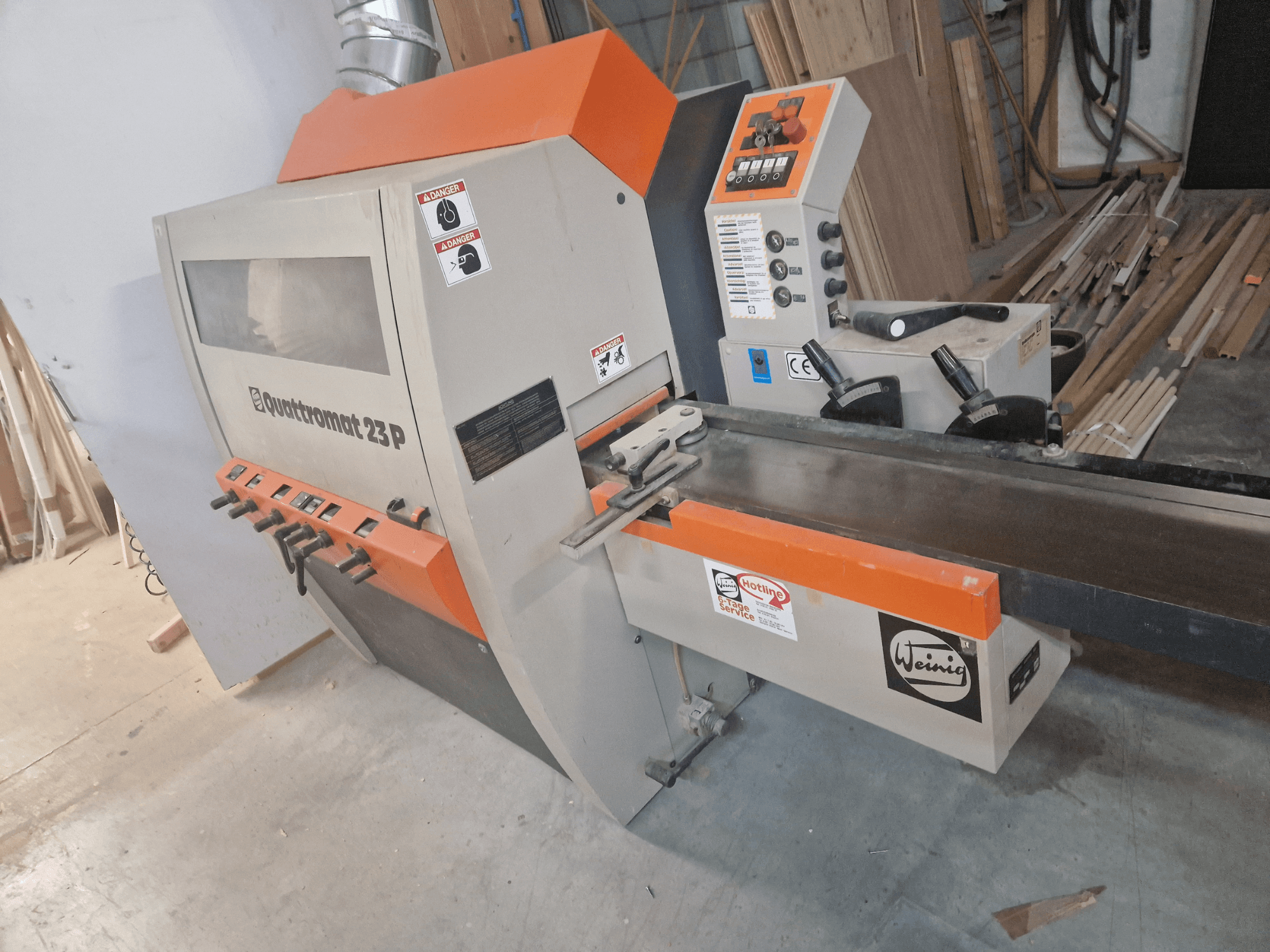

WEINIG / DIMTER - WEINIG QUATTROMAT 23 PDE-MIL-WEI-1999-00001

Working width: 13–230 mm

Working height: 6–120 mm

Number of spindles: 4

Motor power (planing spindle): 4–7.5 kW (5.5–10 hp)

Motor power (vertical spindles): 5.5–11 kW (7.5–15 hp)

Motor power (upper spindle): 4–11 kW (5.5–15 hp)

Motor power (feed): 1.5 kW (2 hp)

Spindle diameter: 40 mm

Tool swing of throat spindles: 125–200 mm

Spindle adjustment range (axial): 30 mm

Dressing spindle adjustment range: 5 mm

Feed speed: 8 m/min

Feed roller diameter: 140 mm

Feed roller width: 2 × 50 mm

Outfeed table roller width: 50 mm

Adjustment range for dressing table and jointing ruler: 10 mm

Right stop height: 60 mm

Planing table length: 2 m
