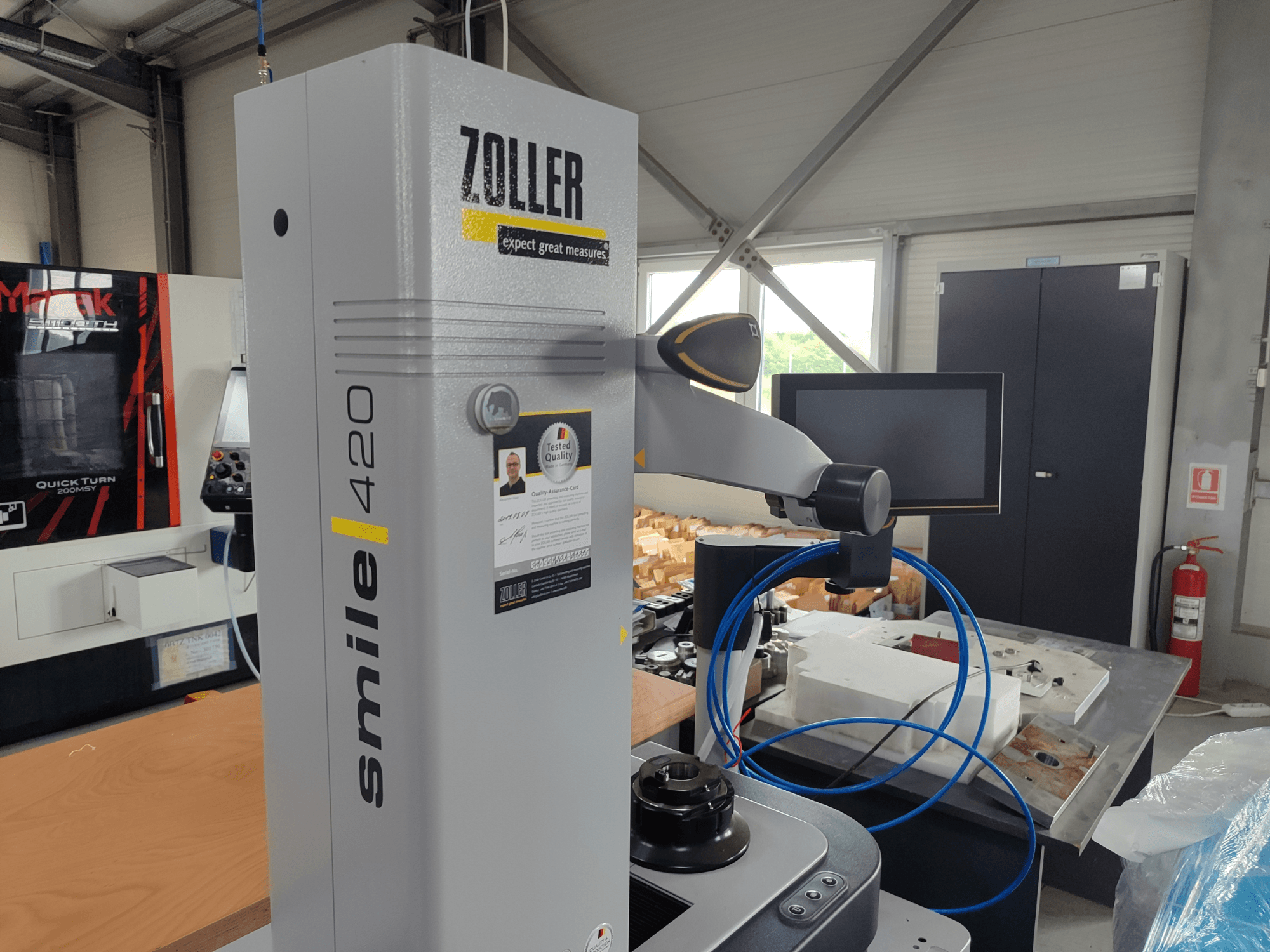

Zoller - SMILE PILOT 1,0 RO-MEA-ZOL-2019-00001

Additional information

• Machine Weight: 175 kg

• Dimensions of Machine (LxWxH): Provided height is 1620 mm

• Measuring system: Image processing technology Pilot 1.0

• Length Z-axis: 400 mm

• Radius X-axis: 200 mm

• Diameter D: Ø400 mm

• Snap gauge D1: Ø100 mm

• Concentricity: 2 µm

• Setting accuracy: 2 µm

• Display accuracy: 1 µm

• Repeating accuracy: 2 µm

• Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated

• Electrical Data (Pilot 1.0):

• Voltage: 115–230 V

• Frequency: 50/60 Hz ±2%

• Power consumption: 230 VA

• Power input: 1000–2000 mA

• Fuse: F6A (slow)

• Operating humidity: 10–95% (non-condensing)

• Measurement humidity: 80% (non-condensing)

• Noise level: <45 dBA during normal operation, up to 53 dBA with printer
